15.0_TIRE LIFT
A conventional rim is a wheel of a vehicle with rim made of steel or light aluminium, with a center hole and a drop center
near the edge of the rim.
A reverse mount rim is a wheel of a vehicle with rim made of steel or light aluminium, with a center hole and a drop
center near the bottom patch of the rim.
- Using a special tool, remove any wheel weights on the rim, being particularly careful not to damage the rim.
- Make sure none of the tools are in the work zone of the LIFT so that it is free to position the wheel correctly.
- Position the wheel on the spindle using the LIFT, as follows:
- Move the wheel on the lift platform of the machine, in vertical position with the outside face of the tire facing left.
- Using the lifting pedal, raise the platform and the wheel up to the fl at position and align the center hole of the
wheel with the spindle fl ange.
- Lower the LIFT and center the anti-rotation device.

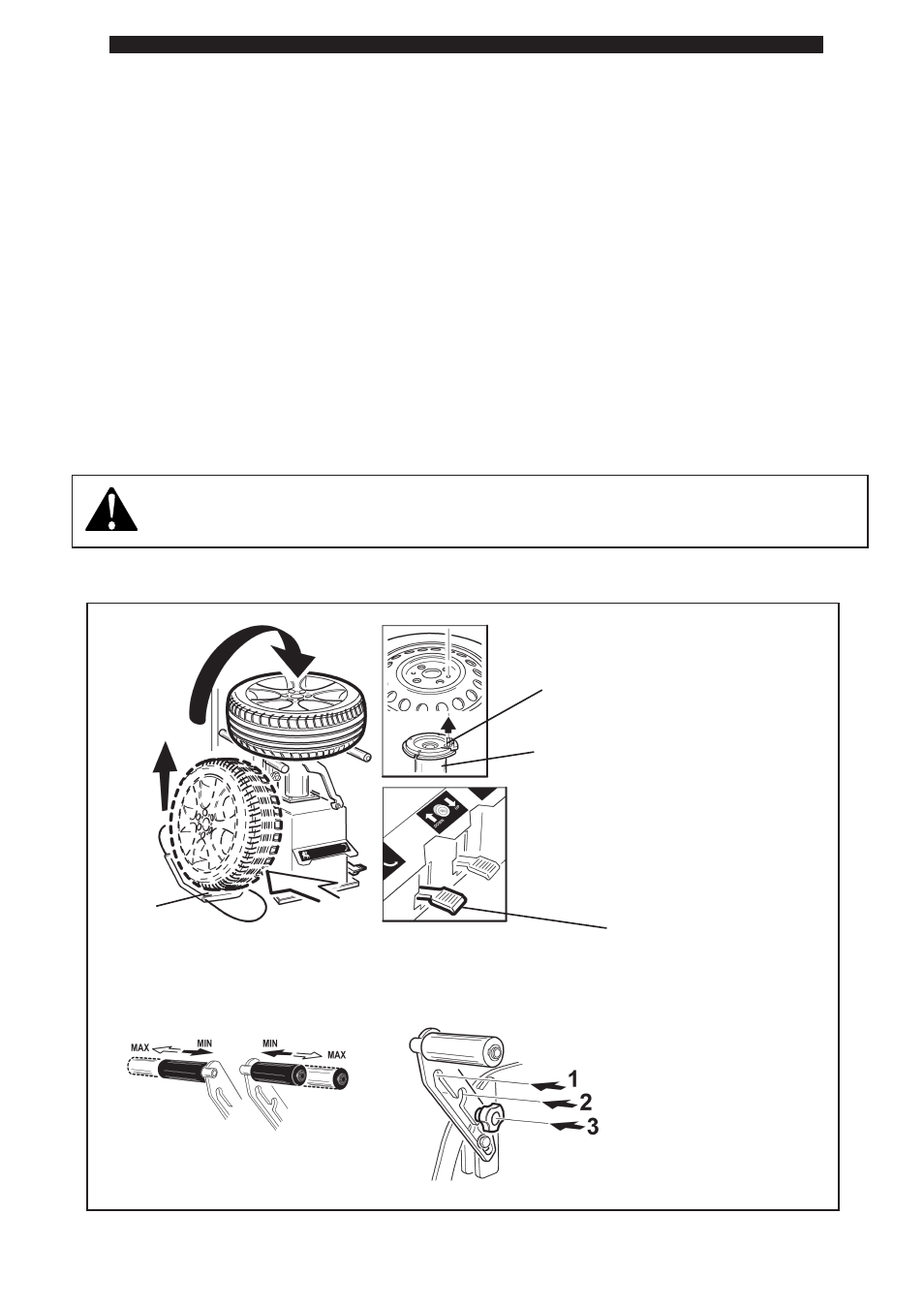

LIFT
LIFT pedal
Spindle center post
Anti rotation device
For wheels bigger than 24-inches or when clamping reverse mount rims wheels, you may need to
widen the plastic rollers of the lift and/or change the angle of the rollers bracket before lifting.
Min _ 24”
Max > 24” <
1 - Tire width > 11”
2 - Tire width _ 11”
3 - Reverse mounted only
<
