Important: Always read and follow the operating instructions. • 23

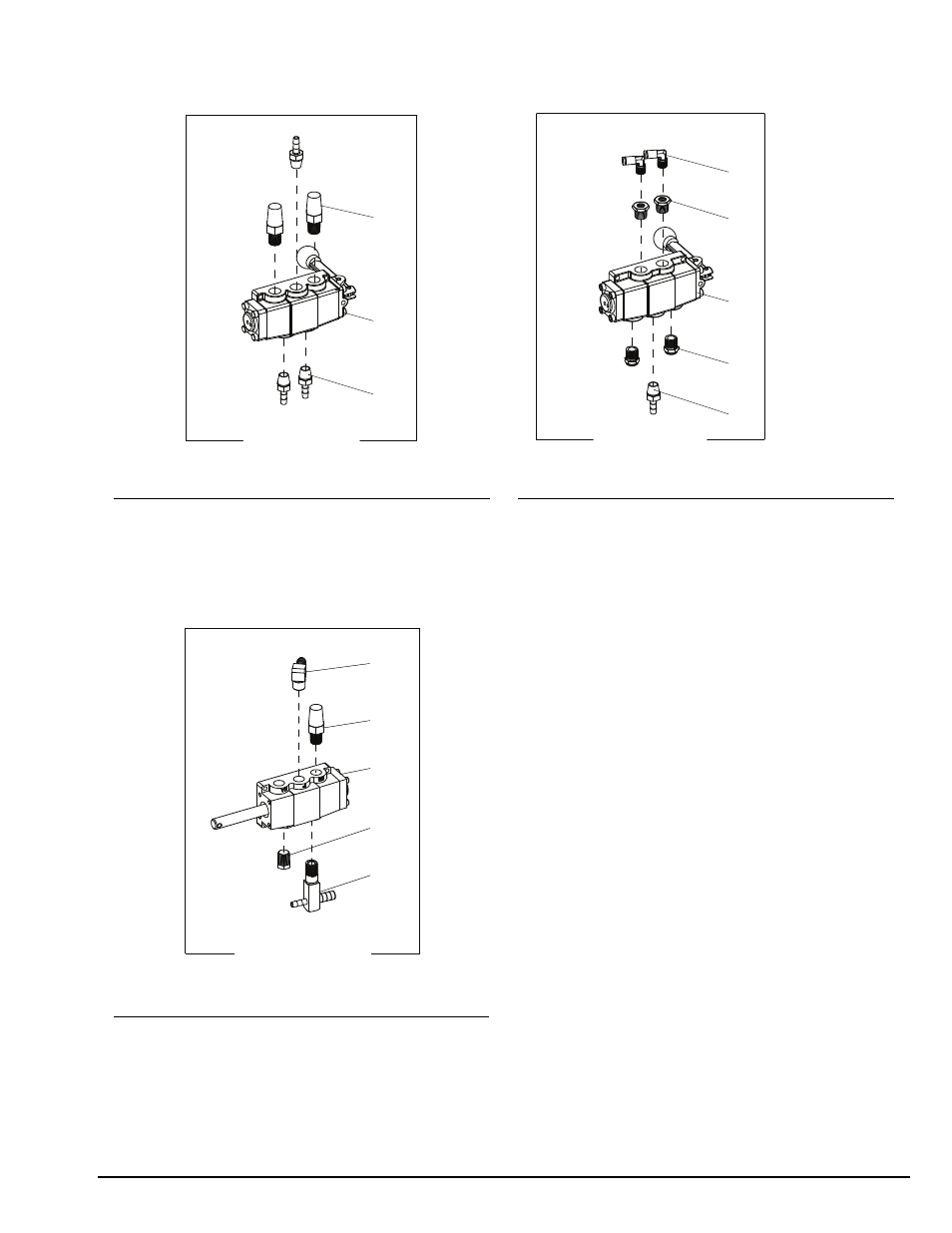

Valve Assemblies
2 2
1 1
3 3
3 3
2 2
1 1
4 4
5 5
1 1
2 2
3 3
4 4
5 5
HOR. SLIDE ASSEMBLY VALVE HOR. SLIDE ASSEMBLY VALVE ROBO ARM ASSEMBLY VALVE ROBO ARM ASSEMBLY VALVE
PEDAL ASSEMBLY VALVE (ELEC.) PEDAL ASSEMBLY VALVE (ELEC.) *
Ref Part No. Description
1 906960 1/4 NPT Bronze Muffler
2 8185621 3-Position Valve
3 8000378 Straight Fitting
Ref Part No. Description
1 8181997 Fitting
2 8109481 1/4-1/8 NPT Reducer Fitting
3 8185585 3-Position Valve
4 8105615 1/4 NPT Muffler
5 8000378 Straight Fitting
Ref Part No. Description
1 8184256 90° ELL Fitting
2 906960 1/4 NPT Bronze Muffler
3 8184369 Pedal Operated Valve
4 8120344 1/4 NPT Pipe Plug
5 8107234 1/4-3/8 Brass Tee Fitting
* 85008891 Four Way Valve Assembly
