COATS 1001 Wheel Balancer • 3
Install and tighten the four (4) remaining accessory pegs and
hang the accessories.
Note: Balancer will not operate properly on pallet.
Hood and Pod Set-up

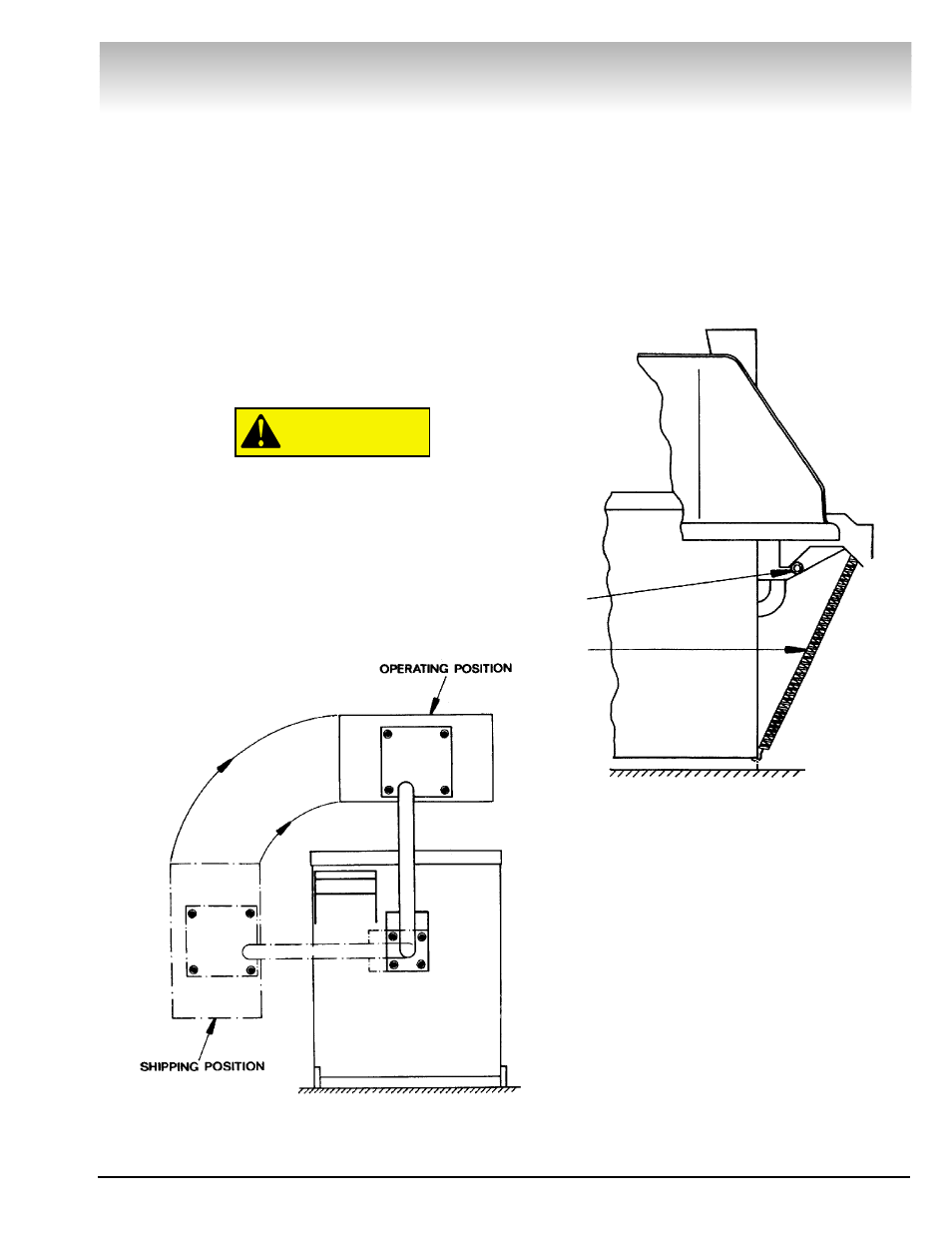

To set up hood: Locate hood stop in accessory box and install
as shown. Install hood spring as shown. Do not install hood
spring until Control Pod has been set up.
Control Pod Setup: Carefully hold control Pod and Post while
removing 4 retaining screws. Swing Pod upright as shown
above and tightly reinstall the 4 screws. Now attach hood spring
from hood bar pin to base.
Note: Certain models will have the control pod already in its
operating position when received.
DO NOT drop Control Pod when removing the 4
screws.
CAUTION
Direct Drive
