10 • COATS 1001 Wheel Balancer
Direct Drive
5. Spin Mode
Lower Guard Hood Before Starting Spin.
Press start button to obtain normal readings. Balancer will spin
and stop automatically.
6. Take Readings
Weight and position readings will appear on displays as bal-
ancer is braking tire.
FINE BALANCE (for unbalance of 0.2 ounce or less): hold
button down during spin cycle. Position readings will always
appear. (Not needed in normal use.)

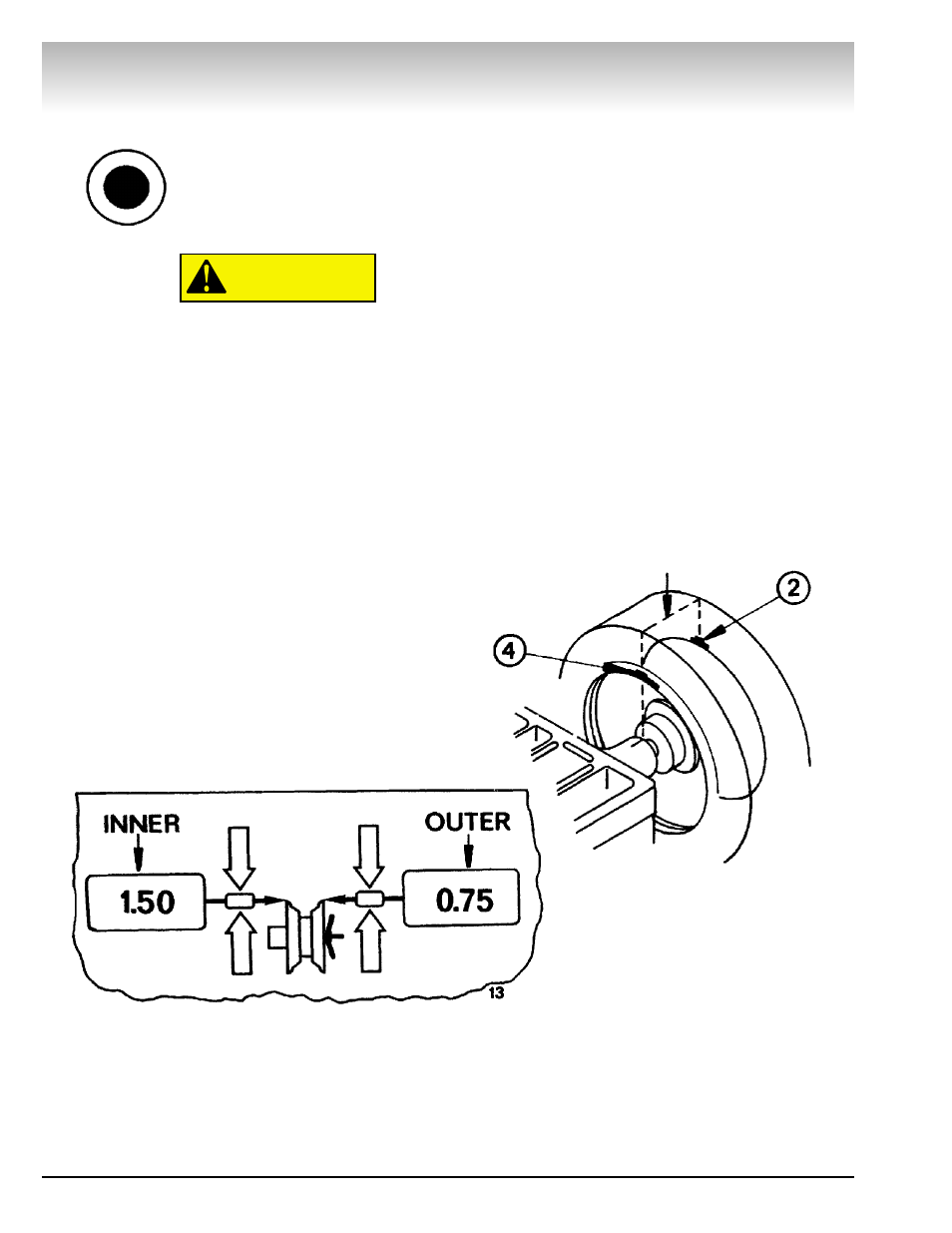

7. Attach Weight
1. Rotate wheel until right (OUTER) twin lights blink alter-
nately.
2. Attach a weight equal to outer weight reading to outer rim
at top dead center. (See #2)
3. Rotate wheel until left (INNER) twin lights blink alternately.
4. Attach a weight equal to inner weight reading to inner rim at
top dead center. (See #4)
CAUTION
Note: The more accurate you are in
selecting the exact weight and position,
the more often you will balance in one
spin. Respin after applying weights to
obtain 0.00 reading.
