Electrical Power
Consult a licensed electrical contractor for proper installation
to local electrical codes. Power outlets must be enclosed in a
floor raceway or overhead drop if predestrian or equipment traf-
fic can damage existing power cord.
Operation with a defective ground circuit will create
a shock hazard for the operator and could damage
the balancers electronics. Operation with a defective
ground circuit may void warranty.
Precautions
Check voltage requirements on balancer ID plate. Balancer
requires nominal 220VAC, 60 Hz, three-phase power with a 20-
ampere fuse or circuit breaker. Mating outlet (not furnished) is
Hubbel 2420 or Bryant 71520, connected as shown below. A
factory installed option is available allowing operation from 115
VAC, single-phase power. A 20 ampere fuse or circuit breaker
and a standard three-pin safety outlet wired as shown below is
required. Electric outlets must have a solid connection (less
than one ohm between ground and pin and building ground).
Voltage Reading Between: 220V Type
X - Y 200 - 250
X - Z 200 - 250
X - Z 200 - 250
Voltage Reading Between: 220V Type
A - B 105 - 130
Power and ground requirements must be verified by installer
or inspector before connecting balancer. Failure to observe this
precaution may void warranty.
If balancer is bolted down, a licensed electrical contractor
must be consulted. Most electrical codes require “hard” wiring
when balancer Is bolted down.
Consult a licensed electrical contractor for proper installation
to local electrical codes. Power outlets must be enclosed in a
floor raceway or overhead drop if pedestrian or equipment traf-
fic can damage existing power cord.
CAUTION
Direct Drive
4 • COATS 1001 Wheel Balancer

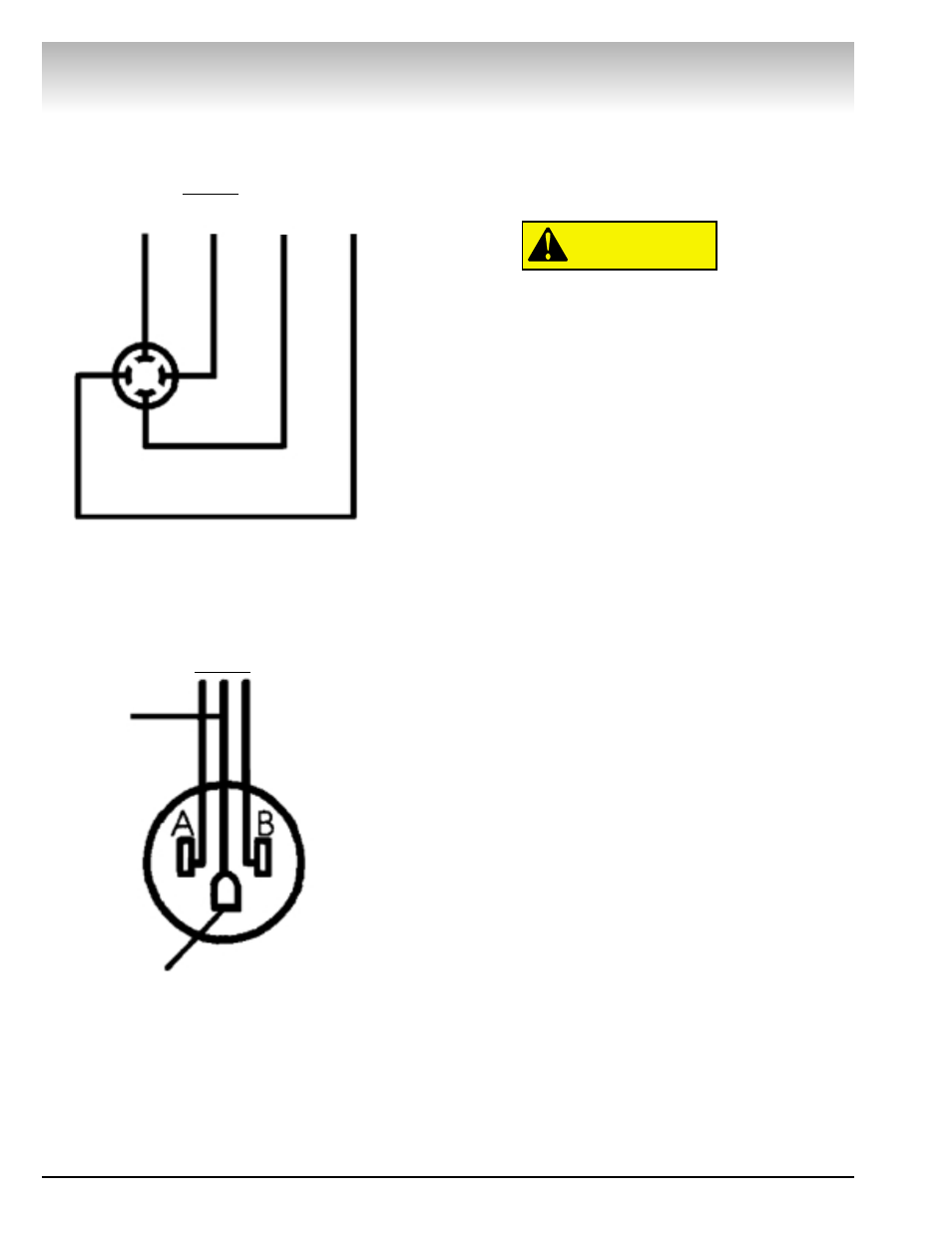

White
Black
Red
Green
Ground
To Outlet
X Y Z
White
Black
Green
To Outlet
Ground
