12 - System Map: Front, Left, Right & Rear Views (Model C)
Concise User’s Guide
English
System Map: Front, Left, Right & Rear Views (Model C)
4 7
5
6
1
2 3
Front
9
Left
Right
10 11 13 12 8
3
15
17
14
16 16
Rear
18
19

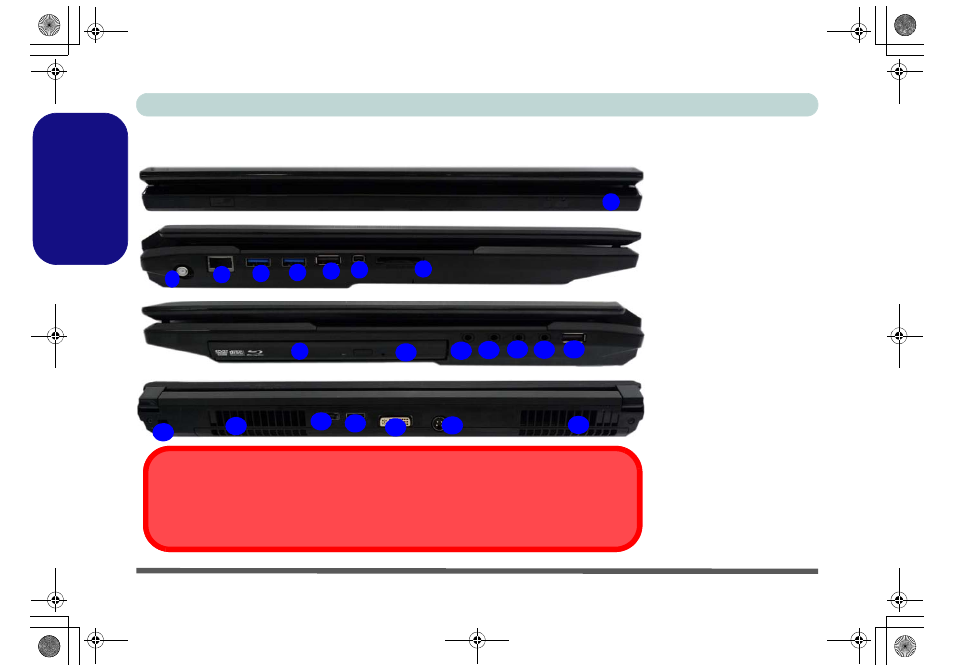

Figure 7 - Front, Left, Right
& Rear Views
1. LED Power Indicators
2. RJ-45 LAN Jack
3. USB 3.0 Ports
4. USB 2.0 Port (see page 11 )
5. Cable (CATV) Antenna Jack
6. Mini-IEEE 1394a Port
7. Multi-in-1 Card Reader
8. Optical Device Drive Bay
9. Emergency Eject Hole
10. Headphone Jack
11. Microphone Jack
12. S/PDIF-Out & Surround-Out
Combo Jack
13. Line-In Jack
14. USB 2.0 Port
15. Security Lock Slot
16. Vent
17. eSATA/USB 2.0 Combo Port
18. HDMI-Out Port
19. DVI-Out Port
20. DC-In Jack
20

Overheating
To prevent your computer from overheating make sure nothing blocks any vent while the com-
puter is in use.
