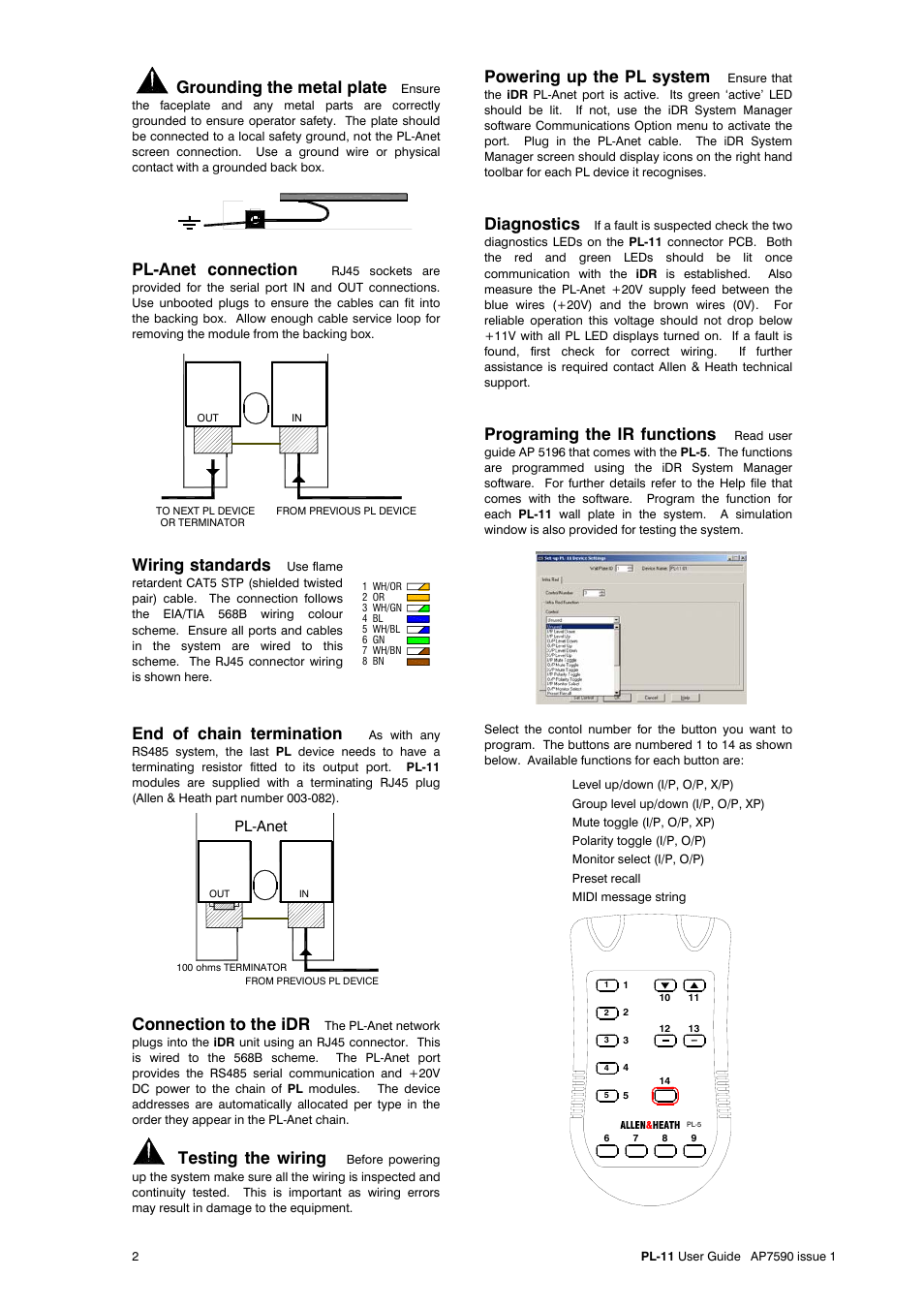

Grounding the metal plate, Pl-anet connection, Wiring standards – Allen&Heath PL-11 User Manual
Page 2: End of chain termination, Connection to the idr, Testing the wiring, Powering up the pl system, Diagnostics, Programing the ir functions
