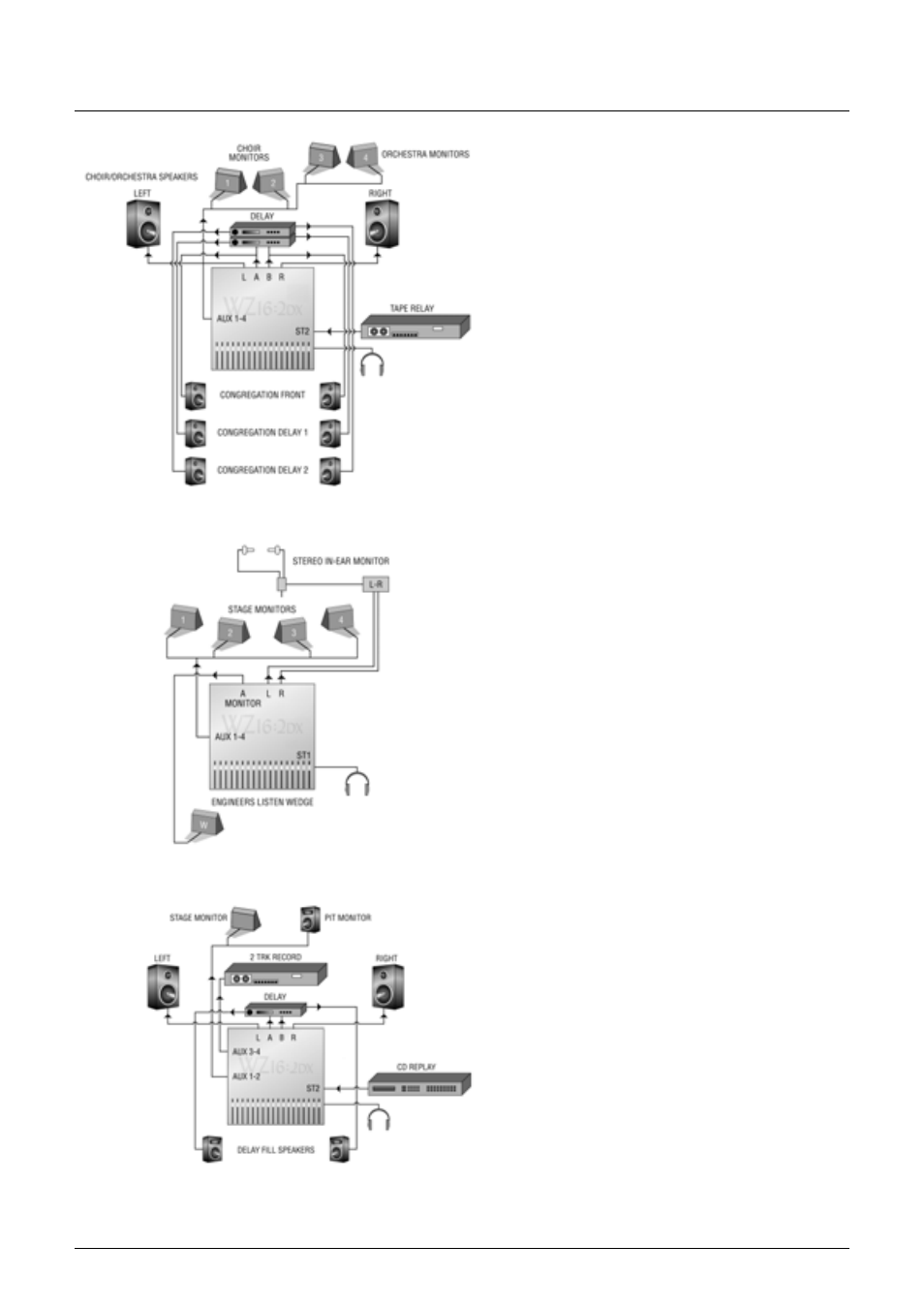

Applications Examples
House of Worship:
x Music FOH system driven from LR mix
x
Congregation PA with delays fed from AB
x
Aux sends 1-4 give musicians/choir monitors
x
Aux sends 5/6 used as internal FX sends
x
ST2 used as a tape relay input
x
Engineer checks using headphone output
Stage Monitor:
x
4 Floor wedges from auxes 1-4
x
Stereo in-ear monitor mix from LR
x Engineers listen wedge from AB output
x
Engineer speaker similar to musicians
x Monitor switches check on-stage sound
x
Aux 5 and 6 used as internal FX sends
x FX routed to monitors via ST1
x
Note up to 6 floor monitors possible
Small Theatre:
x
Main FOH fed from LR mix
x
Auditorium speakers fed from AB
x AB mix delayed to improve clarity
x
Intermission CD replay input through ST2
x Stage and pit monitors from Aux 1-2
x
2 track recording from Aux 3-4
x Internal FX loop use Aux 5-6
x
Engineer monitors using headphone mix
