Headphones, Input output, Lamp – Allen&Heath GL3800 User Manual

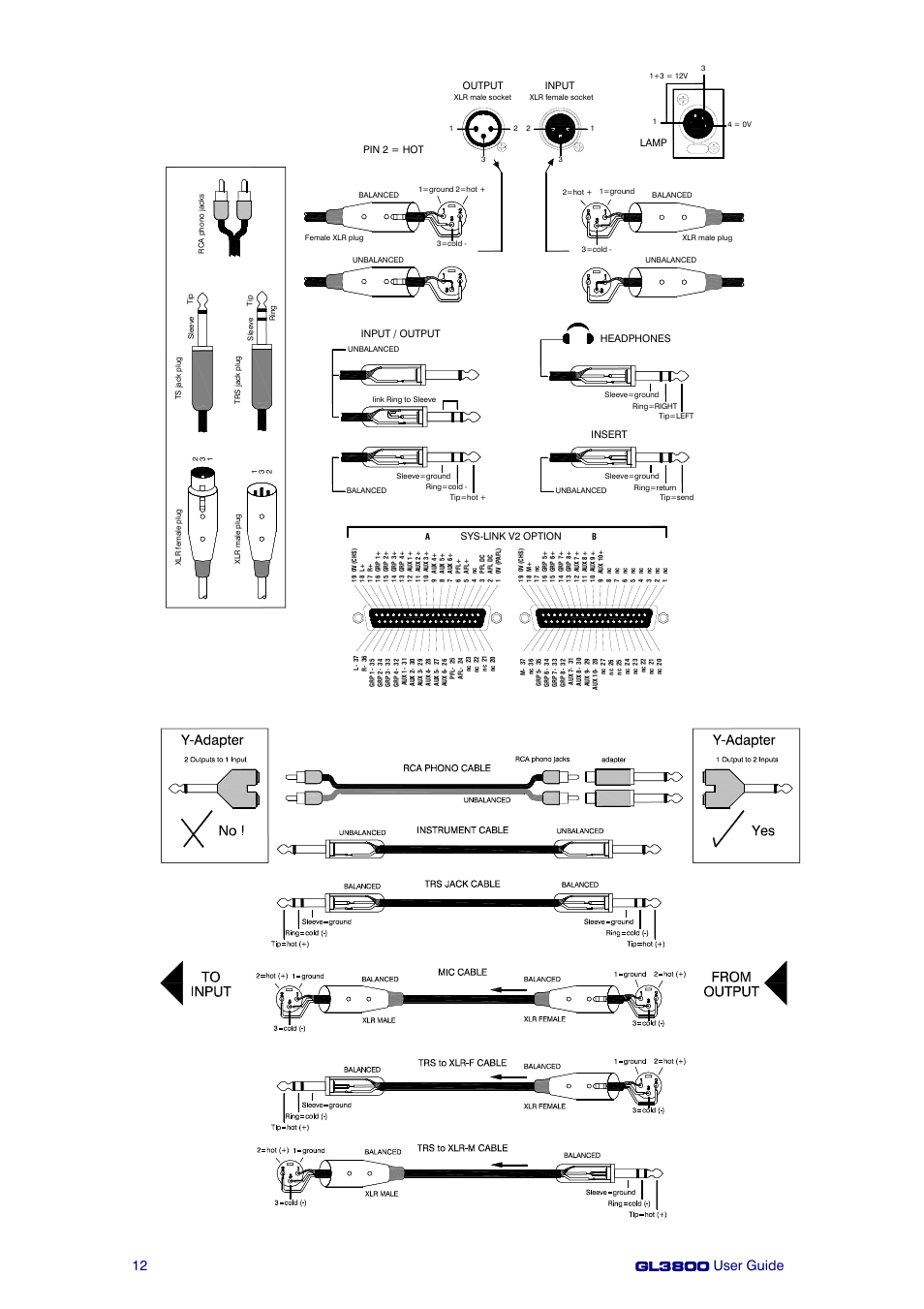

Page 12: Pin 2 = hot, Insert input / output, Sys-link v2 option
