HC-155

ASSEMBLY

X7502256706

ASSEMBLY

This model is factory assembled.

Note: For Normal cutting, Echo strongly recommends the blade guard be installed. In extreme conditions,

such as commercial cutting or when cutting thick and/or dense branches, efficiency may be increased
by trimming without the blade guard.

Parts Required: Blade Guard, Blade Lock Nuts

Hedge Clipper blades are very sharp. Touching them may lead to severe personal injury. Avoid
touching blades whenever possible, and always wear gloves to protect hands.

Follow blade bolt adjustment instructions exactly. Failure to do so could result in damage to blades or
gearbox.

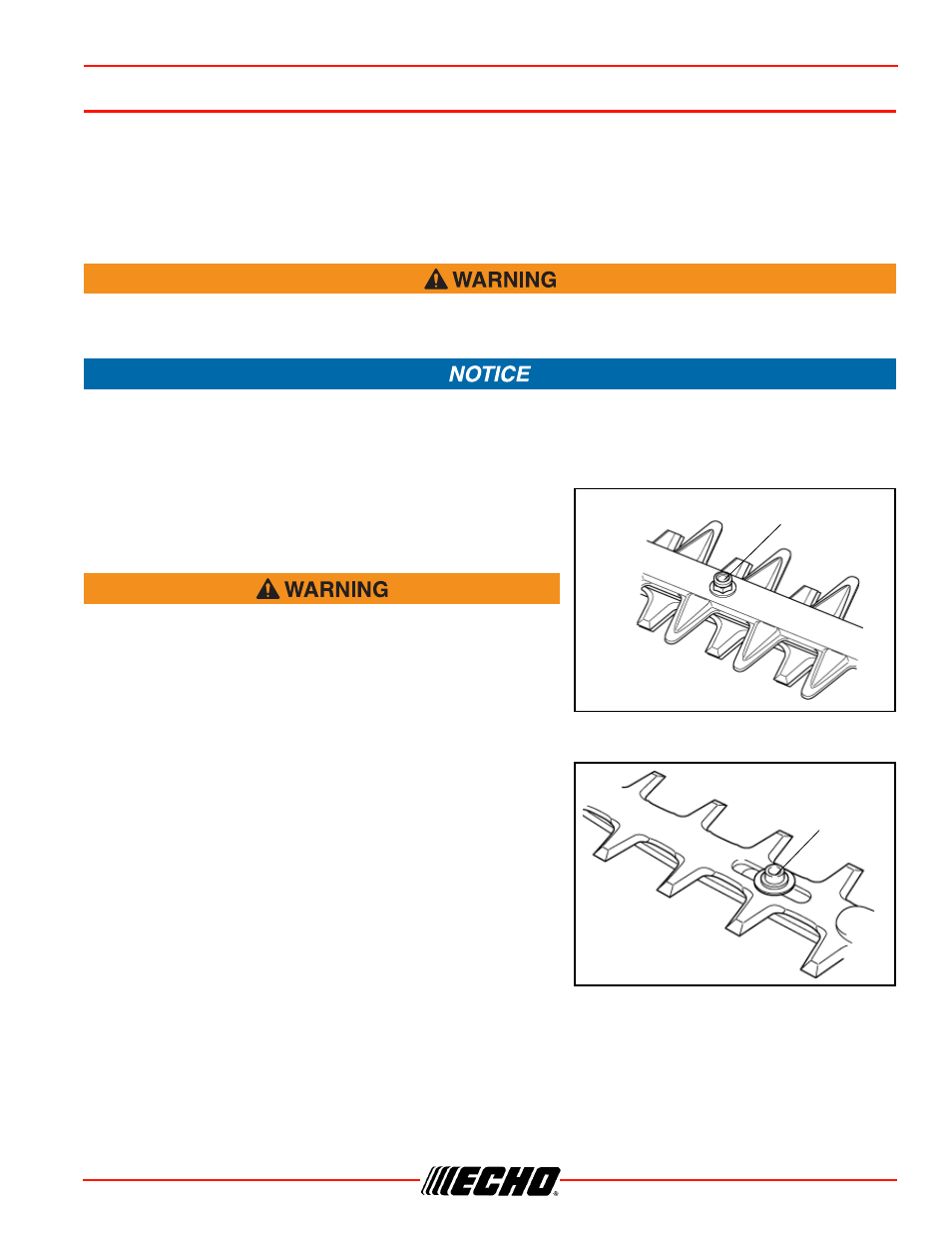

Remove Blade Guard

1. Move stop switch to stop position

2. Disconnect spark plug wire.

Hedge clipper blades are very sharp. Touching them may
lead to severe personal injury. Use a socket and extension
when adjusting blade bolts or blade locknuts in order to
keep hands at a safe distance from sharp blades.

3. Remove blade guard locknuts (A).

4. Remove blade guard

Note: Assure blade bolts (B) are tightened securely.

5. Secure blades with new locknuts (A).

Note: Use new locknuts every time blade guard is installed or

removed.
