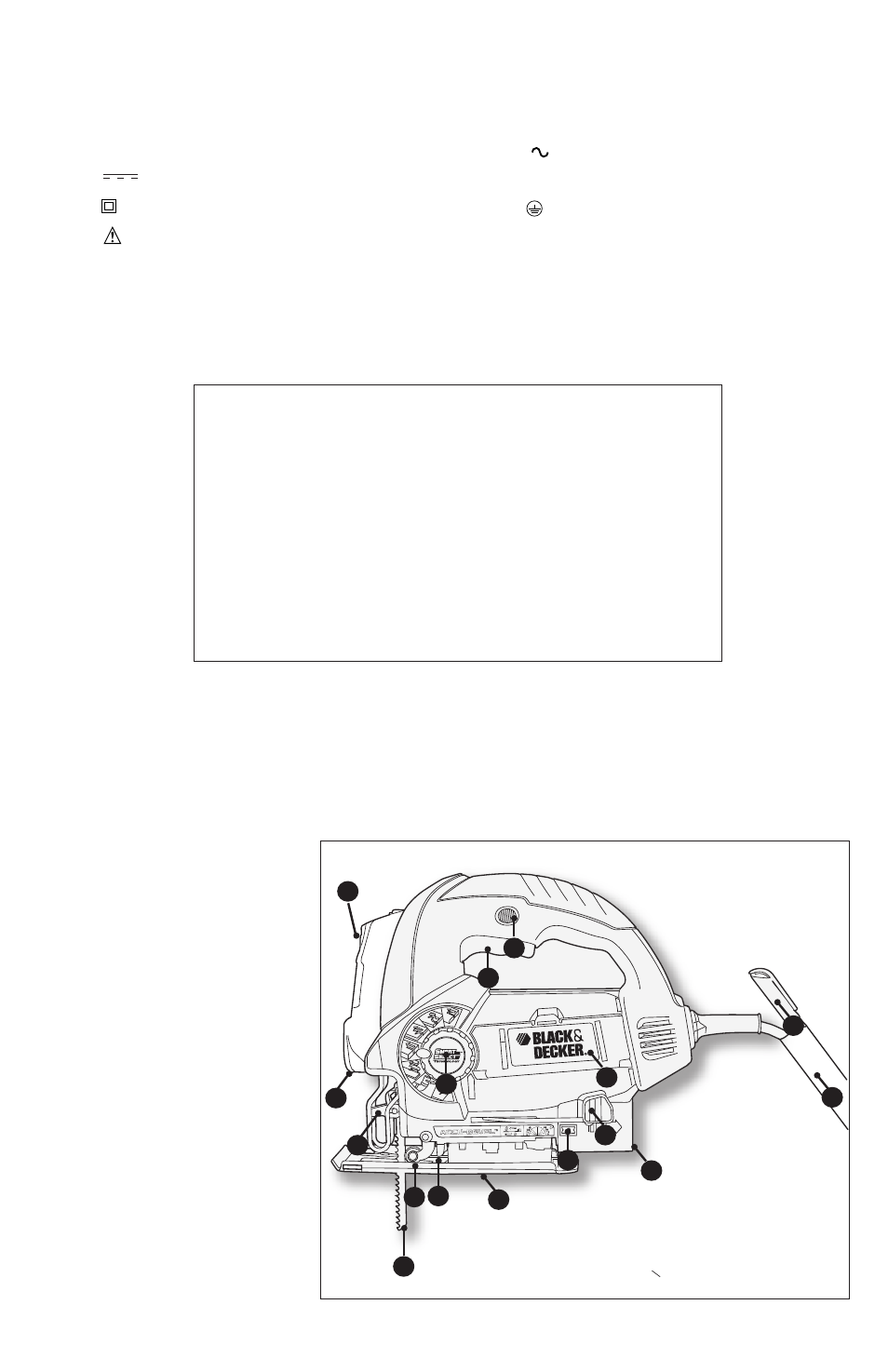

Functional Description
1. Variable speed switch
2. Lock-on button
3. Saw blade locking lever
4. Saw blade
5. Saw blade support roller
6. Dust blower
7. Shoe plate
8. Bevel angle window
9. Shoe plate beveling lever
10. “Smart Select
TM
” knob
11. Saw blade storage
compartment
12. Dust extraction port
13. UV light On/Off button
14. UV light
15. Highlighter marking pen
16. Pen storage
1
SYMBOLS
The label on your tool may include the following symbols.
V ..........................volts
A..........................amperes
Hz ........................hertz
W ........................watts
min........................minutes
......................alternating current
......................direct current
no........................no load speed
..........................Class II Construction
........................earthing terminal
........................safety alert symbol
.../min ..................revolutions or
reciprocations per minute
USE OF EXTENSION CORDS
Make sure the extension cord is in good condition before using. Always use the proper
size extension cords with the tool – that is, proper wire size for various lengths of cord and
heavy enough to carry the current the tool will draw. Use of an undersized cord will cause
a drop in line voltage resulting in loss of power and overheating. For proper size cords see
chart below.
MOTOR
Be sure your power supply agrees with nameplate marking. 120 Volts AC only means your
tool will operate on standard 60 Hz household power. Do not operate AC tools on DC. A
rating of 120 volts AC/DC means that you tool will operate on standard 60 Hz AC or DC
power. This information is printed on the nameplate. Lower voltage will cause loss of
power and can result in over-heating. All Black & Decker tools are factory-tested; if this
tool does not operate, check the power supply.
SAVE THESE INSTRUCTIONS
Minimum Gauge for Cord Sets
Volts
Total Length of Cord in Feet
120V
0-25
26-50
51-100
101-150
(0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m)
240V
0-50
51-100
101-200
201-300
(0-15,2m) (15,2-30,4m) (30,4-60,9m) (60,9-91,4m)
Ampere Rating
More
Not more
American Wire Gauge
Than
Than
0
- 6
18
16
16
14
6
- 10
18
16
14
12
10 - 12
16
16
14
12
12 - 16
14
12
Not Recommended
2
3
10
9
8
7
6
5
4
13
11
12
16
15
14
