Section 3 - Controls and Indicators
3-8 31200567

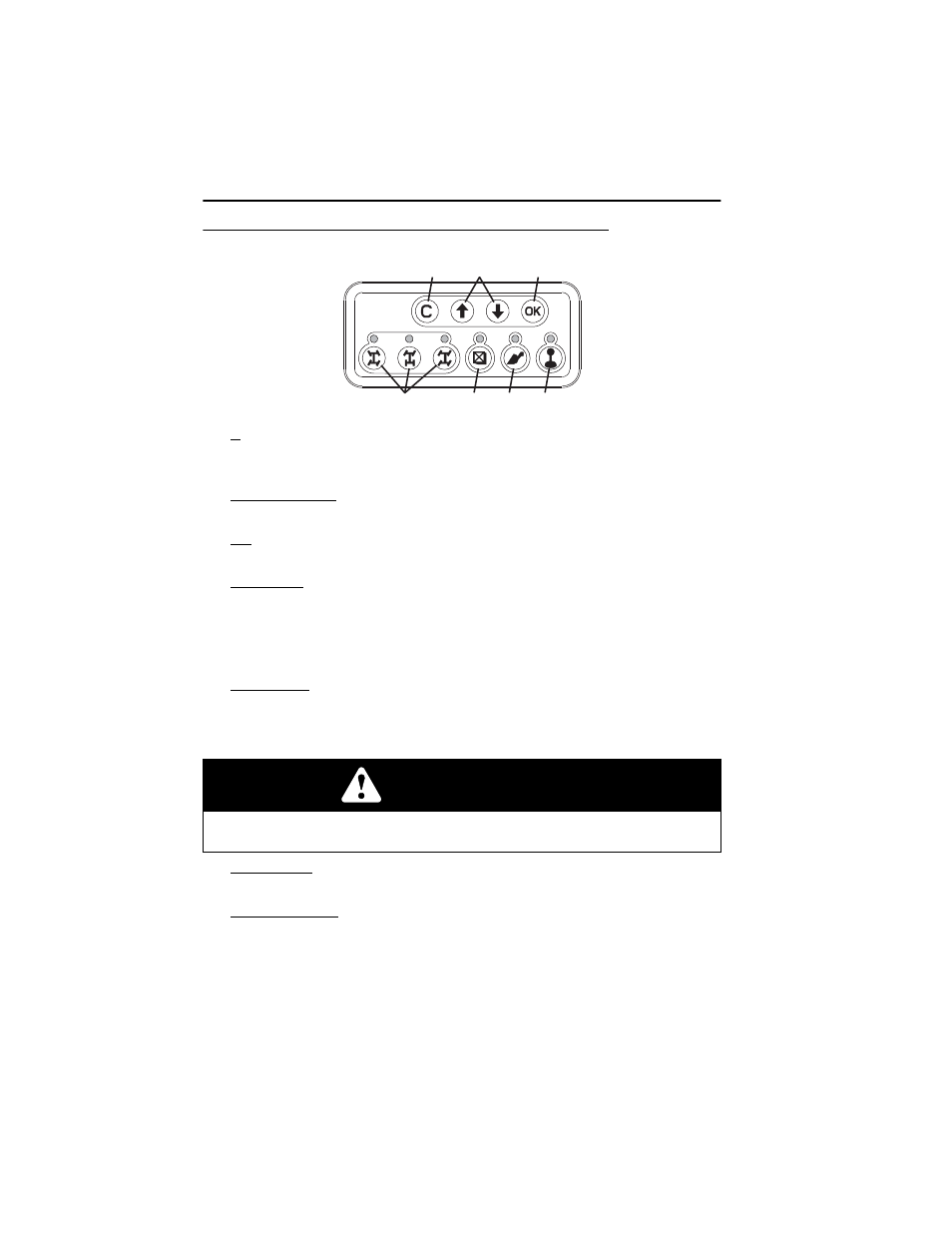

Keypad
1. C (Clear or escape): Use in conjuction with display screen. Returns user
interface one level during navigation. If at top level menu, depress and hold for
one second to exit.
2. Up/Down Arrows: Use in conjuction with display screen. Navigate menu
selections and change adjustable values.
3. OK (Enter): Use in conjuction with display screen. Confirms user interface
inputs.
4. Steer Mode: Three steer modes available: 4-Wheel Circle Steer, 2-Wheel Front
Steer and 4-Wheel Crab Steer. Illuminated LED indicates current steer mode.
See page 3-27.
Note: If machine is shut-down during steer mode change, it must be completed
at restart.
5. LSI Override (L2906H, 2906H & 3507H): Momentarily disables the automatic
function cut-out. LED flashes while activated. Depress and hold up to 30
seconds while operating joystick to momentarily disable the automatic function
cut-out.
6. Bucket Mode: LED lit while activated. Increases response to attachment tilt
function.
7. Joystick Function: LED lit while activated. Boom, auxiliary hydraulics and
outrigger functions are enabled. Deactivate this function before traveling on
public roads. See “Road Operation (L2906H, 2906H & 3507H)” on page 4-10.
Note: All LEDs perform a bulb check at system start up.
WARNING
TIP OVER HAZARD. Exceeding lift capacity of the telehandler could damage the
equipment and/or cause tip over.
OZ2361
2 3 1
4 5 6 7
