Section 5 - Attachments and Hitches
5-47 31200567
Hydraulic Hitch
Maximum combined weight of trailer and load ......................... 12 000 kg (26 450 lb)
Maximum vertical weight at hitch interface..................................... 2000 kg (4400 lb)
Connecting trailer for towing:
1. Depress right side of front/rear auxiliary hydraulic switch (1) to enable rear
auxiliary hydraulics.
2. Press and hold joystick button (3) to raise hitch safety posts (4) off safety
hooks (5).
3. Pull safety hook release (6).
4. Press and hold joystick button (2) to lower the hitch (7) to the required height.
5. Reverse machine until the hitch is under the center of the tow eye.
6. Press and hold joystick button (3) to raise hitch until the safety hooks are
engaged.
7. If equipped, connect trailer harness to trailer plug (8).
8. If equipped, connect trailer brake line to trailer coupling (9).

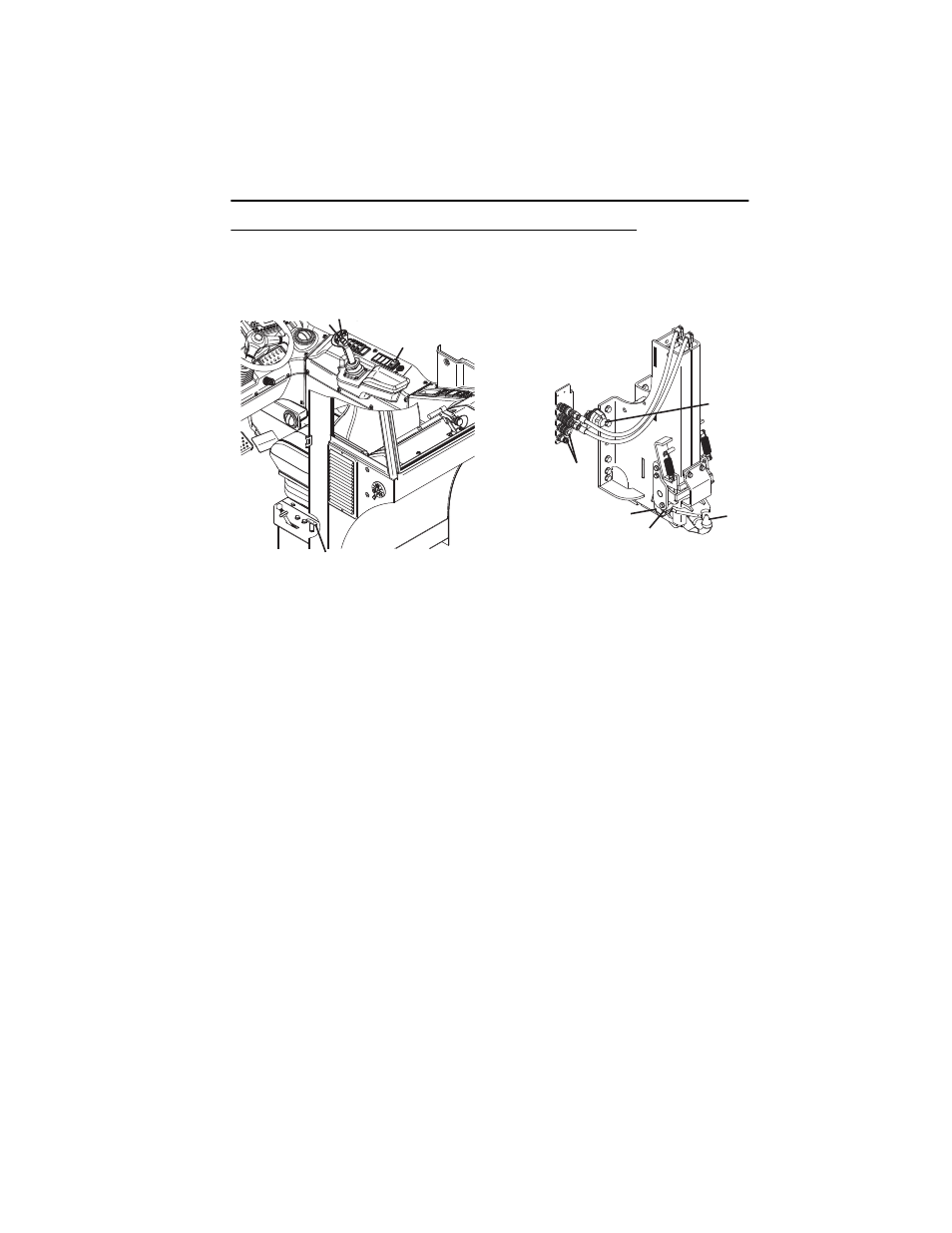

OAH1850
8
4
5 7
9
1
6
2 3
