Section 5 - Attachments and Hitches
5-30 31200567

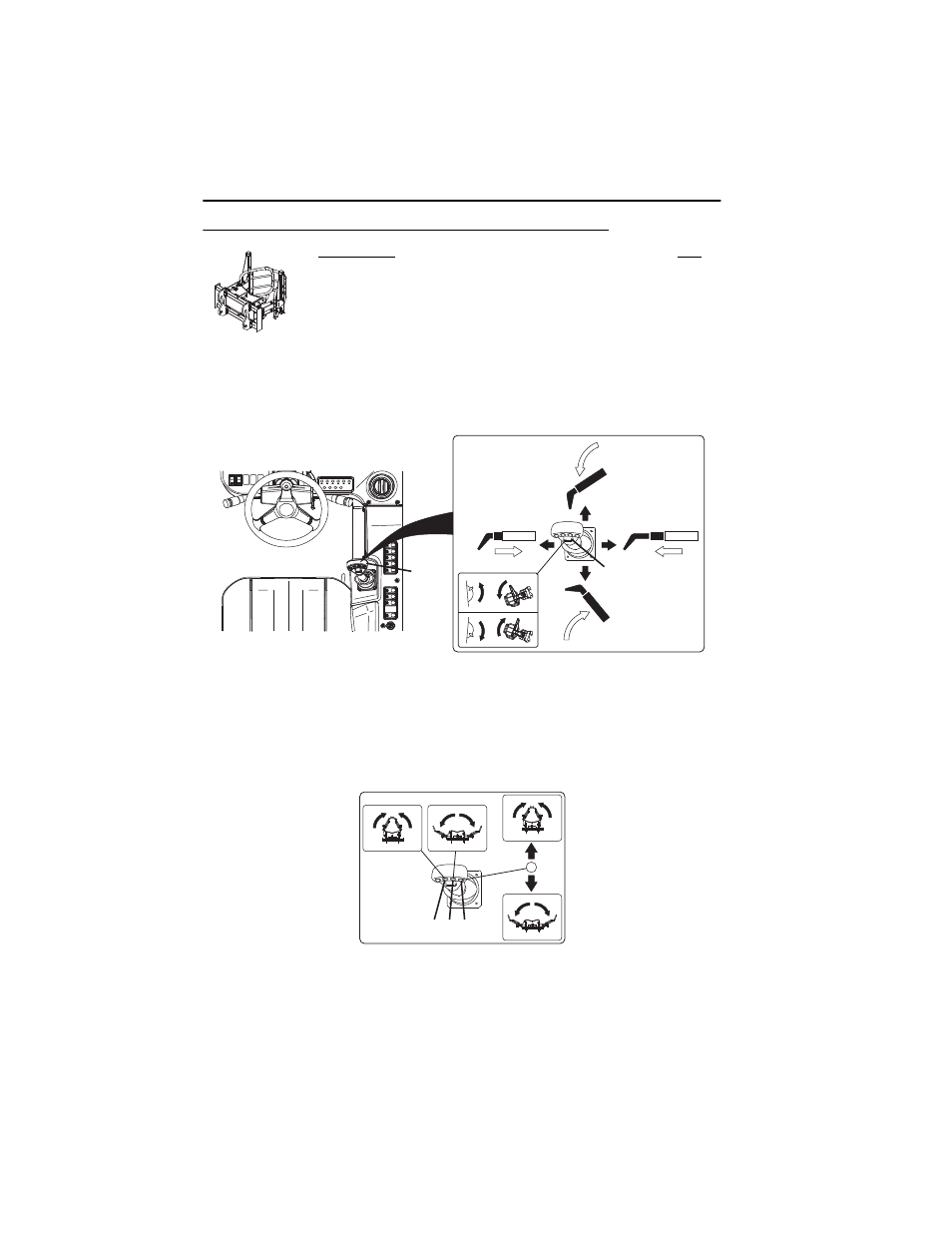

Bale Handler
Description P/N
Bale Handler, Tube ..........................................................0240117
Bale Handler, Spike .........................................................0240118
Use Bale Handler Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/Attachment/Fork Capacity” on
page 5-2.
The joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt roller switch (2) controls bale handler tilt.
• Push roller switch down to tilt up.
• Push roller switch up to tilt down.
OZ1870
OAH1840
1 2
OAH1830
5 3 4
