Page 108
Section 5 - Attachments and Hitches
5-24
31200567
Fork Mounted Hook
Description
P/N
Fork Mounted Hook (L2906H, 2906H & 3507H)............. 2700118
Fork Mounted Hook (619A & 723A).............................. 91565094
Use Fork Mounted Hook Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/Attachment/Fork Capacity” on
page 5-2.
Suspend loads in accordance with requirements set forth in Section
1 - General Safety Practices.

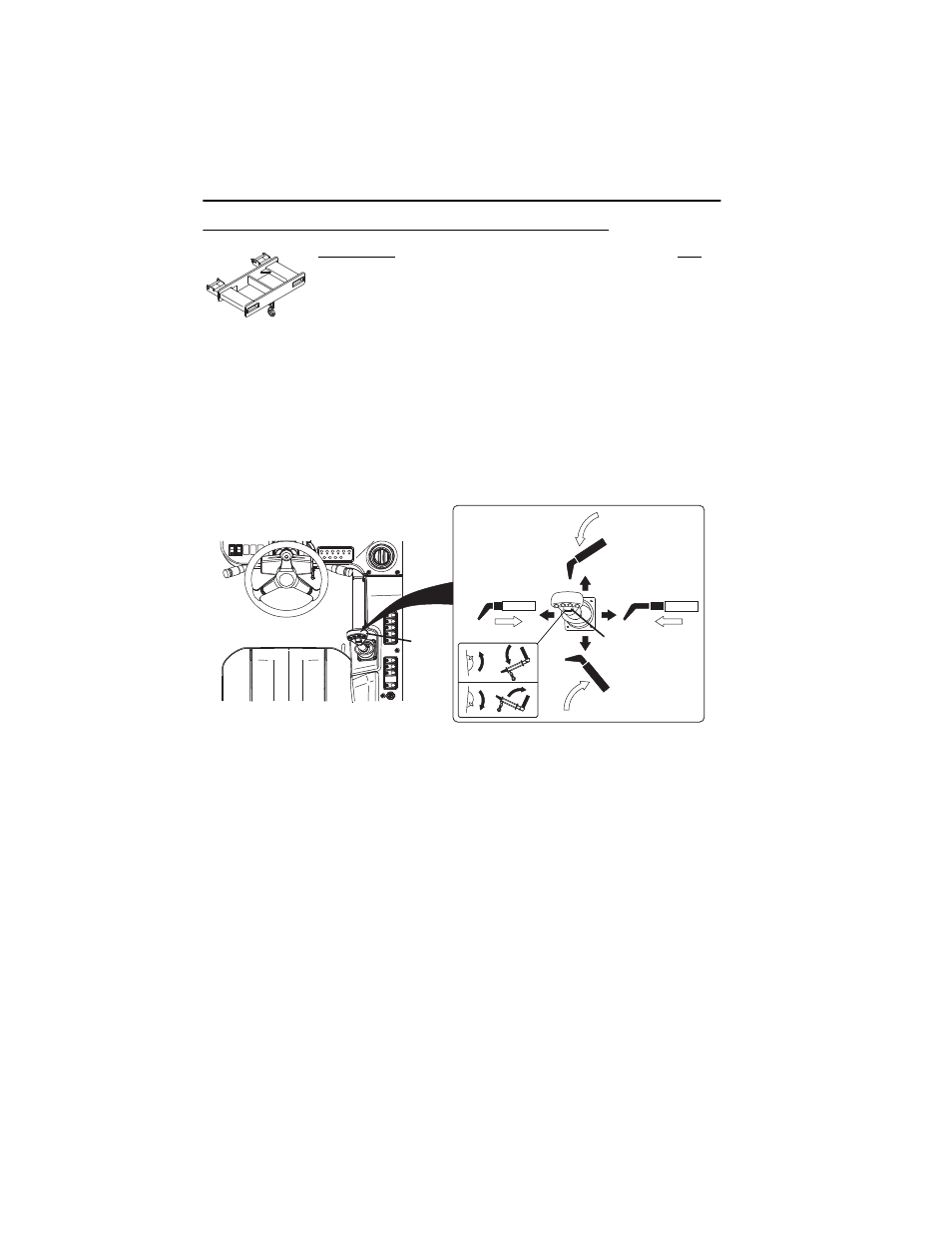

The joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt roller switch (2) controls fork tilt.
• Push roller switch down to tilt up.
• Push roller switch up to tilt down.
Installation Procedure:
• Ensure carriage is properly installed. Refer to “Attachment Installation” on
• Secure the fork mounted hook to the forks by sliding the fork mounted hook onto
the parent forks and install the retaining pin behind the vertical shank of the fork.
OY0640
OAH1750
1
2
