Section 5 - Attachments and Hitches
5-16 31200567
Carriage w/Forks
Description P/N
L2906H, 2906H & 3507H
Carriage, 1225 mm (48 in).............................................. 1170028
JD Carriage, 1225 mm (48 in) .................................. 1001102554
Fork, Pallet 50x120x1200 mm (2x4.7x47.2 in) ............... 2340040
Fork, Pallet 50x100x1200 mm (2x4x47.2 in) .................. 2340041
Carriage, 1225 mm (48 in)........................................ 1001107333
Fork, Pallet 50x100x1200 mm (2x4x47.2 in) ............ 1001100911
619A & 723A
Carriage, 50 in (1270 mm)........................................ 1001097283
Fork, Dual Taper 1.5x6x60 in (38x152x1524 mm).... 1001099457
Fork, Pallet 2x4x48 in (50x101x1219 mm) ............... 1001099458
Fork, Cubing 2x2x48 in (50x50x1219 mm)..................... 2340037
JD Carriage, 48 in (1225 mm) .................................. 1001102554
Use Carriage Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/Attachment/Fork Capacity” on
page 5-2.

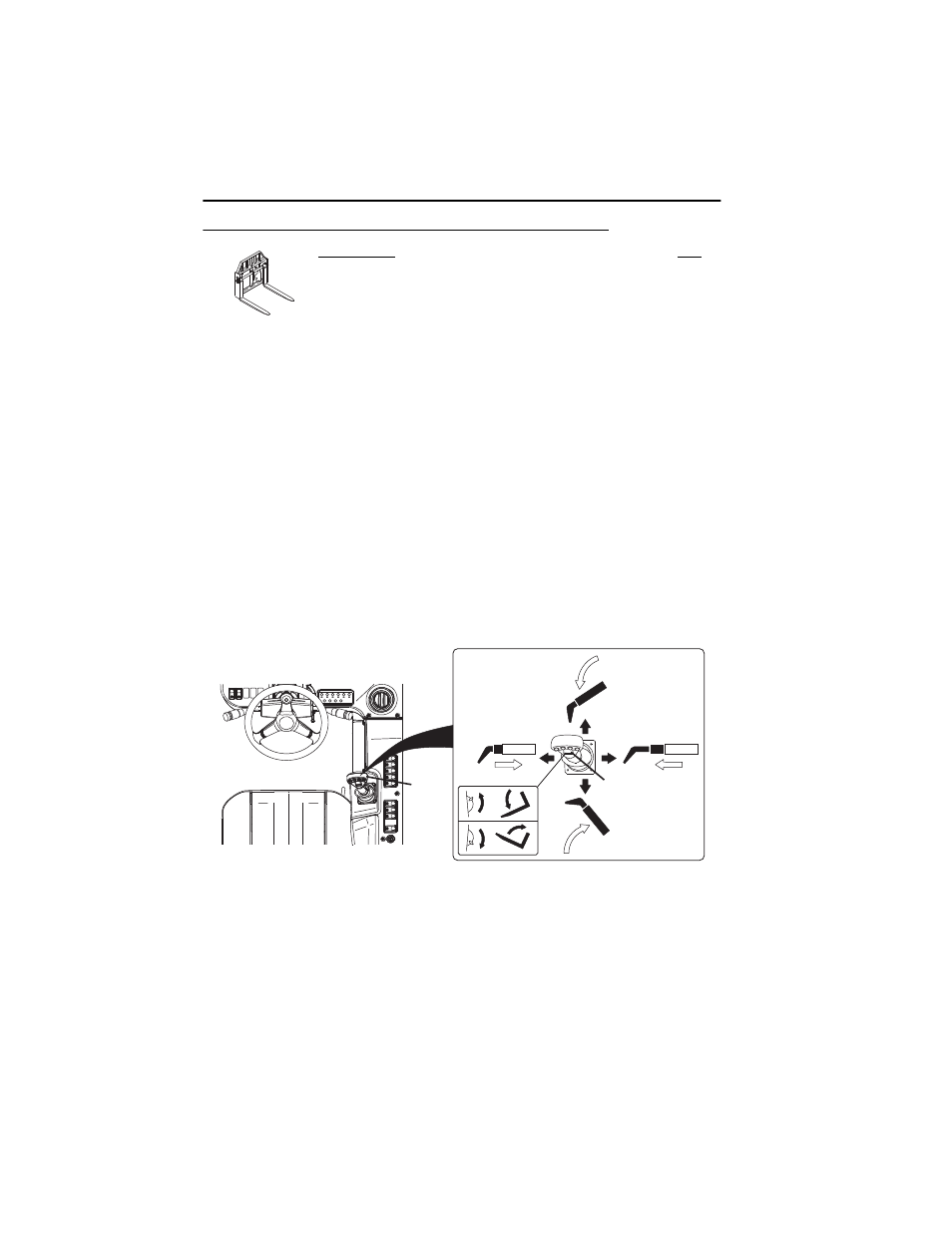

The joystick (1) controls lift/lower and extend/retract movement of the boom.
The attachment tilt roller switch (2) controls fork tilt.
• Push roller switch down to tilt up.
• Push roller switch up to tilt down.
OZ0770
OAH1690
1 2
