Section

7.2

7-6

A38E Work Platform

Illustrated Parts Breakdown

2

1

6

4

3

5

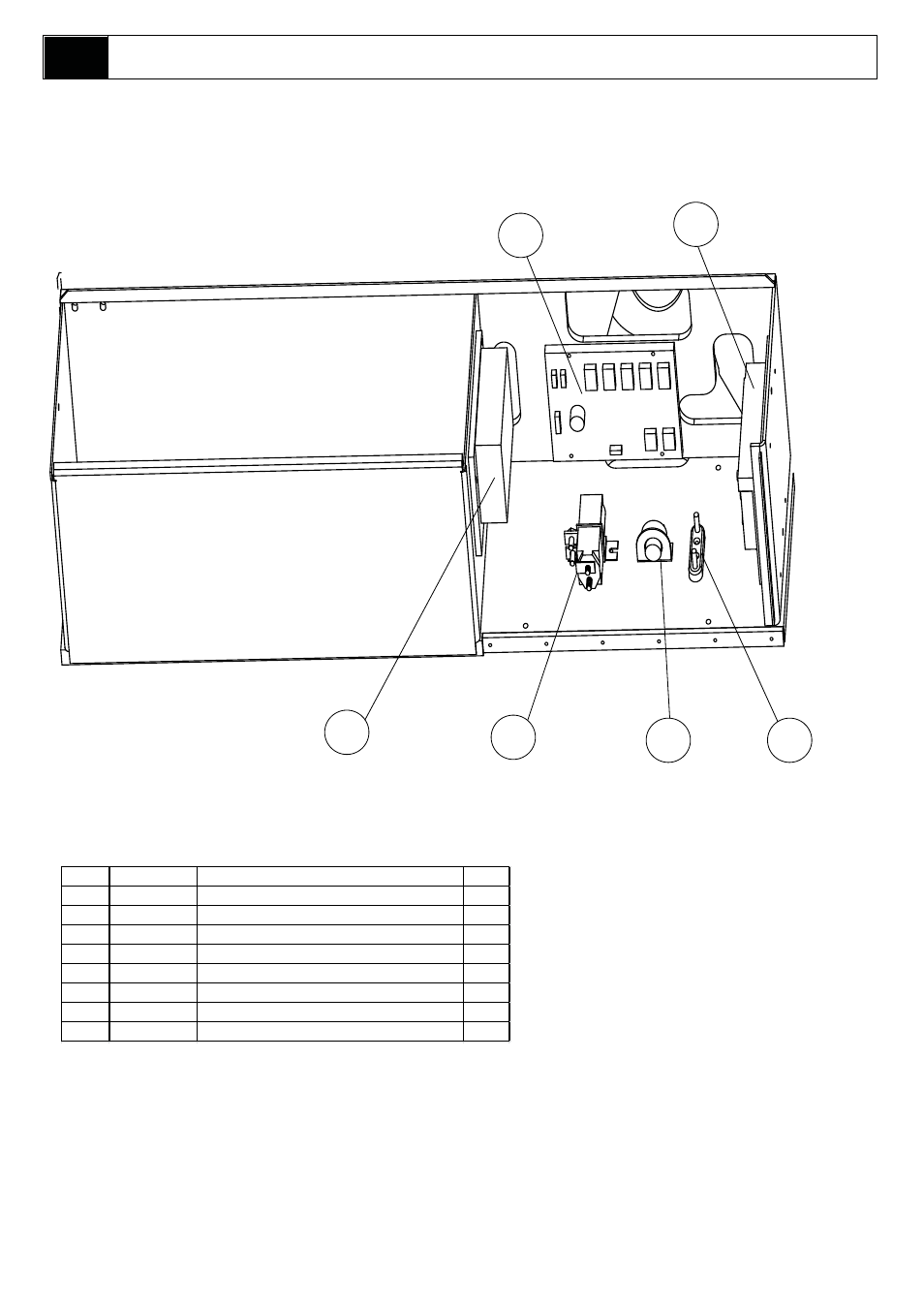

A38E PG PART ASSEMBLY -

ITEM PART NO. DESCRIPTION

QTY.

1

512941-000 A38E CHASSIS WELDMENT

1

2

512943-000 A38E DRIVE MOTOR COVER

1

3

502558-000 A38E CHASSIS BODY COVER

1

4

512684-000 A38E MODULE COVER

1

5

513550-000 GRAB HANDLE

1

6

501877-000 TWIST SCREW FASTNER

1

7

067387-000 A38 COVER GRIP LATCH

1

8

512942-000 A38E MANIFOLD BLOCK

1
