Chapter 9 – Operation
36 A38E – 8210243
4. Attach the fall restraint lanyard to one of the anchor
points.
Boom Operation
Use the following procedure to operate the turntable,
boom, or platform functions.
1. Press a machine function switch downward and
release to select a machine function. Only one func-
tion can be selected at a time. A green LED above
the function icon indicates which function has been
selected.
2. Squeeze and hold the interlock switch against the
joystick and push and hold the joystick in the cor-
responding direction of the colored arrow for the
selected function. Always look in the direction of
movement.
3. To stop movement release the joystick to its neutral
position or release the interlock switch.
Driving and Steering
Danger
The aerial platform can tip over if it becomes unsta-
ble. Death or serious injury will result from a tip-over
accident. Do not drive an elevated aerial platform on
soft, uneven, or sloping surfaces. Do not drive the
machine on grades that exceed 36 percent.
For operation on grades up to 36 percent, it is recom-
mended that the main boom be near horizontal and the
jib be elevated just enough to provide adequate ground
clearance.
A 36 percent grade is a 43″ (1.1 m) vertical rise in 10′
(3.05 m) horizontal length.
Avoid driving with the platform over the front end of the
chassis. In this position the machine is difficult to control
because:
drive and steer control movements and their resulting
machine movements are reversed.
when driving fast, sudden turns or stops produce more
severe reactions to platform occupants.
more turning space is required to prevent the platform
from colliding with obstacles several feet beyond the
path of the tires.
Warning
Death or serious injury could result from improperly
driving or steering the aerial platform. Read and un-
derstand the information in this manual and on the
placards and decals on the machine before operating
the aerial platform on the job.
•
•
•

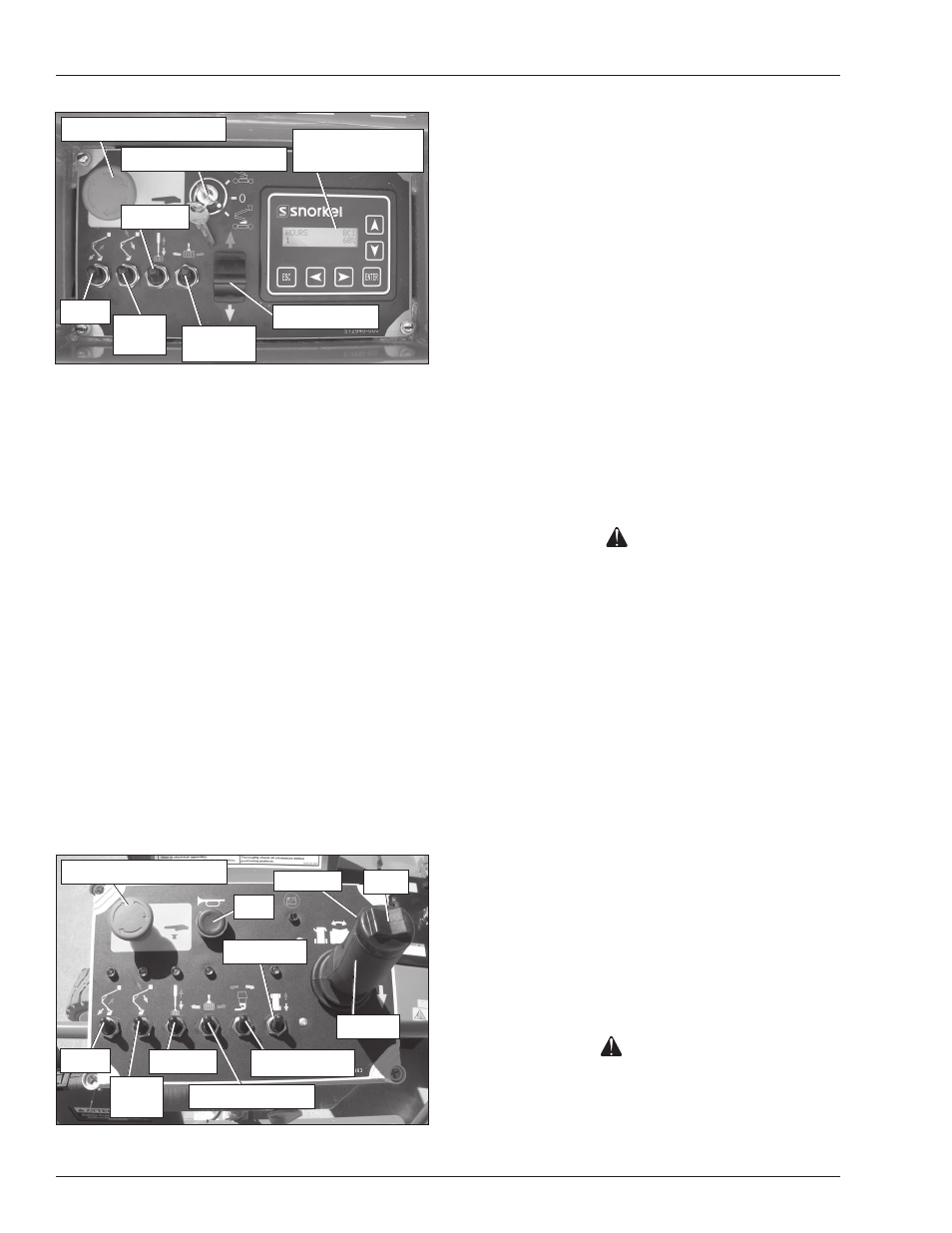

Figure 9.1 – Lower Controls
2. Insert the key into the control selector switch and turn
the switch to the lower controls position.
3. Press and hold a boom function switch while operat-
ing the rocker switch to operate the boom function.
4. Release the analog rocker switch to stop movement.
Upper Controls
The upper controls may be used for driving the aerial
platform and positioning the booms and platform while
on the job.
Use the following procedure to operate machine functions
using the upper controls.
1. Twist the emergency stop button clockwise at the
lower controls (refer to Figure 9.1), insert the key into
the control selector switch and turn the switch to the
upper control position.
2. Enter the platform and securely close the gate.
3. Twist the emergency stop button clockwise at the
upper controls (refer to Figure 9.2).
Figure 9.2 – Upper Controls
Emergency Stop Button
Turntable
Rotation
Rocker Switch
Riser
Tip Boom
Main
Boom
Diagnostic Center
LCD Display Control Selector Switch
Emergency Stop Button
Riser
Horn
Turntable Rotation
Main
Boom
Platform Level
Joystick
Steer Interlock
Drive/Steer
Tip Boom
