• Temperature (storage)
-25° to +65°C / -13° to +149°F
• Relative humidity
5% to 95%
* Resolution 1280 x 1024, standard size, contrast max., brightness 50%, 9300
°
, full white pattern.
* These information are subject to change without notice.

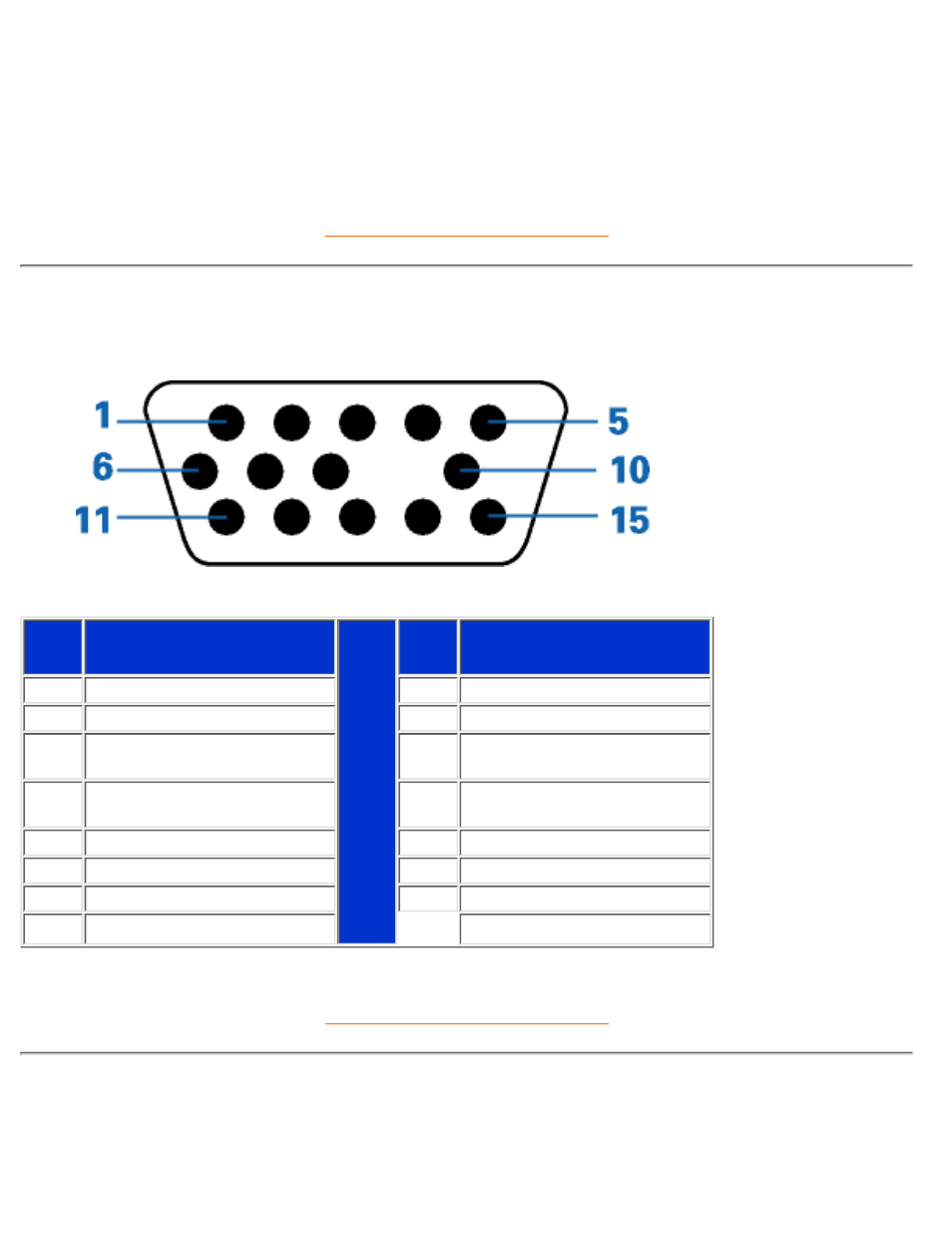

Pin Assignment
The 15-pin D-sub connector (male) of the signal cable (IBM systems):
Pin
No.
Assignment
Pin
No.
Assignment
1
Red video input
9
No pin
2
Green video input
10
Logic ground
3
Blue video input
11
Identical output - connected
to pin 10
4
Identical output - connected
to pin 10
12
Serial data line (SDA)
5
Ground
13
H. Sync / H+V
6
Red video ground
14
V. Sync (VCLK for DDC)
7
Green video ground
15
Data clock line (SCL)
8
Blue video ground
Views
Follow the links to see various views of the monitor and its components.
