INSTALLATION
12
Access Doors
The Home Generator System is equipped with an enclosure
that has three access doors (Figure 3). The doors are named
for a significant component located behind them. Starting
with the side that has the fuel connection and proceeding
clockwise, the doors are named:
• Oil Fill door
• Control Panel door
• Oil Drain door
Each Home Generator System is equipped with two identical
keys. These keys fit the locks that secure the access doors.
To Open an Access Door:
1.
Insert key into lock of access door you wish to open and
turn one quarter turn counterclockwise.
2. Grasp door’s handle and turn one quarter turn
counterclockwise to open. Remove key.
To Close an Access Door:
1.
Close door and turn doors handle one quarter of a turn
clockwise.
2. Insert key into lock of access door and turn one quarter
turn clockwise. Remove key.
Oil Fill Door
Fuel Inlet
Exhaust
Port
Control Panel Door
Oil Drain Door
Exhaust Bulkhead

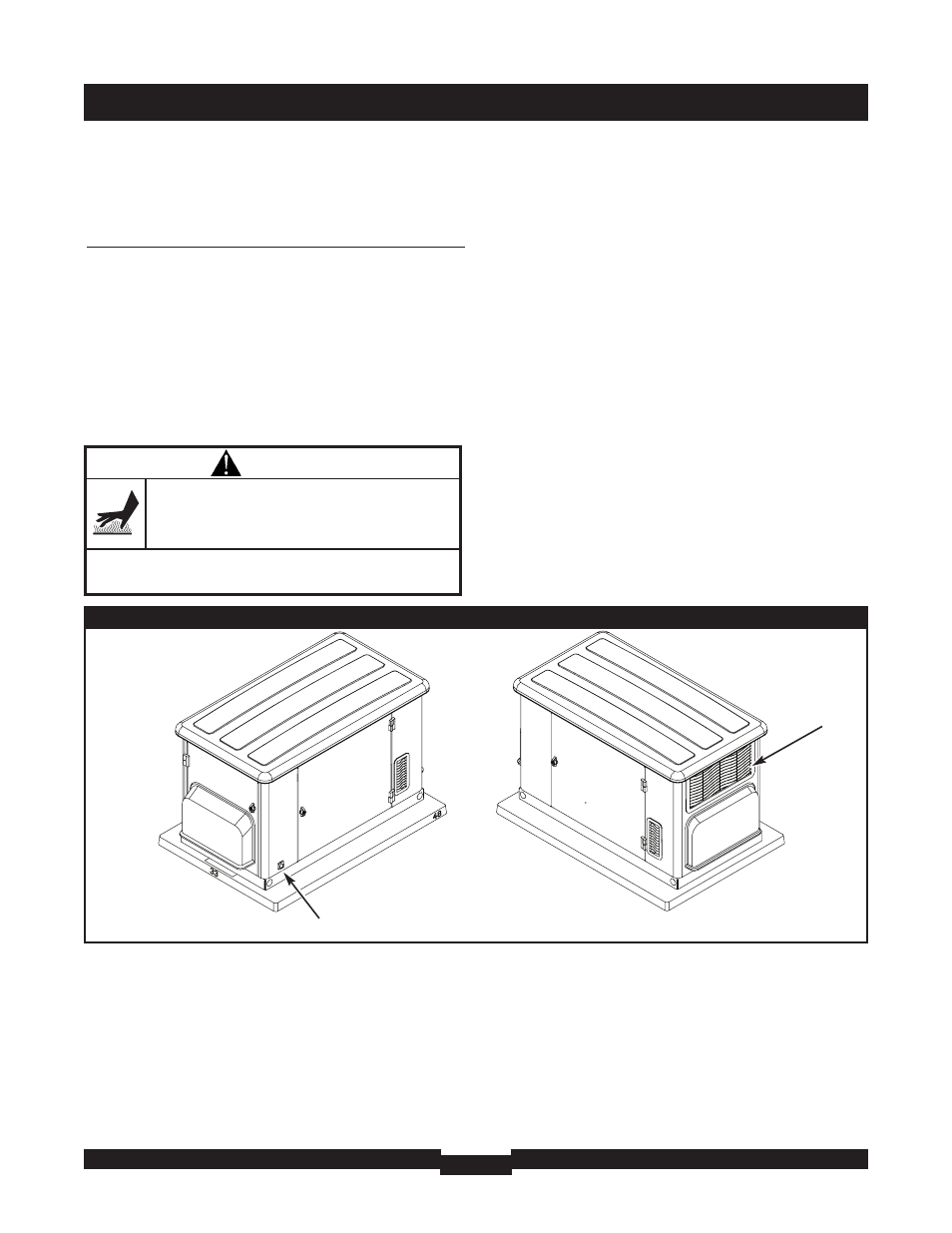

Figure 3 — Enclosure Access Doors
WARNING
Contact with muffler area can result in serious
burns.
• DO NOT touch hot parts and AVOID hot exhaust gases.
• Allow equipment to cool before touching.
