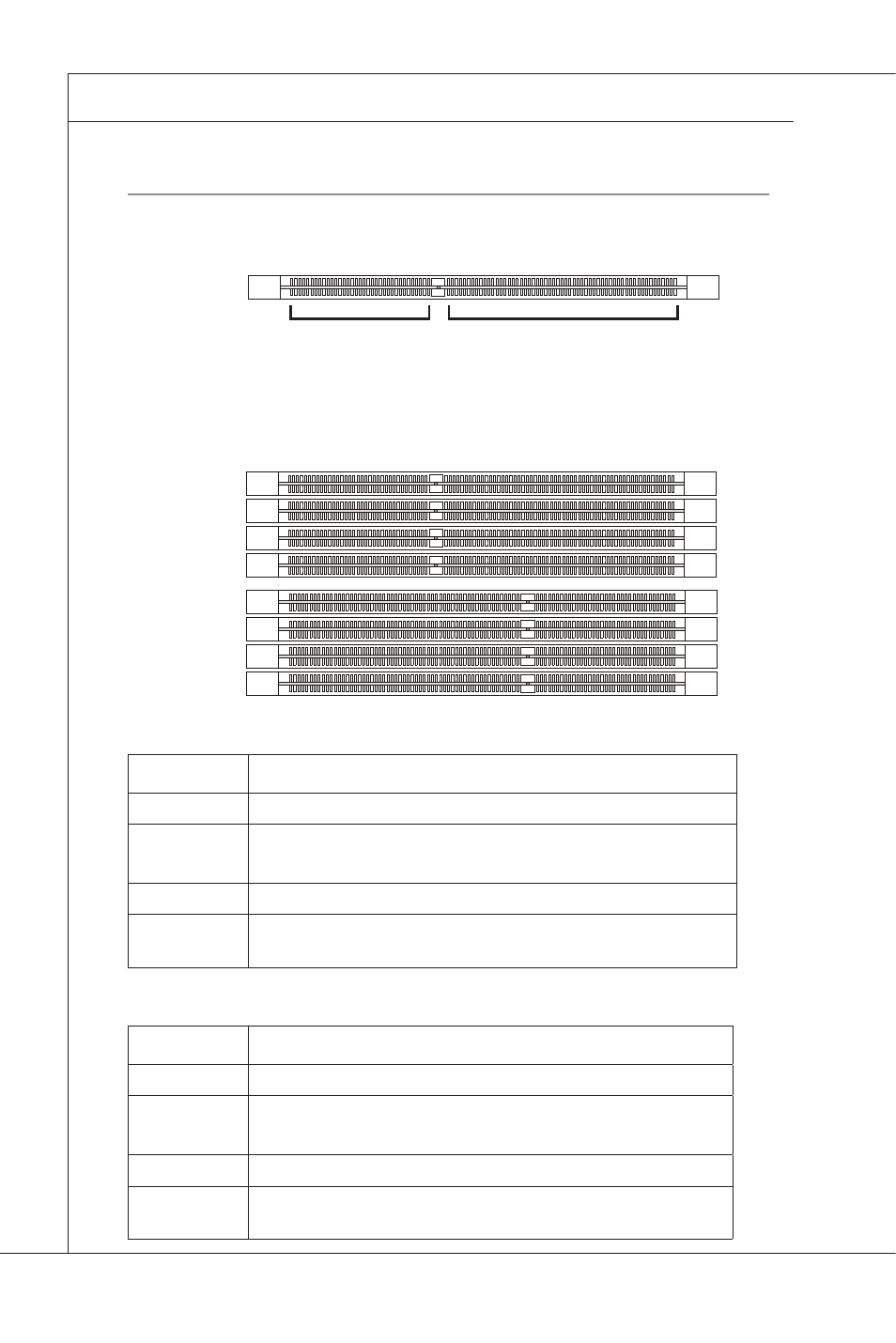

Memory
These DIMM slots are ntended for memory modules.
DDR3
240-pin,
1�5V / 1�35V
48x2=96 pin 72x2=144 pin
Memory Population Rules
In Mult-Channel mode, make sure that you nstall memory modules of the same
type and density n dfferent channel DIMM slots.
C P U 0 _ D IM M _ A 1
C P U 0 _ D IM M _ A 0
C P U 0 _ D IM M _ B 1
C P U 0 _ D IM M _ B 0
C P U 1 _ D IM M _ B 0
C P U 1 _ D IM M _ B 1
C P U 1 _ D IM M _ A 0
C P U 1 _ D IM M _ A 1
For CPU0
Population Rules
1 DIMM CPU0_DIMM_A1
2 DIMMs (1) CPU0_DIMM_A1 + CPU0_DIMM_B1 (Dual-Channel)
(2) CPU0_DIMM_A1 + CPU0_DIMM_A0 (Sngle-Channel)
3 DIMMs CPU0_DIMM_A1 + CPU0_DIMM_A0 + CPU0_DIMM_B1
4 DIMMs CPU0_DIMM_A1 + CPU0_DIMM_A0 + CPU0_DIMM_B1
+ CPU0_DIMM_B0
For CPU1
Population Rules
1 DIMM CPU1_DIMM_A1
2 DIMMs (1) CPU1_DIMM_A1 + CPU1_DIMM_B1 (Dual-Channel)
(2) CPU1_DIMM_A1 + CPU1_DIMM_A0 (Sngle-Channel)
3 DIMMs CPU1_DIMM_A1 + CPU1_DIMM_A0 + CPU1_DIMM_B1
4 DIMMs CPU1_DIMM_A1 + CPU1_DIMM_A0 + CPU1_DIMM_B1
+ CPU1_DIMM_B0
