For Con-Tech Lighting Non-Magenic Metal Puck Lights: LV2-6 Series
www.con-techlighting.com
All specifications subject to change without notice.
1-847-559-5500 This document can be recycled.
2-1/4"
The LV2-6 Series Non-Magnetic Metal Puck Lights are designed for
installation into cabinets, furniture; and non-permanent attachments
to a building’s structure, such as kitchen cabinets, entertainment
centers, bookcases, etc. Adjacent Puck Lights must be spaced to a
minimum of 12" apart. It is recommended that these fixtures be
powered by Con-Tech listed Class II transformers.
INSTALLATION PROCEDURES
• For use with transformer with pre-wired cord and plug set. To prevent
electrical shock, DO NOT use this polarized plug with an extension cord or
outlet unless the blades can be fully inserted to prevent blade exposure.
• Use only insulated staples or plastic ties to secure cords and 12V wiring.
• Route and secure cords/wiring so it cannot be pinched or damaged.
• Always position fixtures so they are accessible for lamp replacement and
lamp replacement markings are visible.
• Not intended for recessed installation in ceiling.
Recessed Installation

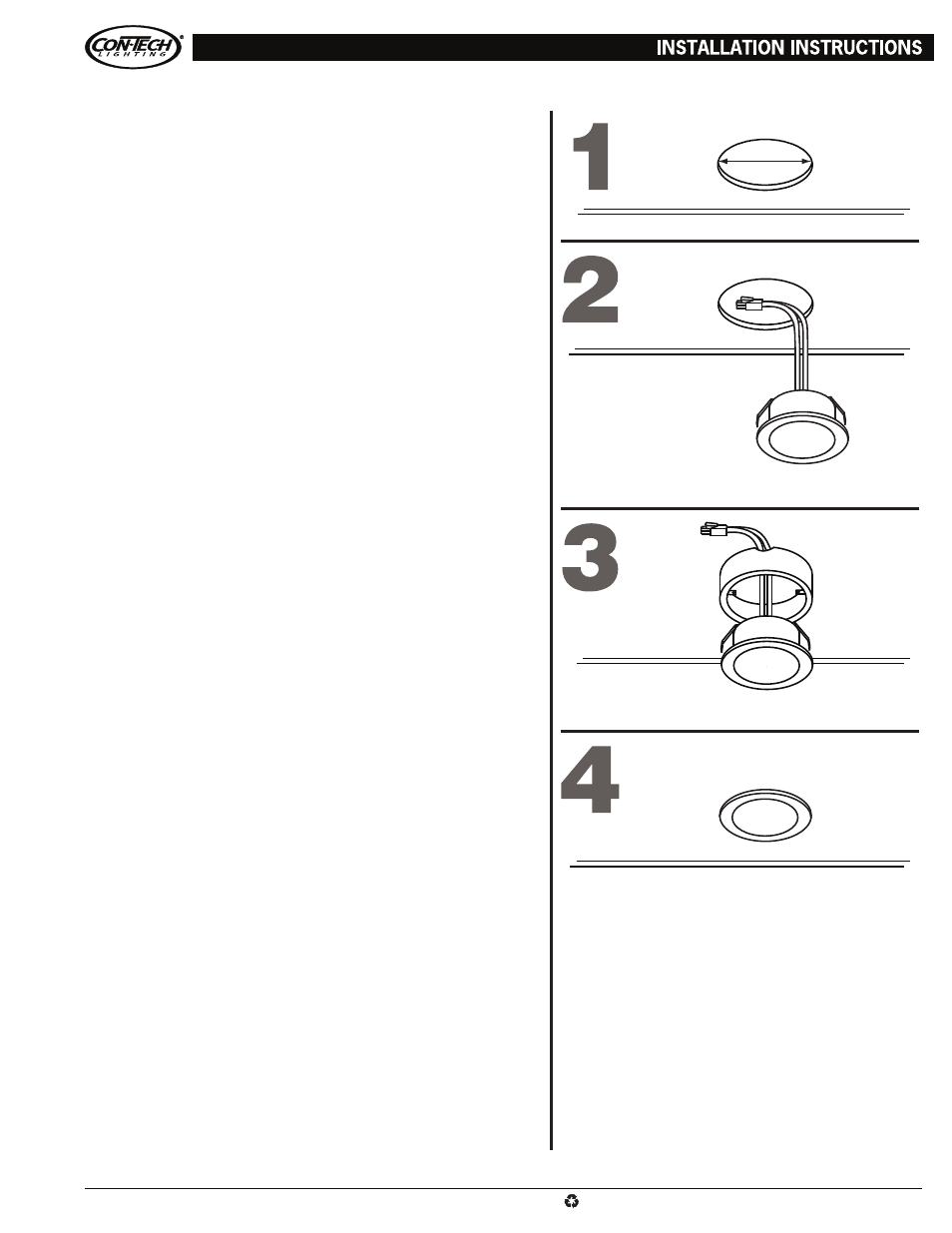

1. Cut a 2-1/4" hole in the mounting surface. (Figure 1)
2. Plug wire leads into the LRT-60-K model transformer, or into the wiring
string provided with the KLV2-6 kit (LRT-60), or the extension accessory
(LWX, LWXS, LWXT). Individual fixtures should be wired back to the
transformer directly, and not wired from fixture to fixture, except with the
wiring string supplied with the KLV2 kits. (Figure 2)
3. Push fixture into the cut hole. The fixture is held firmly in place by the
spring action tabs on the fixture rim. (Figure 4)
4. Transformers should be mounted in an accessible location.
Surface Mount Installation
1. Set mounting screws for Surface Mounting Ring (sold separately), but do
not tighten.
2. Pass wire leads through indented location in rim of Surface Mounting
Ring and plug into transformer, or run wires on the surface to the power
source. Surface wiring must be held in place by insulated staples or
wiring ties. Plug into wiring string provided with KLV2 kit (LRT-60) or
Con-Tech extension accessories (LWX, LWXS, LWXT). (Figure 3)
3. Press fixture into position within the Surface Mounting Ring. (Figure 4)
IMPORTANT SAFETY INSTRUCTIONS:
• Read all the instructions before installation. Save instructions for later use.
• Turn off power at fuse or circuit breaker box before installation or before doing
any maintenance work.
• Product must be grounded to avoid potential electric shock and any other
potential hazards.
• Product must be mounted in locations and at heights and in a manner consistent
with its intended use, and in compliance with National Electrical Code and local
codes. Use of accessory equipment is not recommended.
• Installing contrary to instructions may cause unsafe conditions.
• Do not block light from the trim aperture, in whole or in part, as this may cause
unsafe conditions.
• Warning: Risk of fire. Most dwellings built before 1985 have supply wire rated
at 60°C. Consult a qualified electrician before installation.
• To avoid hazards to children, account for all parts and properly dispose of all
packing materials.
• Call the Technical Support department at Con-Tech Lighting with any installation
questions: 847.559.5500.
