©2006 Vaddio, Inc. – All Rights Reserved - Vaddio PreVIEW Quad 4 LCD Rack Mount Monitor Installation and User Guide

Photographs courtesy of Lehto and Wright featuring Matt Jacobs (lehtoandwright.com)

Installation and User Guide

V

ADDIO

P

RE

VIEW™

Q

UAD

4

LCD

R

ACK

M

OUNT

M

ONITOR

PreVIEW Quad 4 (Part Number 999-5500-004)

PreVIEW Quad 4 Overview:

The Vaddio PreVIEW Quad 4 LCD Rack Mount Monitor
features four 4” (10.16cm) high resolution active matrix LCD
Monitors for exceptional video clarity and color handling. The
PreVIEW Quad 4 is a simple and straight forward four LCD
rack mount monitor without controls for previewing general
shots and areas without the need for extreme detail.
All four of the 480 x 234 resolution LCD panels on the Quad 4
have their own input and amplified loop through on BNC
connectors for ease of configuring video production systems.
Constructed of heavy gauge aluminum and steel, the enclosure is both tough and attractive and can be a tilted ± 25° for
setting up optimum viewing angles. The PreVIEW Quad 4 is set-up for auto recognition of NTSC and PAL video formats and
unlike many of the rack mount LCD monitors available today, the Vaddio PreVIEW Monitors are both FCC and CE certified.
The price/performance and overall value of the Vaddio PreVIEW Series LCD Rack Mount Monitors is unmatched in today’s
market.


UNPACKING
Each PreVIEW Quad 4 system contains the following items, please unpack and identify the following parts: One (1)
PreVIEW Quad 4 Rack Mount LCD Monitor, One (1) 12 VDC, 3.8 Amp Power Supply, AC Cord Set with US type and Euro
type cable and Documentation.

PreVIEW Quad 4:

Front Panel (tilted up approx 5°, simulated video feeds):

















Table 1: General Specifications

Specification

Vaddio PreVIEW Quad 4 LCD Rack Mount Monitor

Displays

Four (4), 4” Diagonal LCD Panels

Panel Resolution

480 x 234

Active Area

8.21cm x 6.18cm

Dot Pitch

0.171mm × 0.264mm

Brightness and Contrast Ratio

250 (cd/m

2

), 350:1

Video Signals

NTSC & PAL, auto-recognition

Video Inputs

Four (4) on BNC Connectors, 1 V p-p, 75 ohm

Video Outputs

Looping Outputs (active components) on four (4) BNC Connectors

Dimensions

19.125” (48.58cm) W x 3.5” (8.89cm) H x 2.75” (6.985cm) D

Front Panel Controls

One Master On/Off Switch for all four (4) monitors with integrated Green LED

Compliance

FCC and CE (carries both marks)

Camera and Electronic Products for Integrators

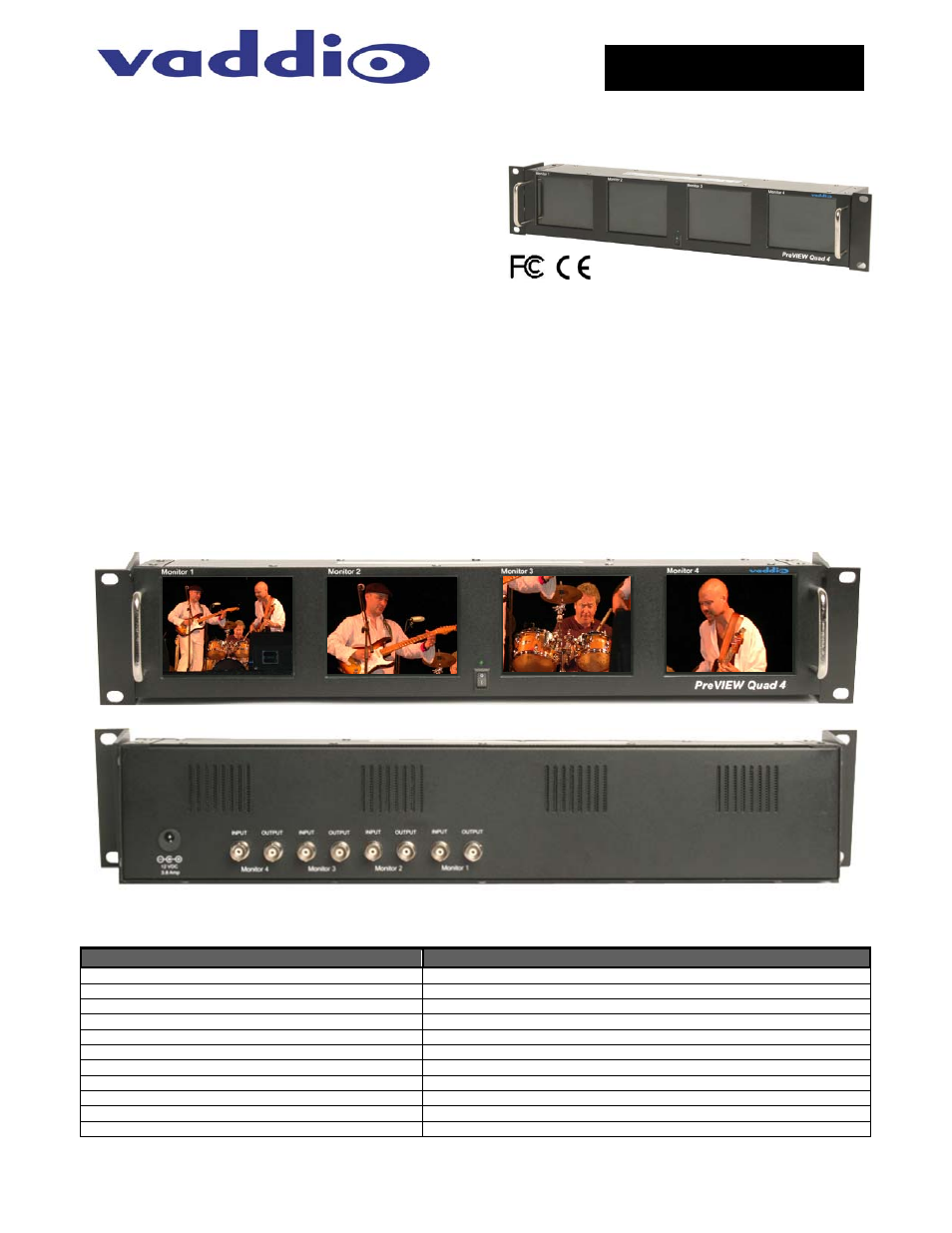

Figure 1:

PreVIEW Quad 4 (top) 2RU enclosure is FCC and CE
certified and carries the FCC and CE marks.

Figure 2:

Front panel of PreVIEW Quad 4 with handles for positioning and master on/off switch.

Figure 3:

Back Panel of PreVIEW Quad 4 showing 2-BNC connectors (in & out) per LCD and power connector.
