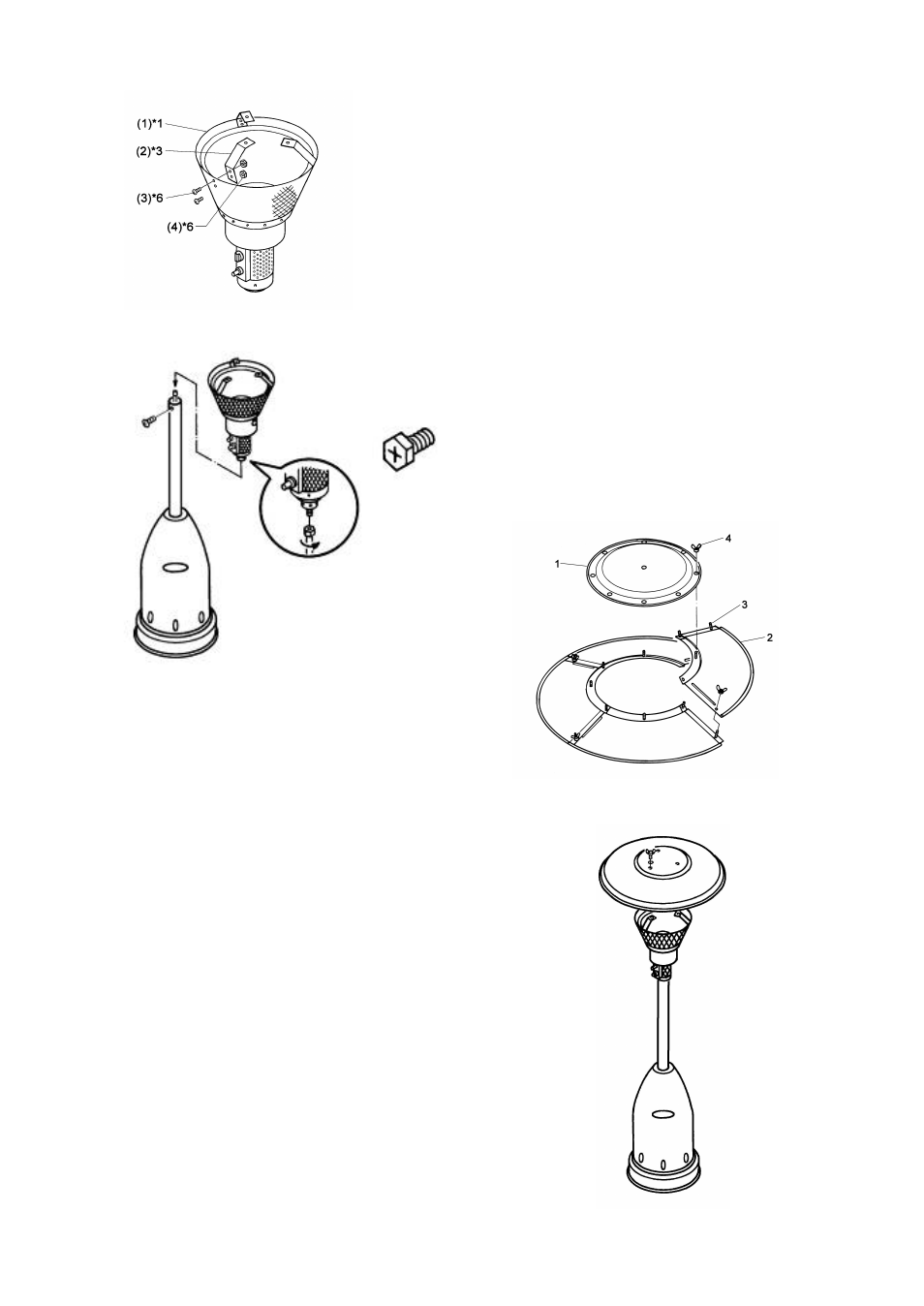

Before assembling the burner head on
post, please fix the 3 supported brackets
onto burner head for assembling reflector
D
Slide hose through bottom of post and
connect to burner head.
Then fasten burner on post with the 4
Philips mechanical screws M6x10mm.
E
Sectional reflector option ONLY
Assemble the reflector pieces to the
middle piece using the small washers and
the acorn nuts.
F
Place a steel washer over each bolt on
the burner top (figure 8)
Lay reflector over the burner top bolts
add another steel washer to each bolt.
