INSTALLATION GUIDE
Install the unit
Important:
Remove the two screws on the top of the unit
before installation.
Otherwise, the player will not work.
Installing the panel
• Hold the panel and ensure the panel faces
dwonward, and at an angle set one side of
the panel in the panel bracket. Press the
other side of the panel until it locks.
• Press the top of panel until it locks.
Mounting bolt
rubber cushion.
1
2
3
Remove the
two screws.

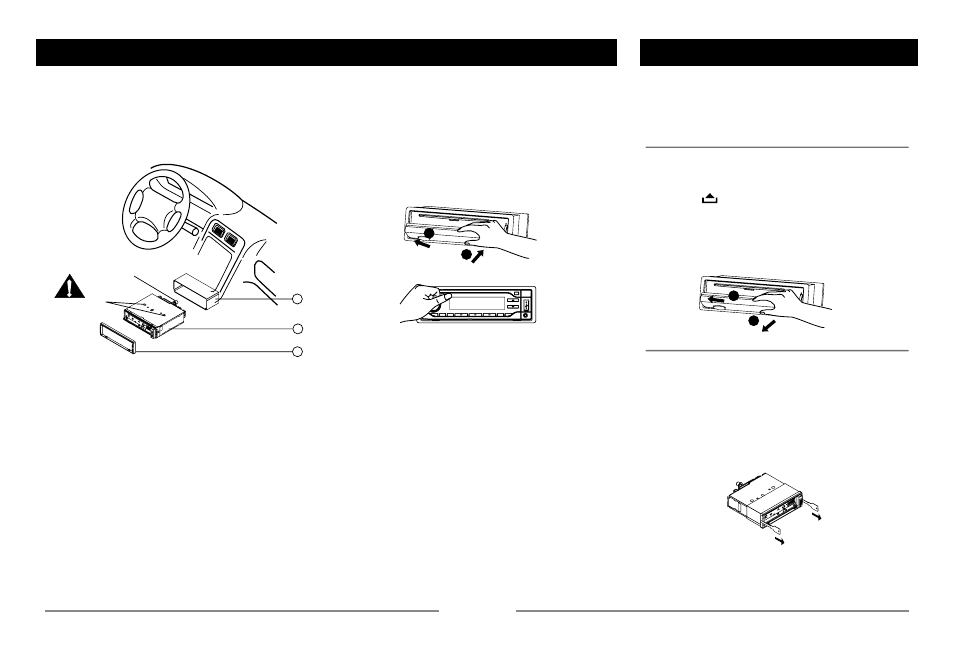

1. Inset mounting collar into the
dashboard, and bend the mounting tabs
out with a screwdriver.
Make sure that lock lever is
flush with the mounting collar
(not projecting outward).
2. Secure the rear of the unit.
After fixing mounting bolt and power
connector, fix the rear of the unit to the car
body by rubber cushion.
3. Insert trim plate.
ANTI-THEFT
This unit is designed with a flip-down
detachable panel.
The panel can be detached and taken with
you, helping to deter theft.
Removing the panel
• Switch off the power of the unit.
• Press to flip down the panel.
• Hold right part of the panel, slightly push it
to the left side, then pull it out.
• Place the panel into the case and take it
with you when you leave the car.
1
2
Removing the unit
1. Switch the power off.
1. Remove the panel and the trim plate.
2. Insert both T-Keys into hole on the front
of the set until they lock.
3. Pull out the unit.
1
2
