P8Z77-I DELUXE/WD 2-13
Chapter 2
2.3 Motherboard rear and audio connections

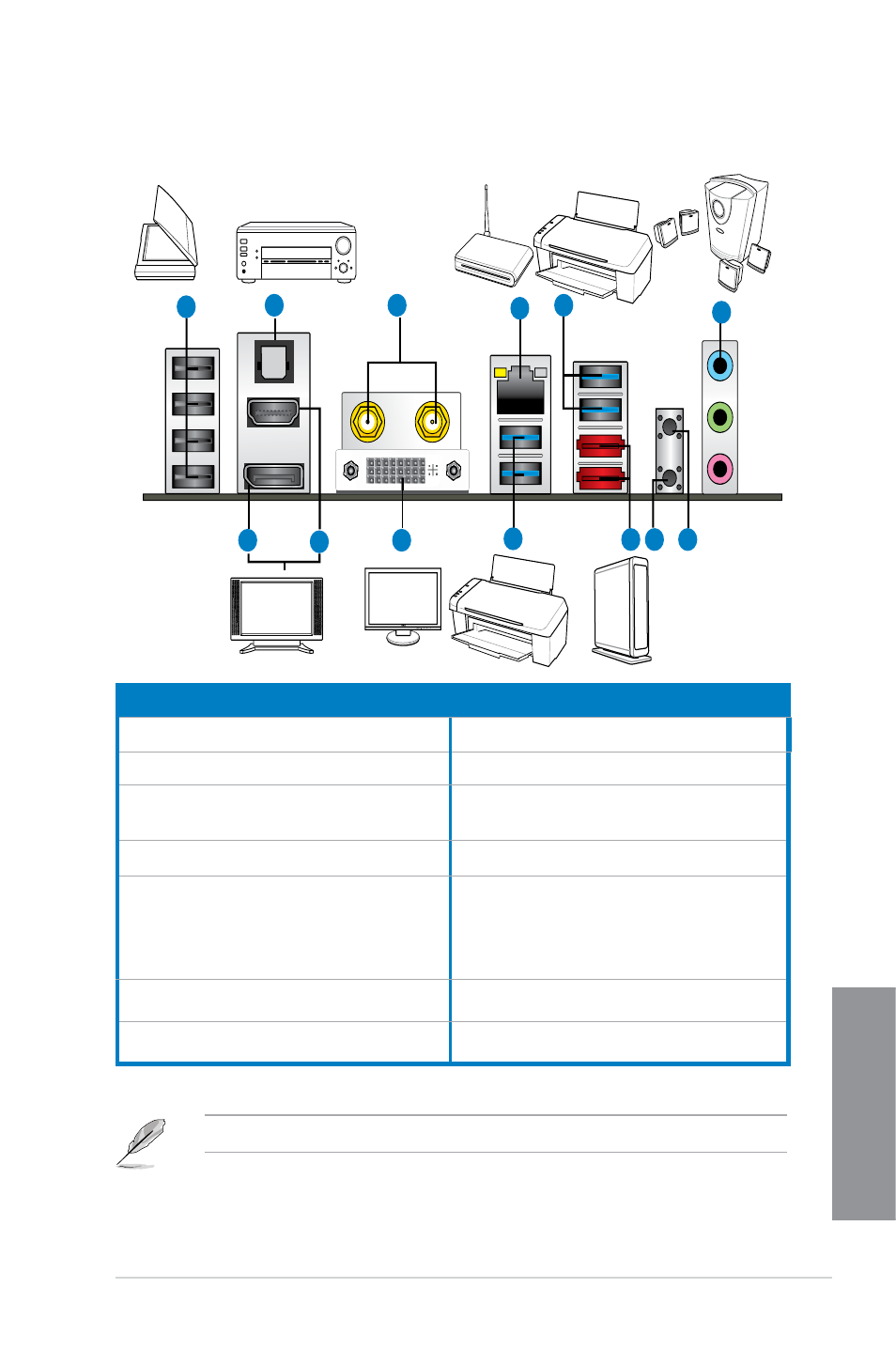

2.3.1 Rear I/O connection
*, ** and ***: Refer to the tables on the next page for LAN port LEDs, and audio port definitions.
1 2 3 4 5
6
7 9 12 10 11 8 13
Due to Intel limitations, USB3_1-2 is only supported in Windows 7 ® operating system.
Rear panel connectors
1. USB 2.0 ports 1-4 8. Clear CMOS button
2. Optical S/PDIF Out port 9. External SATA ports 1 and 2
3. Modified antenna ports (Wi-Fi 802.11
and Bluetooth v4.0/3.0+HS)*
10. Asmedia USB 3.0 ports 1 and 2,
support ASUS USB 3.0 UASP Mode
4. Intel ® LAN (RJ-45) port** 11. DVI-I port
5. Intel ® USB 3.0 ports 1 and 2, support
ASUS USB 3.0 UASP, bottom port
supports USB BIOS Flashback and
USB Charger+
12. HDMI port
6. Audio I/O ports*** 13. DisplayPort
7. USB BIOS Flashback button
