-7-
LEFT SPEAKER
CAR STEREO
GROUND
FUSE FUSE
REM BATT GND
LEFT RIGHT
BATTERY
FOR 12 VOLT USE ONLY
AUTO-ANTENNA LEAD
USE # 16 GAUGE WIRE
RIGHT SPEAKER
3
GROUND METAL
SECTION OF VEHICLE
EXISTING SCREW OR BOLT CLEAN PAINT, RUST, DIRT
OR GREASE FROM AREA FOR GOOD CONNECTION.

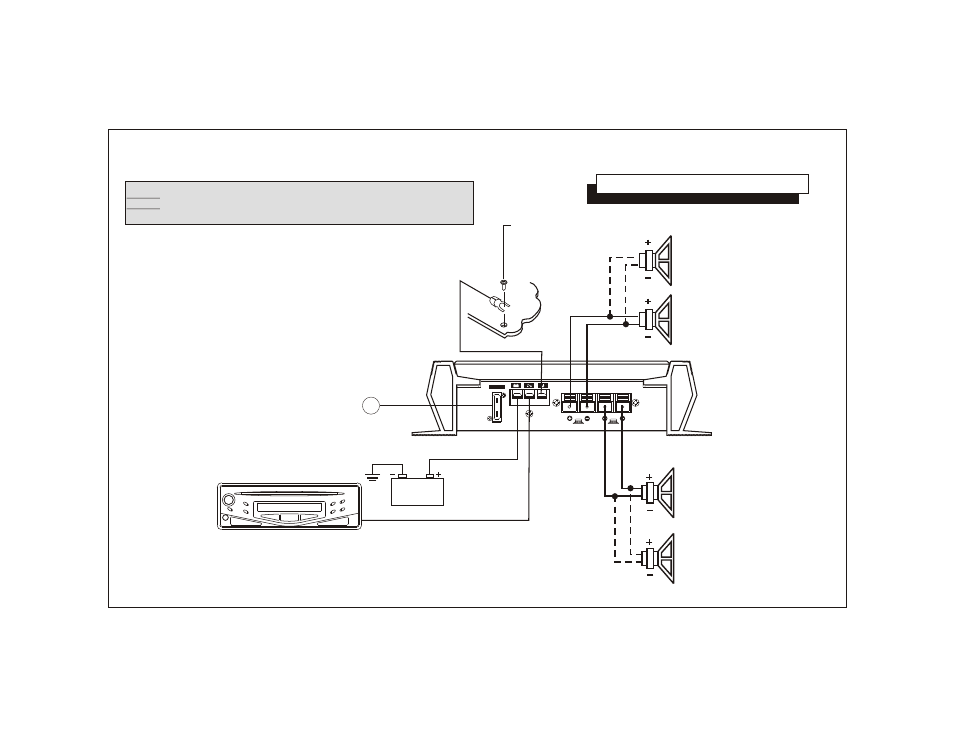

OUTPUT WIRING DIAGRAM
WARNING!
NEVER COMBINE (BRIDGE ) OUTPUTS FOR USE WITH 2 SPEAKER.
NEVER GROUND NEGATIVE SPEAKER LEADS TO CHASSIS GROUND.
FAILURE TO WIRE CORRECTLY MAY CAUSE DAMAGE TO THE AMPLIFIER.
