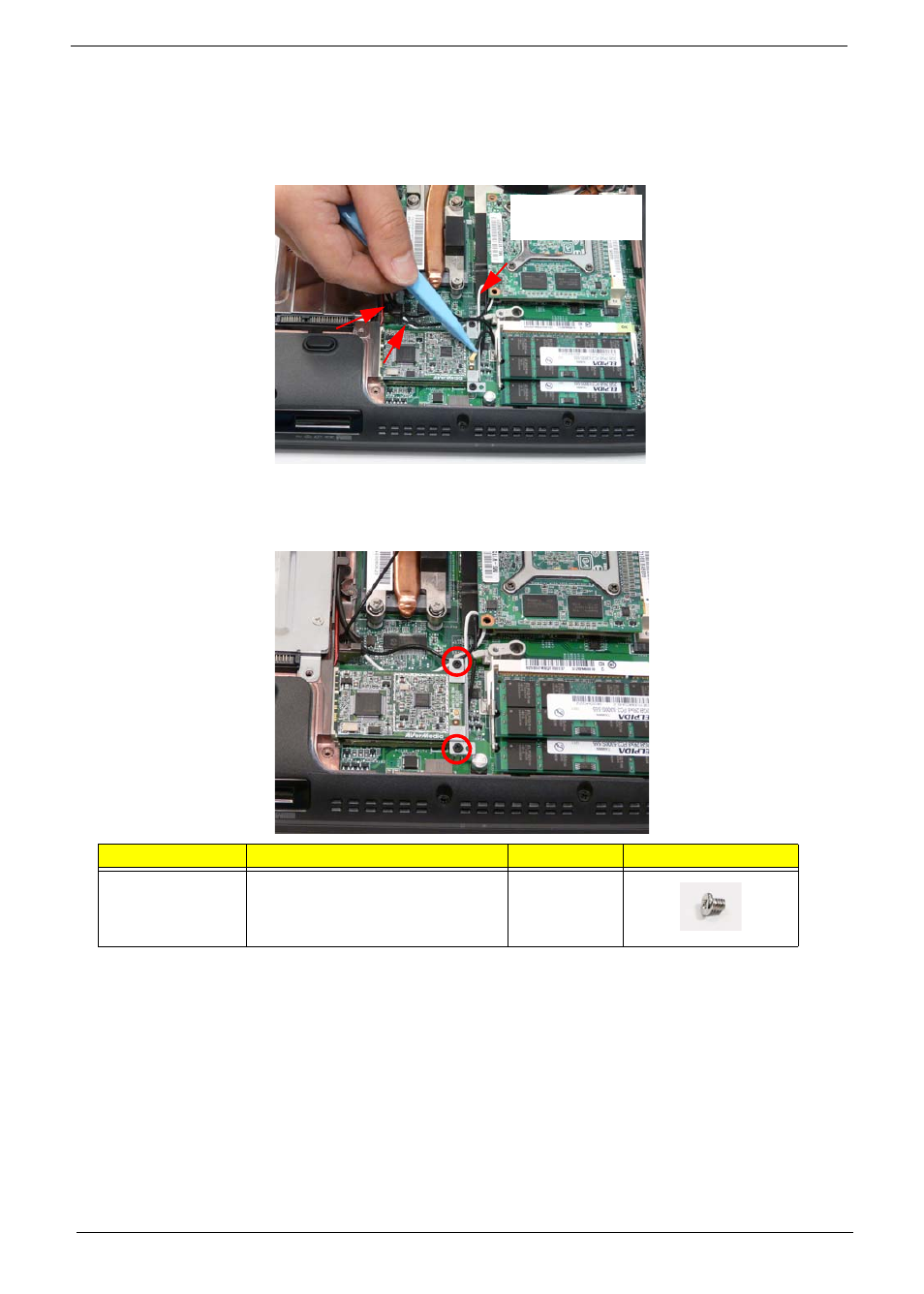

Removing the TV Tuner Module
1. See “Removing the Battery Pack” on page 50.
2. Remove the Lower cover. See “Removing the Lower Covers” on page 53.
3. Disconnect the antenna cable from the TV Tuner board as shown.
NOTE: To ensure proper assembly, the antenna cable must be installed as shown.
4. Move the antenna cables away and remove the two screws to release the TV Tuner module and bracket
assembly.
Step Size Quantity Screw Type
TV Tuner Module M2.0*3.0-I(BKAG)(NYLOK) IRON 2
Replace cabling as
shown.
