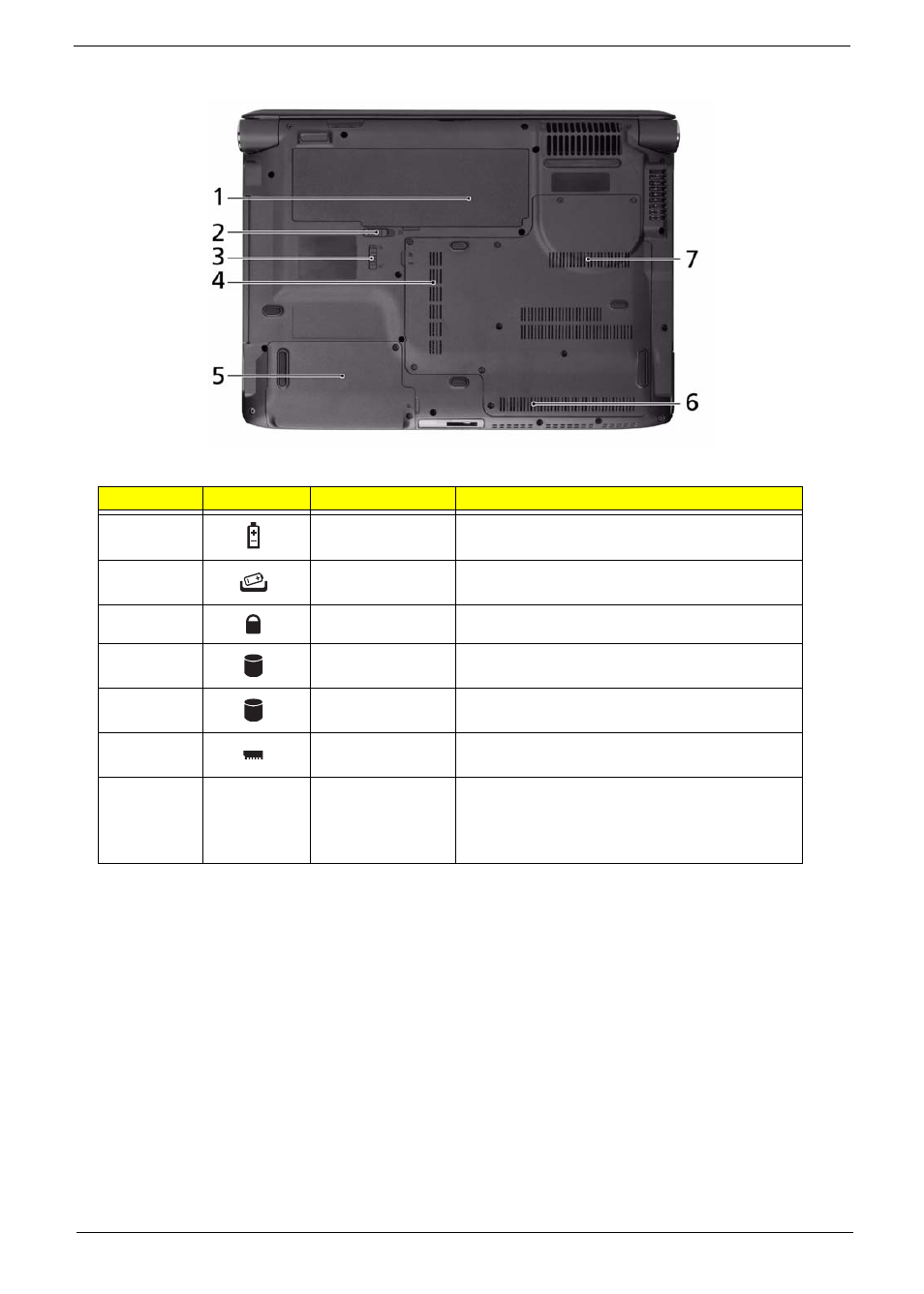

Bottom View
No. Icon Item Description
1 Battery bay Houses the computer's battery pack.
2 Battery release
latch Releases the battery for removal.
3 Battery lock Locks the battery in position.
4 Hard disk bay-Main Houses the computer's hard disk (secured with
screws).
5 Hard disk bay-
Secondary Houses the computer's hard disk (secured with
screws) (only for certain models).
6 Memory
compartment Houses the computer's main memory.
7 Ventilation slots
and cooling fan Enable the computer to stay cool, even after
prolonged use.
Note: Do not cover or obstruct the opening of the
fan.
