Sony HT-SS370HP - Manual (Page 18)

18 US

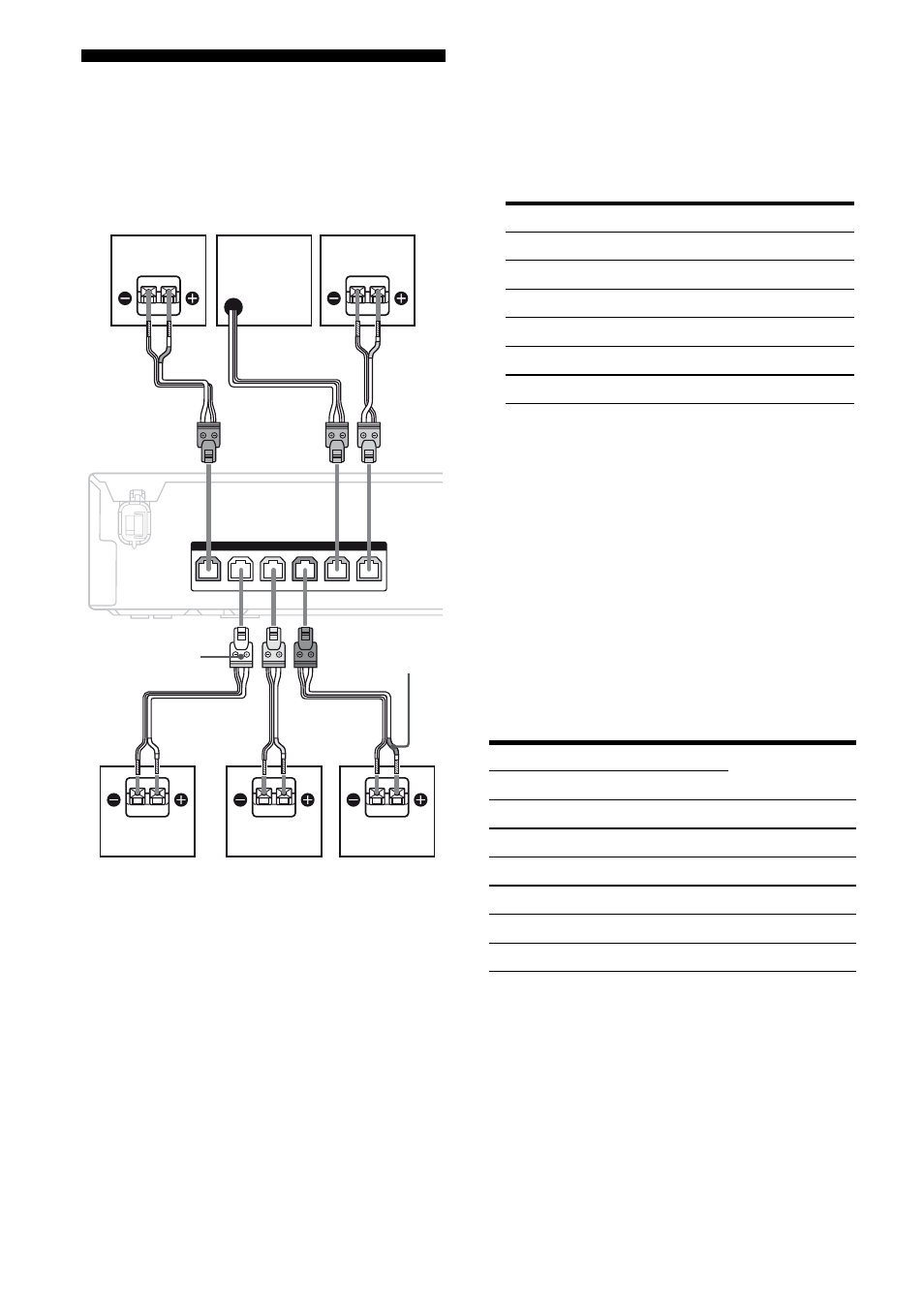

2: Connecting the
speakers
Before connecting the cords, be sure to
disconnect the AC power cord.
AFront speaker (left)
BFront speaker (right)
CCenter speaker
DSurround speaker (left)
ESurround speaker (right)
FSubwoofer
Notes on speaker cords
• The connector of the speaker cords are the
same color as the speaker jack to be
connected. When connecting a speaker cord,
be sure to match the colored connector to the
speaker jack on the receiver:
• Be sure to match the speaker cords to the
appropriate terminals on the speakers:
– the speaker cord with the color tube to e
terminal, and the speaker cord without the
color tube to E terminal (for HT-SS370).
– the speaker cord with a stripe line to E
terminal, and the speaker cord without a
stripe line to e terminal (for HT-SF370).
To connect the speakers
correctly
Check the speaker type by referring to the
speaker label at the rear panel of the speakers.
* This speaker does not have character on the
speaker label. For details on the speaker type, see
page 6 (for HT-SF370) or page 7 (for HT-SS370).
FRONT R
SPEAKERS
CENTER FRONT L SUR R SUR L SUBWOOFER
E
B
A Speaker cord (supplied)
A
A
Connector
F C
D
A
A A
Color tube
Connector Speaker jack
Red FRONT R
White FRONT L
Grey SUR R
Blue SUR L
Purple SUBWOOFER
Green CENTER
Character on speaker label Speaker type
HT-SF370 HT-SS370
L FRONT L Front left
R FRONT R Front right
–* CENTER Center
SL SUR L Surround left
SR SUR R Surround right
–* –* Subwoofer
