2. Locating Inputs and Outputs

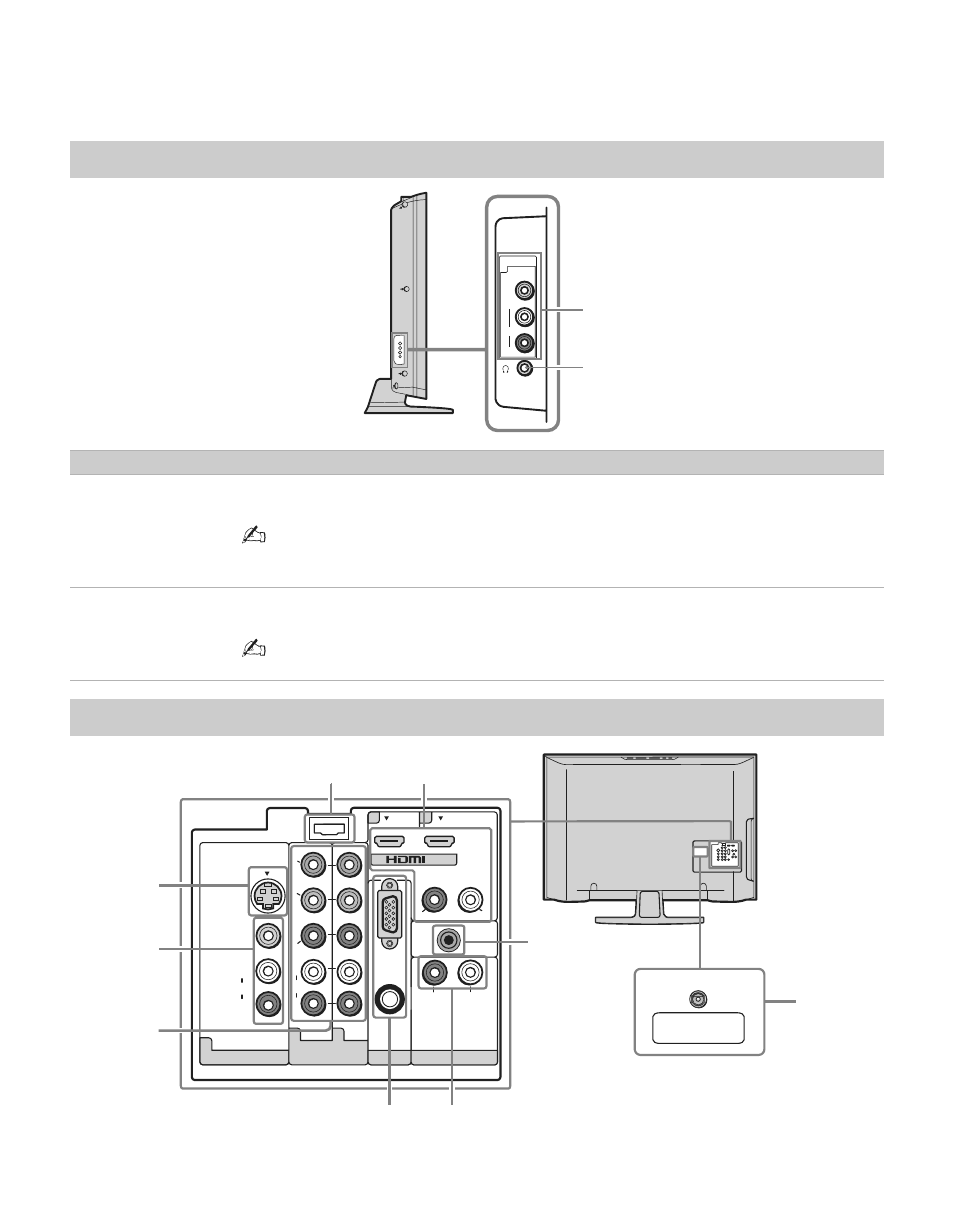

Side Panel
Item Description
1 VIDEO IN 2
VIDEO/
L (MONO) -
AUDIO - R Connects to the composite video and audio output jacks on your camcorder or other video
equipment such as a DVD or video game equipment.
• If you have mono equipment, connect its audio output jack to the TV’s L (MONO) audio
input jack.
2 Headphone
jack Connects to your headphones. If your headphones do not match the jack, use a suitable plug
adapter (not supplied).
• While headphones are connected, the TV speakers are muted.
Rear Panel
VIDEO IN
2
VIDEO
(MONO)
AUDIO
L
R
2
1
VIDEO IN
VIDEO
AUDIO AUDIO
AUDIO
(MONO)
L
R
S VIDEO
SE RV IC E
ON LY
PC IN
COMPONENT IN
(1080i/720p/480p/480i)
Y
P B
P R
L
R
L R
L R
A UDI O
A UDIO OUT (FIX )
RGB
DIGITAL
AUDIO
OUT
(COAXIAL)
IN
2 1
1
1
2
CABLE/
ANTENNA
3
4
9
7
8
5
6
1 2
