Dimensions drawings – Anaheim Bilevel Step Motor Driver BLD72 User Manual

Page 8

Text mode
Original mode

Note: The BLD72 and BLD72-1 are the same except for the base plate. The BLD72 is a replacement
driver for use in Driver Packs. The BLD72-1 is a modular driver which has a larger base plate.

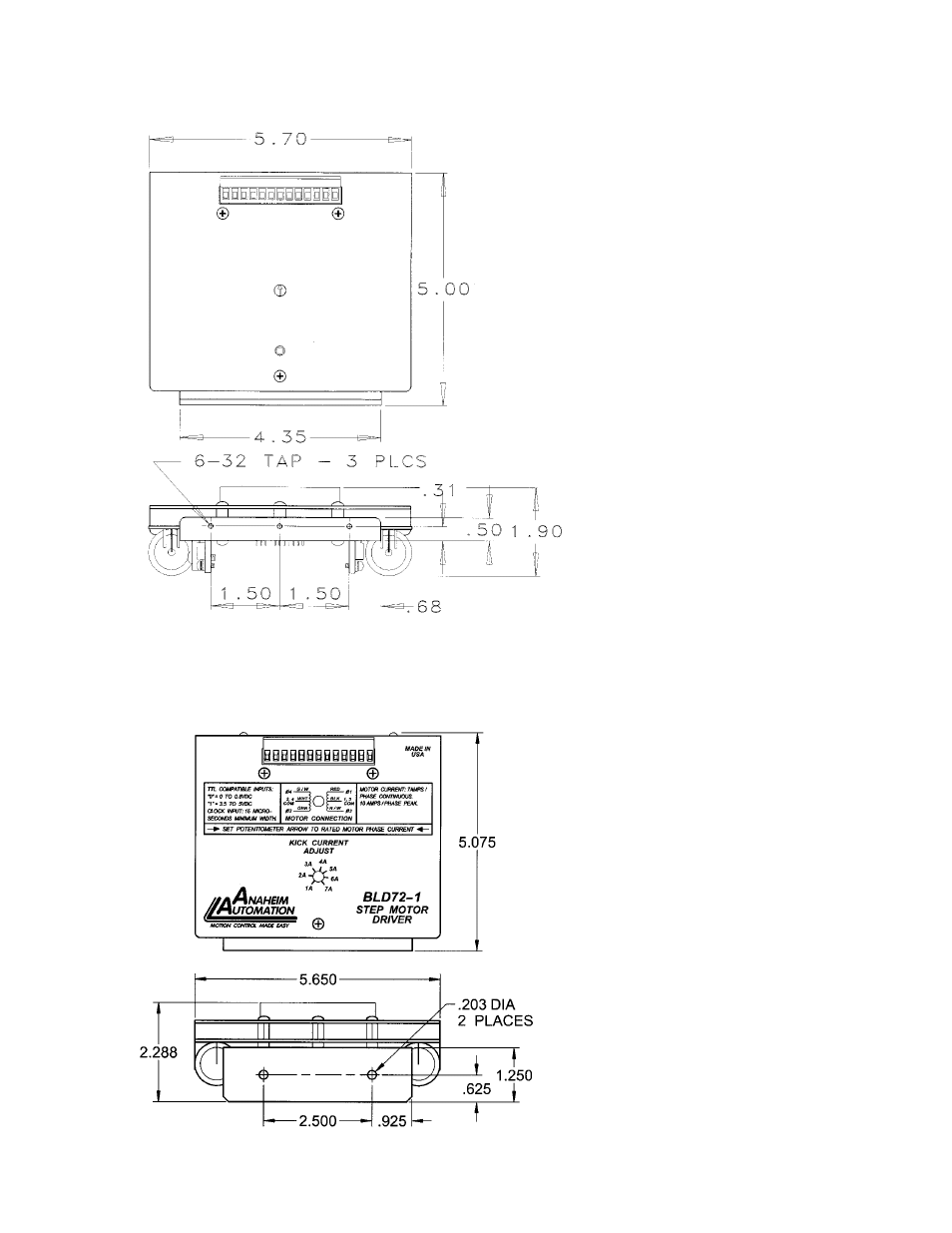

Dimensions Drawings

Figure 11: BLD72-1 Dimensions

Figure 10: BLD72 Dimensions
