– 8
ṇ
Warning
Do not reuse the main filter element after it
has been removed from the appliance.

Switch off the appliance using the ON/
OFF switch and separate it from the
mains.
 At the lower end, loosen and pull out the
hose to the suction turbine.

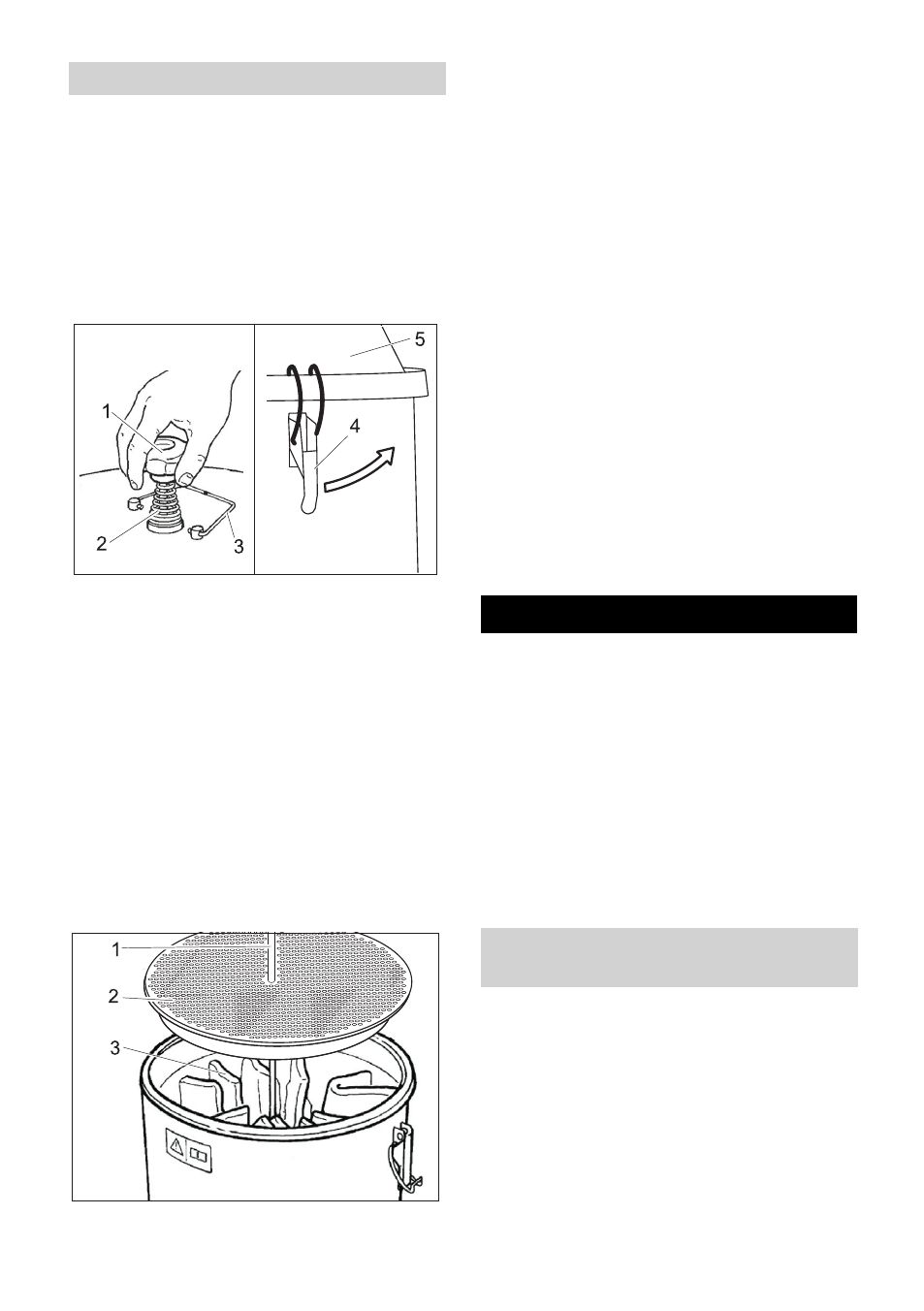

1 Handle for filter cleaning
2 Spring
3 Fastener for filter dedusting
4 Lock
5 Lid of filter chamber

Tilt the fastener for filter dedusting to-
wards the side.
 Unscrew the handle for filter cleaning.
 Remove the spring.
 Unscrew the nut below the spring (you
will need a spanner with width 27 mm).
 Open locks.
 Remove the lid of the filter chamber.
1 Frame
2 H filter cartridge
3 M filter

Remove the H filter cartridge upward.
 Immediately place the H filter cartridge
into the included bag and close it after
you remove it.
 Dispose of the used H filter cartridge in
a dust-tight bag according to the statu-
tory provisions.
 Open the knot of the tapes on the filter
and remove the frame.
 Remove the M filter.
 Immediately place the M filter into the
included bag and close it after you re-
move it.
 Dispose off the used M filter in a dust-
tight bag according to the statutory pro-
visions.
 Insert and secure the new filter in the re-
verse sequence of steps.
ƽ
Danger
First pull out the plug from the mains before
carrying out any tasks on the machine.
ƽ
Danger
Have all checks and works on electrical
parts parts performed by an expert.
Note: In case of a failure (e.g. filter break-
age) the appliance must be turned off im-
mediately. The failure must be remedied
before the appliance is put into operation
again.
No electrical voltage.

Check the receptacle and the fuse of
the power supply.
 Check the power cable and the power
plug of the device.
Protective motor switch was triggered.

Reset switch.
Changing/ replacing filter
Troubleshooting
Motor (suction turbine) does not
start
