– 4
1 Hose to the suction turbine
2 Handle for filter cleaning
3 Lid of filter chamber
4 Filter chamber
5 Connection neck for accessories
6 Manometer
7 Container for vaccuming material
8 Lever for unlocking the vacuuming ma-
terial container
9 Guiding rolls with fixed position brake
10 Cap
11 Sliding handle
12 Silencer
13 Diffuser
14 Control board
15 ON/OFF switch
16 Indicator lamp "Mains voltage present"
17 Indicator lamp "Wrong rotation direc-
tion"

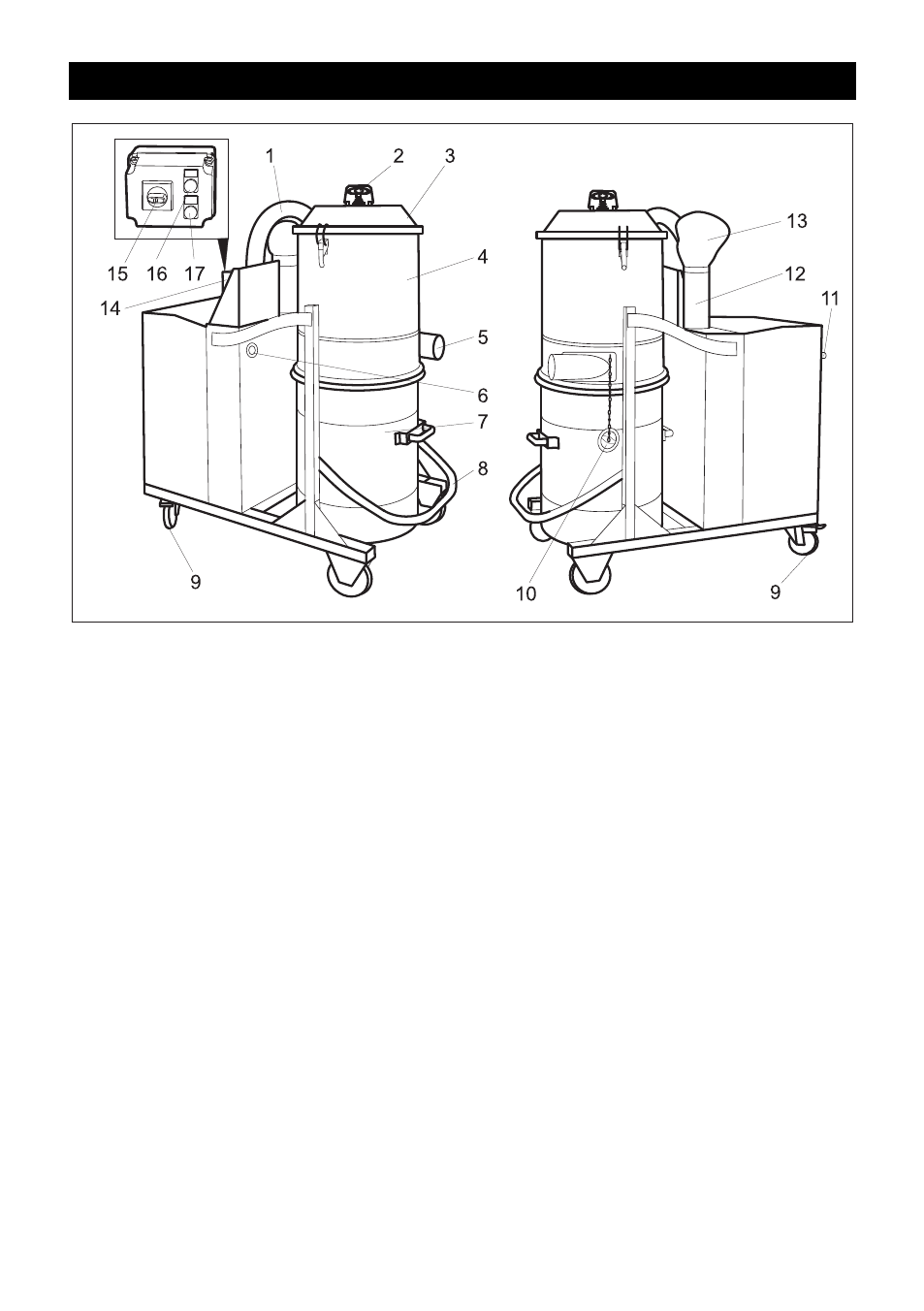

Device elements
