Setup
Depending on the reader board, select the appropriate setup.

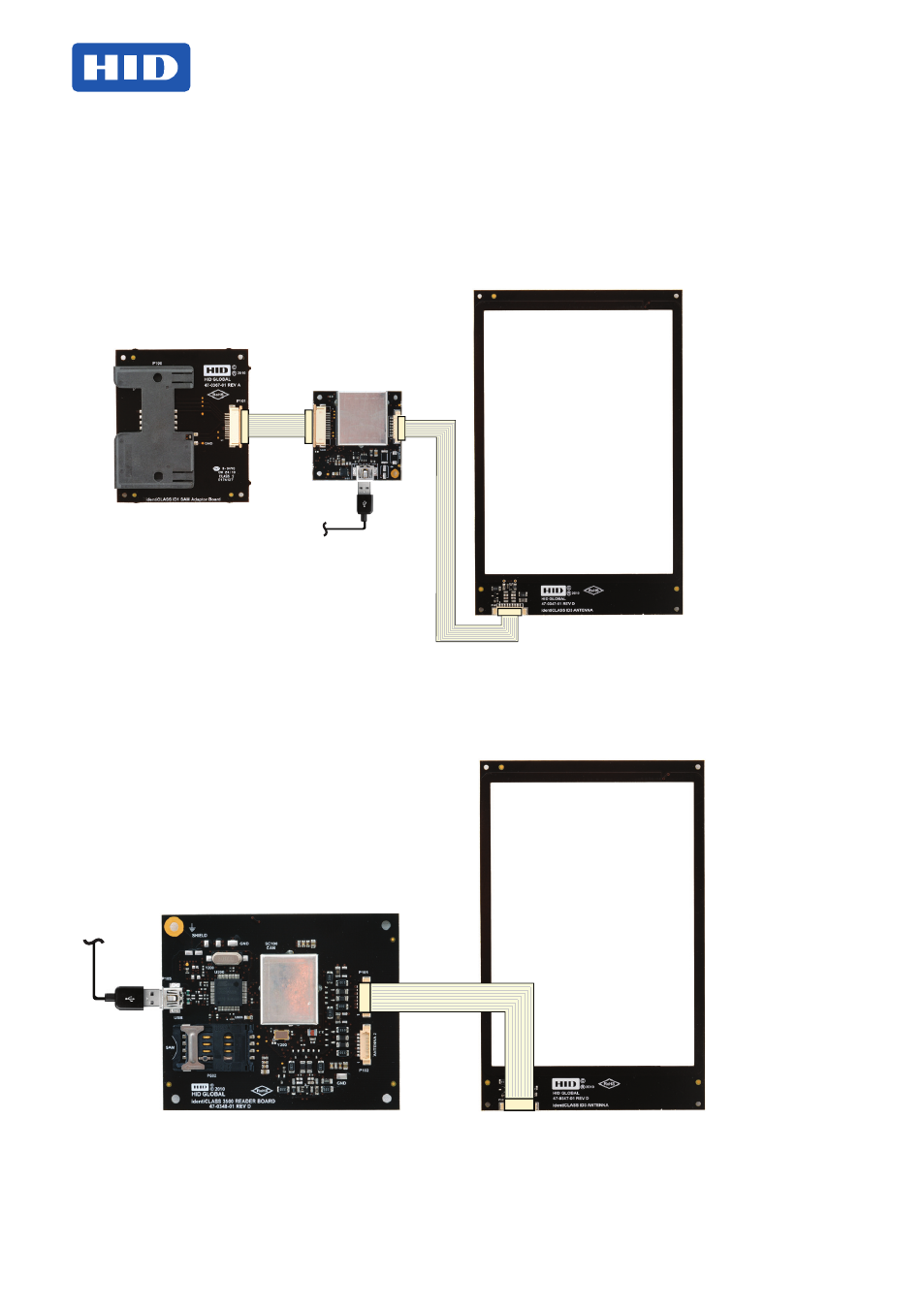

3300 Reader Core Setup
Connect the 3300 Reader Core to the ID3 Antenna. Then, connect the Smart Card
Adapter to the 3300 Reader Core. This layout provides a contact card and contactless
card reader. Optionally, mount an optical reader in the center of the ID3 Antenna.
3300 Reader
Core
Smart Card Adapter
(Full Size)
ID3 Large Antenna
USB
3500 Reader Board
Connect the 3500 Reader Board to the ID3 Large Antenna. This layout provides for two
antennas next to each other. Present a passport in either orientation with this layout.
Optionally, mount an optical reader in the center of the ID3 Antenna.
ID3 Large Antenna 3500 Reader Board
USB
