2
GB
! Before operating your new appliance please read
this instruction booklet carefully. It contains
important information concerning the safe installation
and operation of the appliance.
! Please keep these operating instructions for future
reference. Make sure that the instructions are kept
with the appliance if it is sold, given away or moved.
! The appliance must be installed by a qualified
professional according to the instructions provided.
! Any necessary adjustment or maintenance must be
performed after the cooker has been disconnected
from the electricity supply.
Positioning and levelling
! It is possible to install the appliance alongside
cupboards whose height does not exceed that of the
hob surface.
! Make sure that the wall in contact with the beck of
the appliance is made from a non-flammable, heat-
resistant material (T 90°C).
To install the appliance correctly:
• Place it in the kitchen, dining room or the bed-sit
(not in the bathroom).
• If the top of the hob is higher than the cupboards,
the appliance must be installed at least 200 mm
away from them.

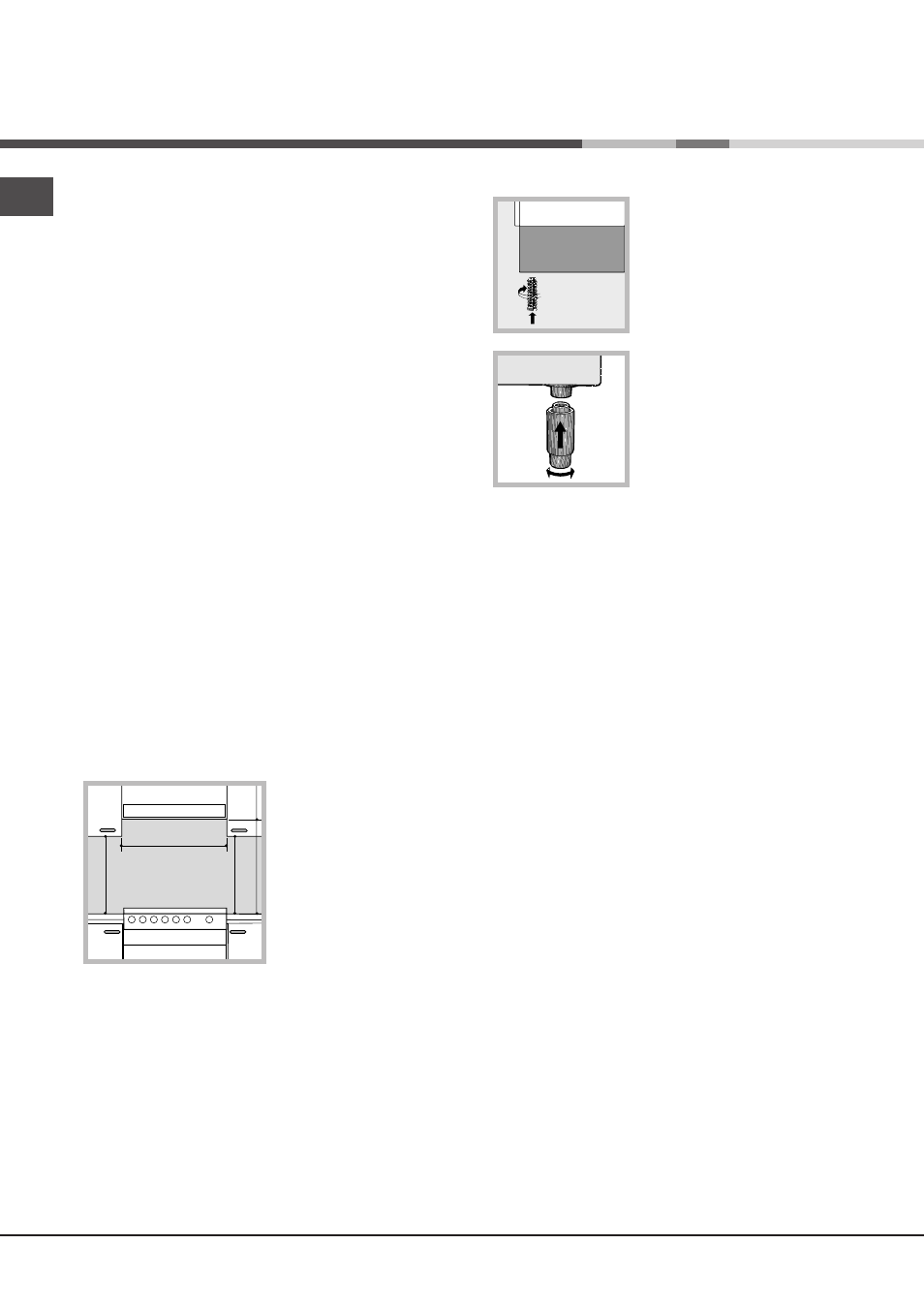

• If the cooker is
installed underneath a
wall cabinet, there must
be a minimum distance
of 420 mm between this
cabinet and the top of
the hob.
This distance should be
increased to 700 mm if
the wall cabinets are
flammable (
see figure).
• Do not position blinds behind the cooker or less
than 200 mm away from its sides.
• Any hoods must be installed according to the
instructions listed in the relevant operating manual.
Levelling
If it is necessary to level the
appliance, screw the
adjustable feet into the places
provided on each corner of the
base of the cooker (
see
figure).
The legs* fit into the slots on
the underside of the base of
the cooker.
Electrical connection
lectric cookers come without a power supply cable. The cooker
is designed to operate on an electricity supply which conforms
to the electrical data shown on the Rating Plate. The cooker
can be connected to the mains only after removing the back
panel of the cooker itself with a screwdriver.
.B.:
the following installation procedure must be carried out
by a qualified electrician. The electrical installation must
comply with the IEE Regulations, Building & local By-Lays.
For the installation of the feeding cable carry out the following
operations:
 Unscrew screw “V” (see fig. A)
 Pull and open the junction blok lid
Important: the wires in the mains lead are coloured in
accordance with the following code:
Green & Yellow Earth
Blue Neutral
Brown Live
As the colours of the wires in the mains lead may not
correspond with the coloured markings identifying the terminals
in your plug, proceed as follows:
Green & Yellow wire to terminal marked “E” or
6 6 6 6 6
or coloured
Green or Green & Yellow.
Brown wire to terminal marked “L” or coloured Red.
Blue wire to terminal marked “N” or coloured Black (see fig.
B).
 fix the feeding cable in the special cable stop and close
the cover.
N.B.:
the power supply cable must have these minimum
requirements:
Type:
H05RR-F
Section: 3x4 mm 2
Section: 3x4 mm 2
Installation
HOOD
420
Min.
min.
650
mm. with hood
min.
700
mm. without hood
mm.
600 Min. mm.
420
Min.
mm.
