72 series, Vp-1 inverter, System programming - menu 1 – Ultra Start 72 SERIES 3272 User Manual

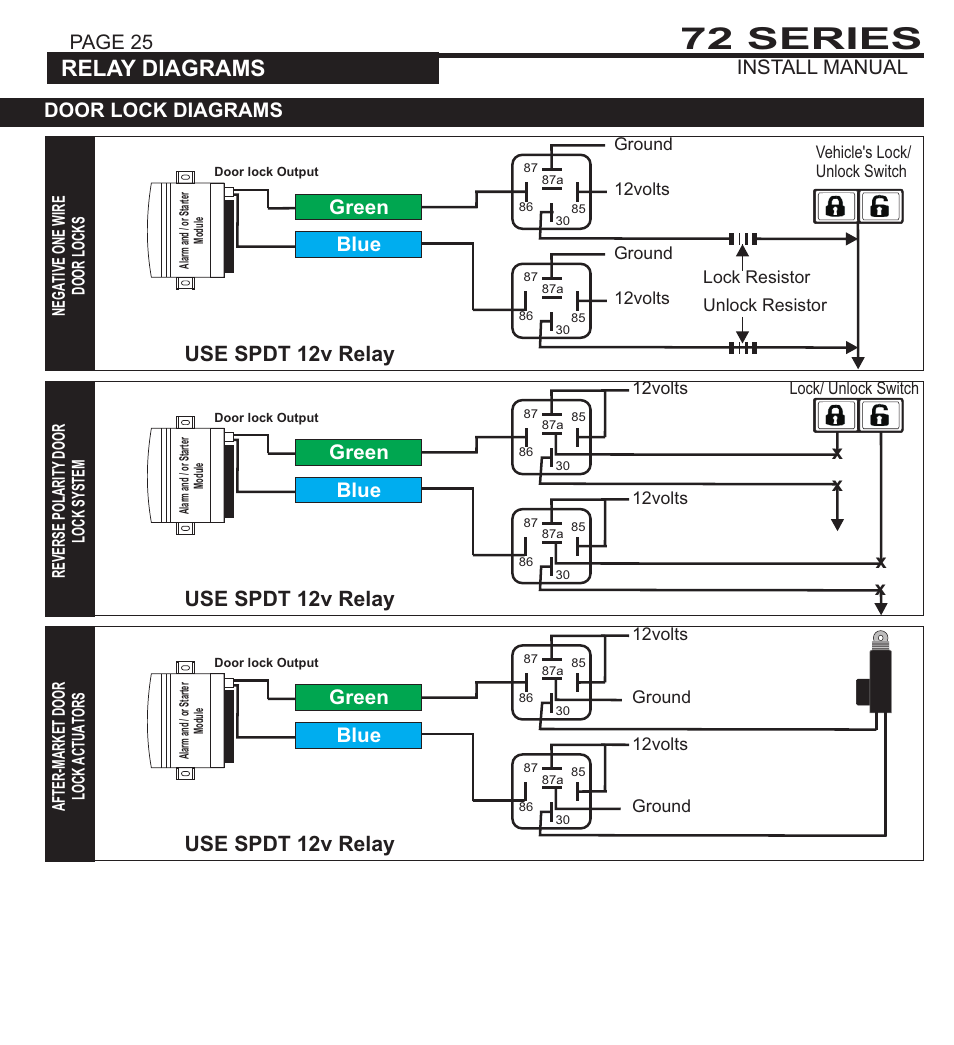

Page 25: Relay diagrams, Use spdt 12v relay, Door lock diagrams green, Page 24 install manual, Blue, Blue green, Page 25 install manual

72 series, Vp-1 inverter, System programming - menu 1 | Relay diagrams, Use spdt 12v relay, Door lock diagrams green, Page 24 install manual, Blue, Blue green, Page 25 install manual | Ultra Start 72 SERIES 3272 User Manual | Page 25 / 28 72 series, Vp-1 inverter, System programming - menu 1 | Relay diagrams, Use spdt 12v relay, Door lock diagrams green, Page 24 install manual, Blue, Blue green, Page 25 install manual | Ultra Start 72 SERIES 3272 User Manual | Page 25 / 28
