9. CONFIGURATION PARAMETERS

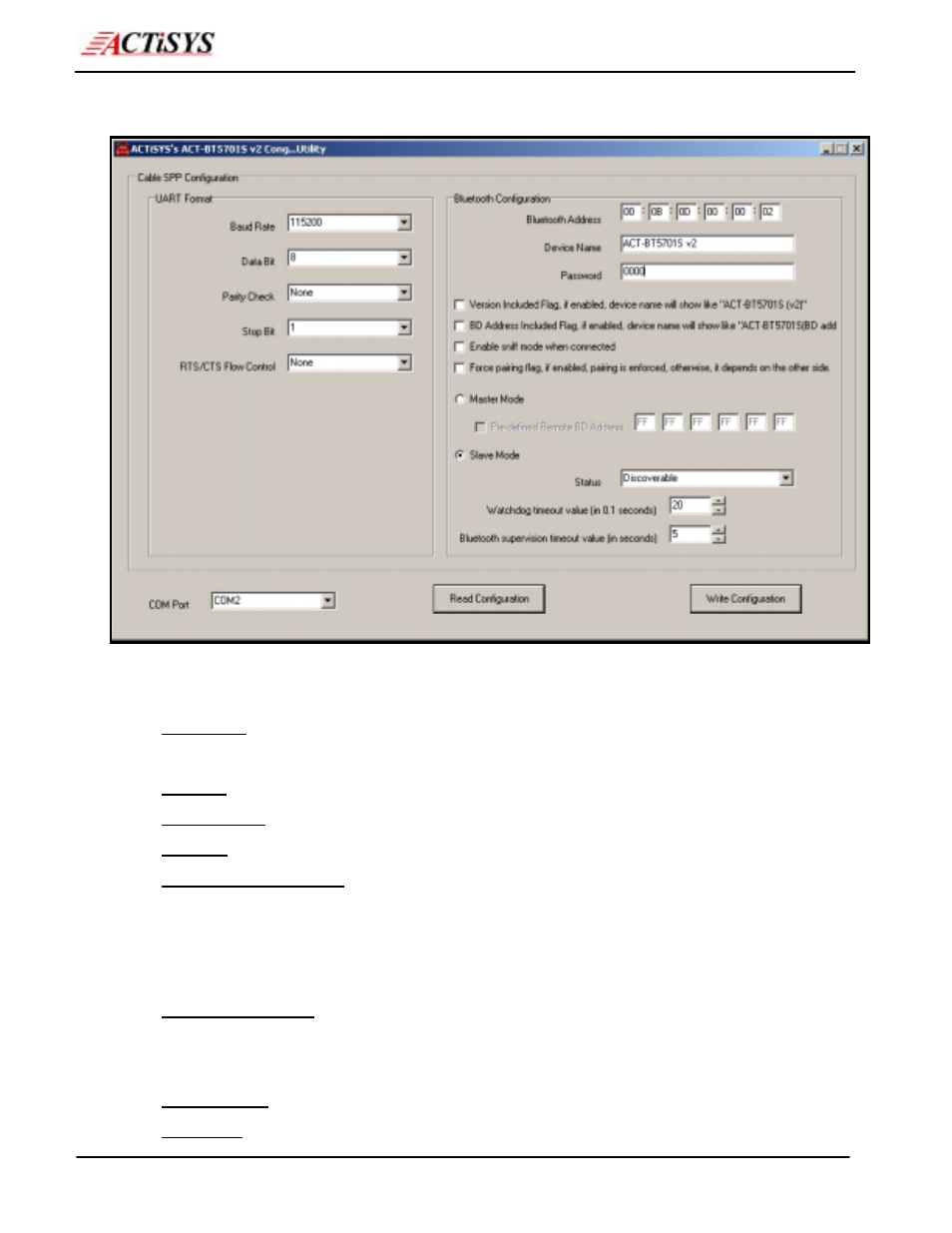

Figure 4: Configuration Parameters Window
9.1. UART
Format
• Baud Rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800,
921600 or 1843200 bps selectable.
• Data Bit: 5, 6, 7 and 8 data bits supported
• Parity Check: None, Odd or Even.
• Stop Bit: 1 or 2 stop bits.
• RTS/CTS Flow Control: None, or Enable
9.2. COM
Port
Select COM1, COM2 or any other COM port you have connected.
9.3. Bluetooth
Configuration
• Bluetooth Address: BD address is an unique 6 byte hexadecimal device identifier, where the
first 3 bytes of the address are assigned by IEEE, and the last 3 bytes are freely allocated by
the manufacturer. And the format is as (00: 0B: 00: 00: 00: 02).
• Device Name: Give any name you want to show. Maximum is 24 characters allowed.
• Password: It’s PIN code. Default is 000. You can leave it blank. Maximum length is 8 digits
