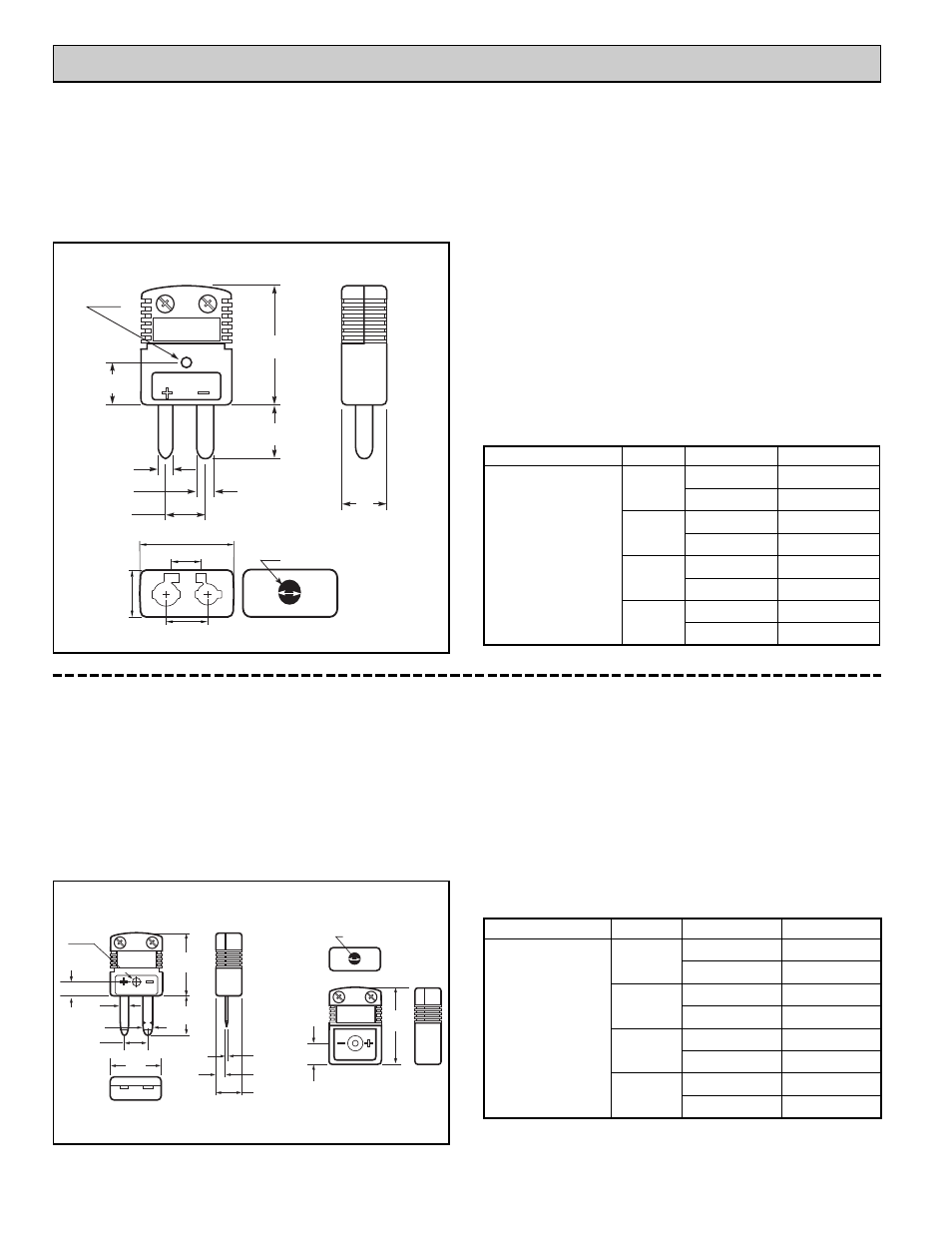

MODEL TMPCN - QUICK DISCONNECT STANDARD CONNECTORS
GENERAL DESCRIPTION
Standard Connectors are for use with the Standard Quick Disconnect TC
Probes. They are available in both male and female termination, and include a
“write on label” for easy identification. The female standard connector is a
universal connector, meaning it can be used to terminate male versions of both
the standard and miniature connector.
SPECIFICATIONS
1. CONNECTOR BODY MATERIAL: Glass Filled Nylon, for temperature
ranges of -29 to 220º C. (-20 to 428 °F)
2. CONNECTOR BODY COLOR: ANSI color coded
3. WIRE GAGE: Accepts stranded or solid wire up to 14 AWG
4. WIRE TERMINATION: Combination Phillips/Slot Screws
ORDERING INFORMATION
A
CCESSORIES
MODEL TMPCN - QUICK DISCONNECT MINIATURE CONNECTORS
GENERAL DESCRIPTION
Miniature Connectors are for use with the Miniature Quick Disconnect TC
Probes. They are available in both male and female termination, and include a
“write on label” for easy identification.
SPECIFICATIONS
1. CONNECTOR BODY MATERIAL: Glass Filled Nylon, for temperature
ranges of -29 to 220º C. (-20 to 428 °F)
2. CONNECTOR BODY COLOR: ANSI color coded
3. WIRE GAGE: Accepts stranded or solid wire up to 20 AWG
4. WIRE TERMINATION: Combination Phillips/Slot Screws
ORDERING INFORMATION
0.10 DIA.
0.16
0.19
0.44
0.47
1.31
0.59
0.50
(12.7)
(15.0)
(33.3)
(2.5)
(11.9)
(4.1)
(4.8)
(11.2)
FRONT & REAR VIEW OF FEMALE
MALE AND FEMALE HAVE
THE SAME BODY DIMENSIONS
0.31 (7.9)
1.0 (25.4)
0.44 (11.2)
0.5
(12.7)
0.22 (5.6) WIRE ACCESS
HOLE
DIMENSIONS In inches (mm)
0.10
(2.5) DIA.
0.19
(4.8)
0.09
(2.3)
0.13
(3.3)
0.31
(7.9)
0.66
(16.8)
0.13 (3.3)
0.31 (7.9)
0.50
(12.7)
0.81
(20.6)
0.194 (4.9) WIRE HOLE
(25.4)
0.28
(7.1)
1.00
0.03 (0.8)
DIMENSIONS In inches (mm)
DESCRIPTION TYPE TERMINATION PART NUMBER
STANDARD
CONNECTOR
K
MALE TMPCNS01
FEMALE TMPCNS02
T
MALE TMPCNS03
FEMALE TMPCNS04
E
MALE TMPCNS05
FEMALE TMPCNS06
J
MALE TMPCNS07
FEMALE TMPCNS08
DESCRIPTION TYPE TERMINATION PART NUMBER
MINIATURE
CONNECTOR
K
MALE TMPCNM01
FEMALE TMPCNM02
T
MALE TMPCNM03
FEMALE TMPCNM04
E
MALE TMPCNM05
FEMALE TMPCNM06
J
MALE TMPCNM07
FEMALE TMPCNM08
MALE
FEMALE
