The Add RCU dialog box (see “Add RCU Dialog Box” (page 104) ) allows you to add an RCU to
the selected CU of the connected MCU. To open the Add RCU dialog box, select the MCU&RCU
display on the RCU Operation window, select the desired CU in the tree, right-click the list, click
the RCU Operation command, click Add RCU command, and then click the Add RCU (Fibre)
command.

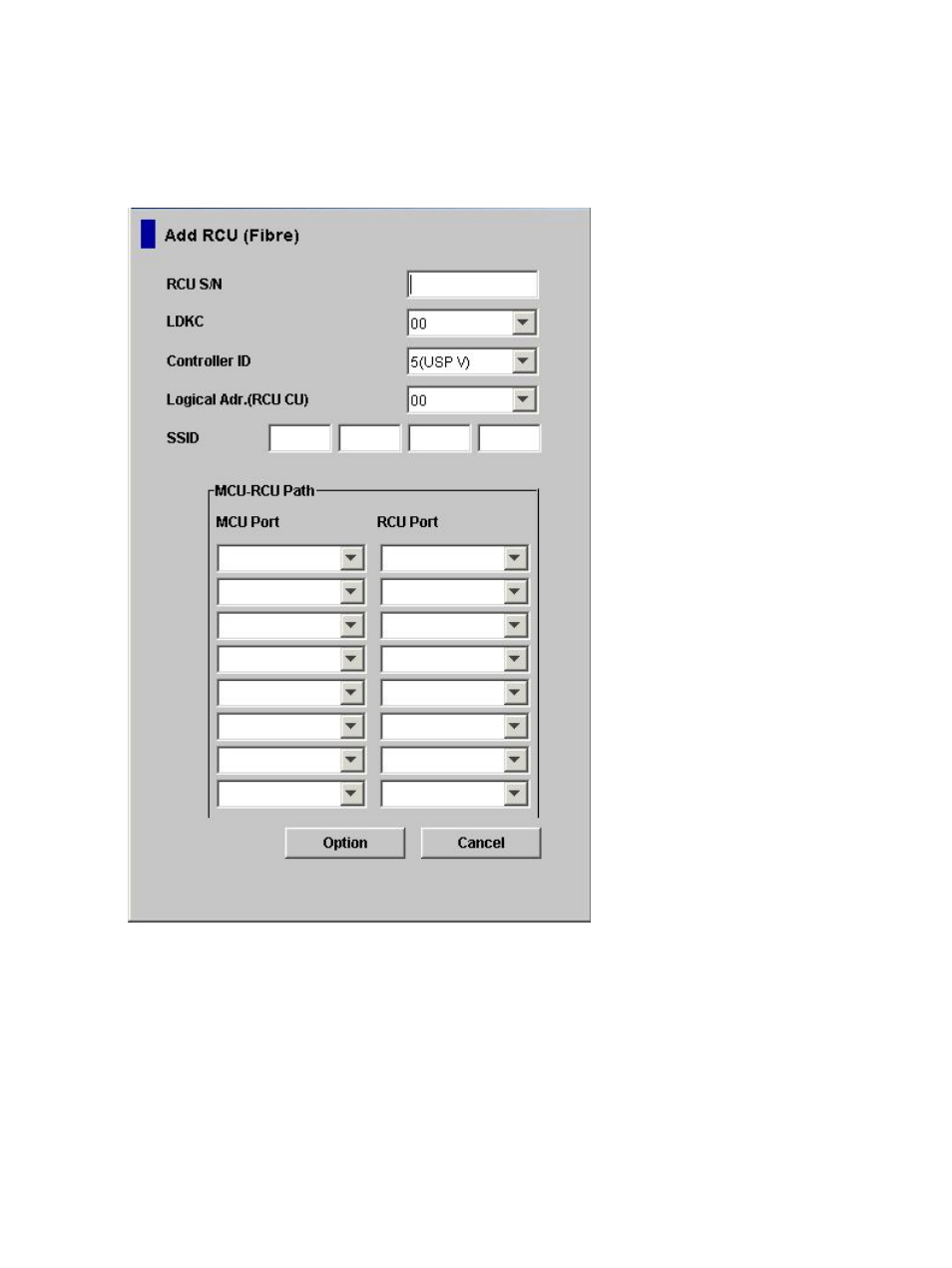

Figure 35 Add RCU Dialog Box
RCU S/N: allows you to enter the five-digit serial number of the RCU being added.
LDKC: allows you to enter the LDKC number which the RCU belongs to. Specify 00 or 01. You can
specify only 00 for the current microcode version.
Controller ID: allows you to select the controller ID (storage system family ID) of the RCU being
added from the drop-down list. The controller ID for an XP24000/XP20000 Disk Array is 5, the
controller ID for an XP12000/XP10000 Disk Array is 4, and the controller ID for an XP1024/XP128
Disk Array is 3.
