2.3 System Information and
Channel Selection
2.3.1 System information

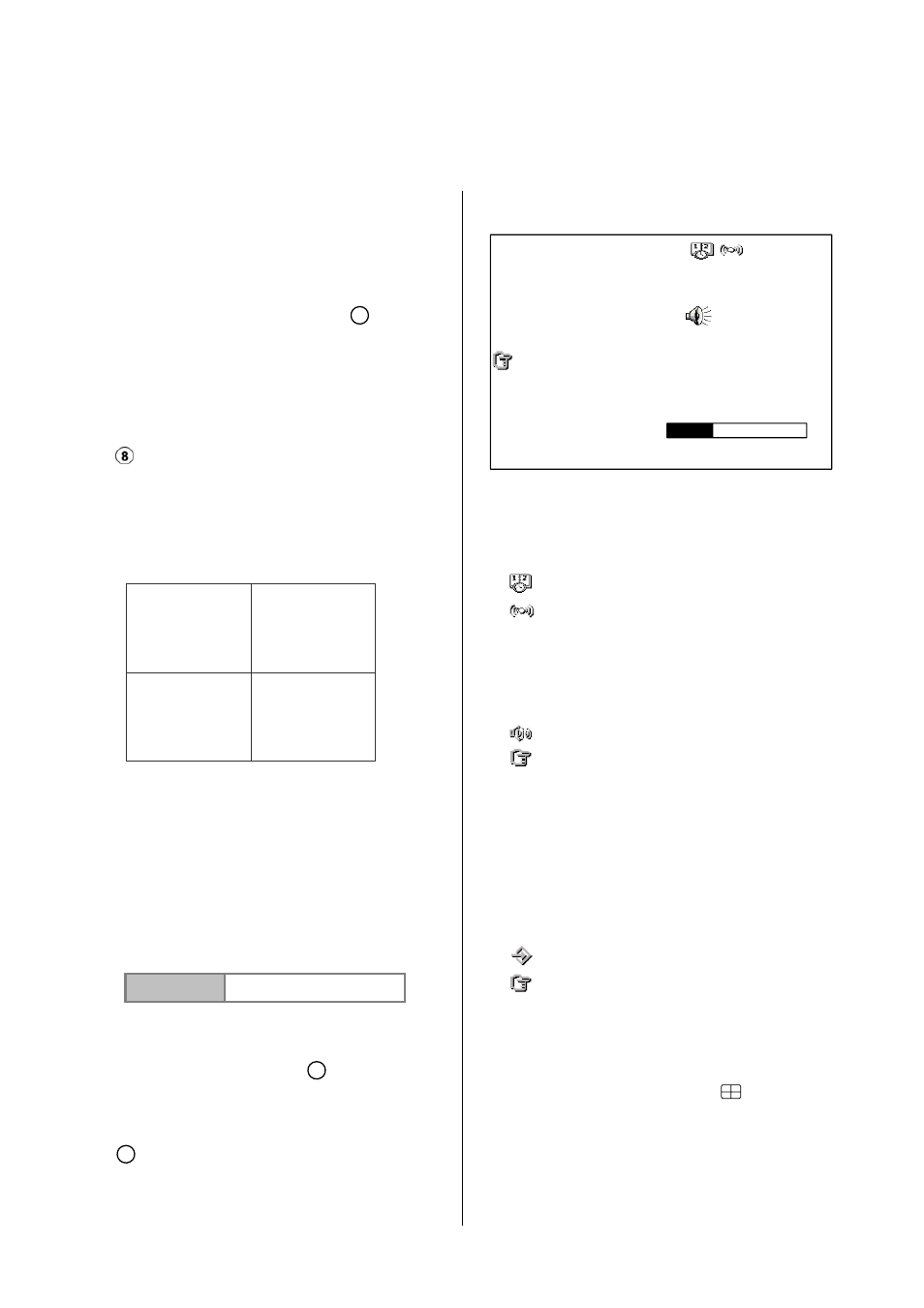

You can display system settings information as
shown in FIGURE 3.3 A below at any time by
pressing the Display button 8 . In the
playback mode, the recorded video information
is displayed. In the live or recording mode, the
Manual Recording information is displayed.
Each sequential press of the Display button
displays a different message detailed in the
following example. By default, the unit displays
time, date, and an indicating bar of capacity
status on a monitor as shown.
Default Display
CH1, CH2, CH3, CH4 are titles for the
corresponding channels, changeable in the
setup menu.
Capacity Status:
(Capacity Used) (Capacity Remaining)
01- 01-2005 12:00:00
(Date) (Time)
Press the Display button 8 once; the DVR
will display the following sample message plus
the default display. Press the Display button
8 again; the unit will not display any OSD
message. Press the button one more time to
go back to the default display .
FIGURE 3.3 A
200 K
(1+2: 59G): Total capacity of installed hard disk, 59
GB
.
(12.4 HR): Total 12.4 hour recording time available .
( ): Timer record activated
.
( ): Alarm record activated
.
(QUALITY: BEST): Record quality setting, BEST
.
(NTSC ): NTSC system
.
(RATE: 6 HR): Setting of Record time mode, 6 hours
.
(30 F/S): Record speed setting, 30 fields/sec
.
( ): Audio function activated
.
( ): Indicates which HDD is activated
.
( 200K ): The image file size
.
( HD ): Hard disk compartment
.
( SIZE 20G): The capacity of the installed hard disk
.
( REC ): Percentage of system recording
.
( PLAY ): Percentage of system playback
.
( IP : 192 . 168 . 1 . 90 ): Network IP Address
192.168.1.90
(
) : External signal
.
(
x
): Cannot operate now
.
2.3.2 Channel Selection
CH1, CH2, CH3, CH4, Quad(
), and the
Seq./Save button are used to select the video
channel and zoom in factor. The following table
shows the functions in a different mode.
1+2 :59G 12.4 HR
QUALITY : BEST
NTSC
RATE : 6HR
30 F/S
HD SIZE REC PLAY
1 20G 10.0% 0.1 %
2 39G 0.0% 0.0 %
IP : 192.168.1.90
10 / 01 / 2004 15:10:30
