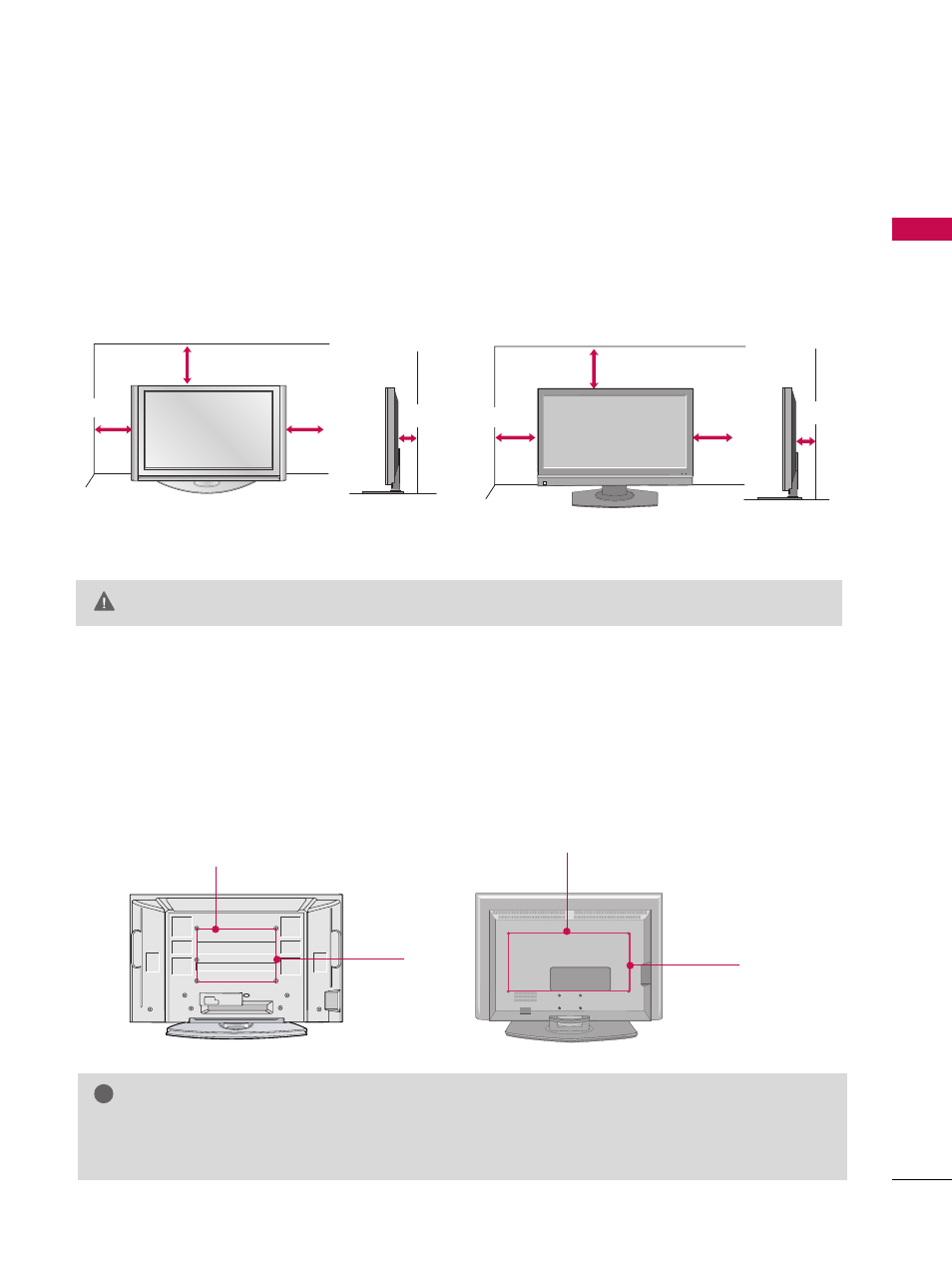

DESKTOP PEDESTAL INSTALLATION

For proper ventilation, allow a clearance of 4 inches on all four sides from the wall.

Ensure adequate ventilation by following the clearance recommendations.

CAUTION

Plasma TV Model

LCD TV Model

4 inches

This product accepts a VESA-compliant mounting interface pad. (optional)
There 4 threaded holes are available for attaching the bracket.

Screw length needed depends on the wall mount used. For further information, refer to the VESA
Wall Mounting Instruction Guide.

NOTE

Plasma TV Model

LCD TV Model

AV IN 2

MONO

AUDIO

VIDEO

S-VIDEO

USB

600 mm

400 mm

600 mm

(47LB5D, 47LC7DF, 52LB5D: 800 mm)
