30

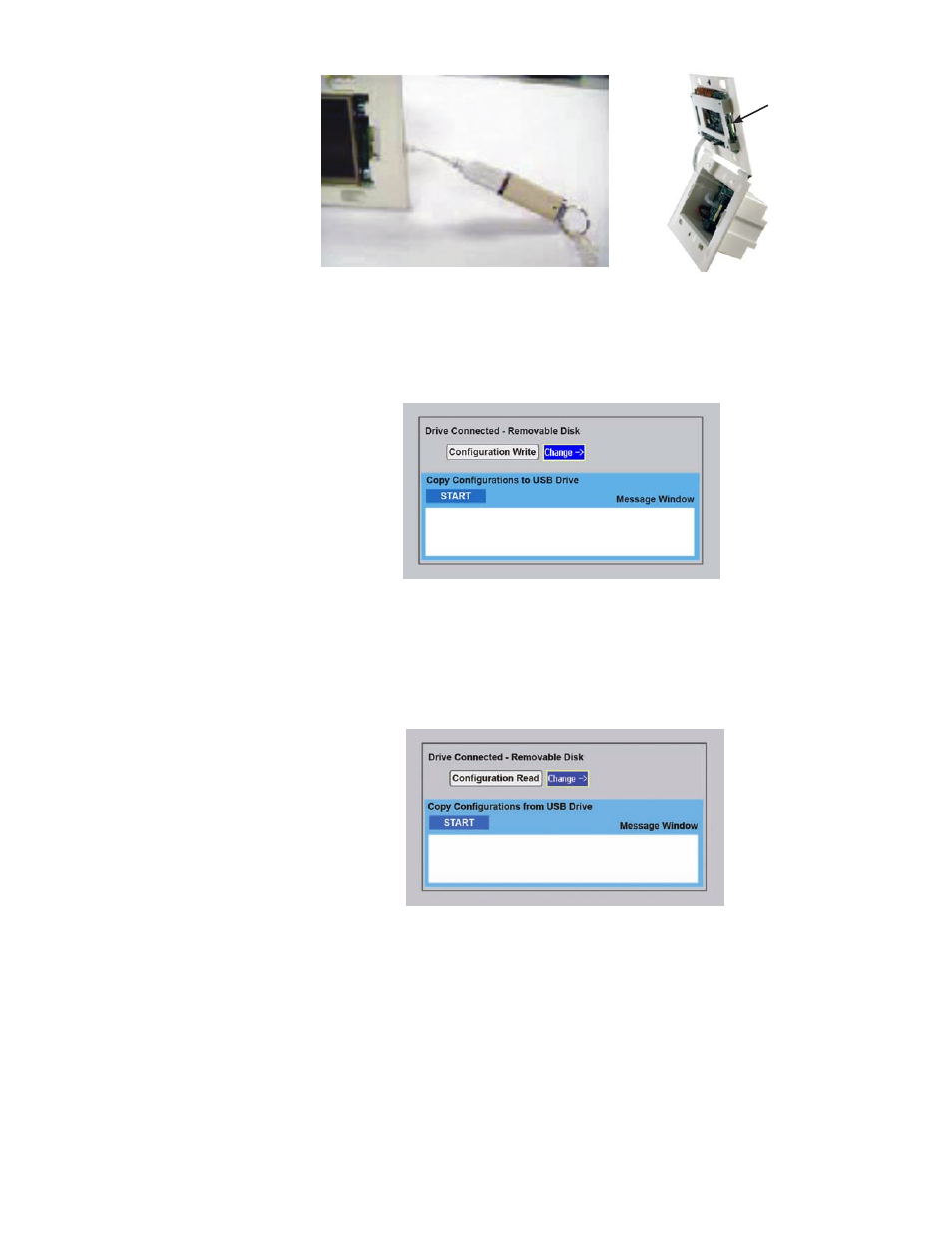

As soon as the thumb drive is connected to the SRCM it will be recognized and
bring up a Drive Connected menu.
• Select Configuration Write to transfer the master SRCM configuration from the
unit to the thumb drive.
• Select START to initiate the copy operation.
Remove the thumb drive and cable and move to the first “slave” unit to be config-
ured. With power applied to that unit, connect the thumb drive and cable. Select
Read and START to write the master configuration to the new slave unit.
A Write Process Successful message will appear if the configuration has been
written to memory. Review the various Menu screens of the slave unit and subse-
quent units to confirm the proper configuration is stored. In most cases the only
change that will be required to clone SRCM units is Primary and Secondary Room
labels that match the location of installation.
USB Configuration
Cloning
USB Port
