The 4-20 mA current version has only 4 switches.
7.0 MODEL 267 & 267MR PERFORMANCE SPECIFICATIONS
Accuracy RSS * (at constant temperature.) ±1.0% FS
Non-Linearity, BFSL ±0.98% FS
Hysteresis 0.2% FS
Non-Repeatability 0.1% FS
*RSS of Non-Linearity, Non-Repeatability and Hysteresis.
Thermal Effects
Compensated Range °F(°C) +40 to +150 (+5 to +65)
Zero/Span Shift %FS/°F(°C) 0.033 (0.06)
Maximum Line Pressure 10 psi
Overpressure 10 psi in positive or negative
direction
Warm-up Shift ±0.1% FS total
Position Effects
(Unit is factory calibrated at 0g effect in the vertical position)
Range Zero Offset (%FS/G)
0 to .1” WC 2.1
0 to 1” WC .22
0 to 5” WC .14
9

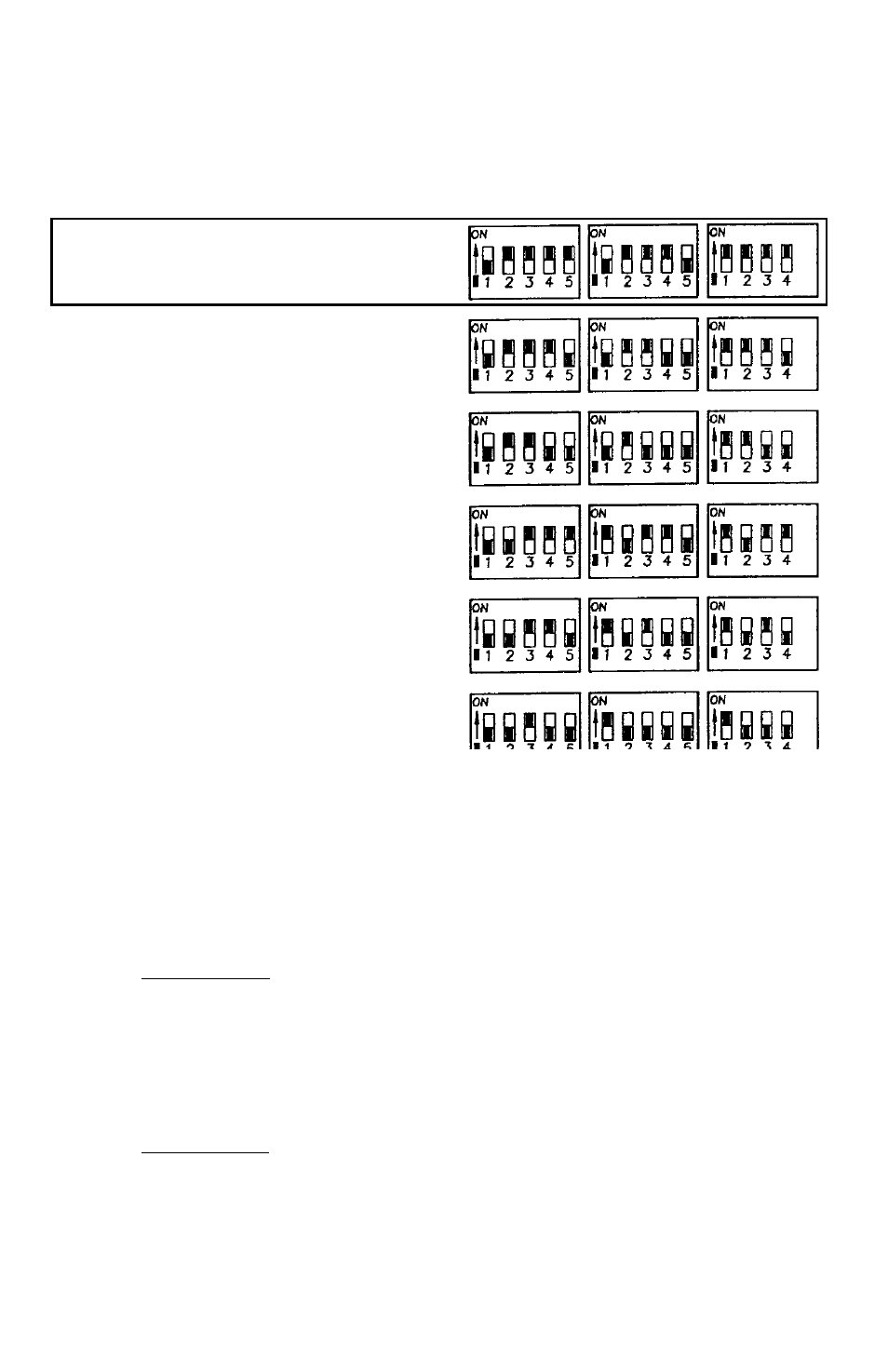

TABLE-2 RANGE SWITCHING INSTRUCTIONS FOR PASCAL RANGES
MR5 MR6 MR7 MR8 MR9 SWITCH SWITCH SWITCH
RANGE RANGE RANGE RANGE RANGE SETTINGS SETTINGS SETTINGS
0-5V 0-10V 4-20MA
OUTPUT OUTPUT OUTPUT
Factory Default Setting
0-25Pa 0-200Pa 0-1000Pa 0-2500Pa 0-7500Pa
0-100Pa 0-500Pa 0-1250Pa 0-3750Pa
0-50Pa 0-250Pa 0-625Pa 0-1875Pa
±
12.5Pa
±
100Pa
±
500Pa
±
1250Pa
±
3750Pa
±
50Pa
±
250Pa
±
625Pa
±
1875Pa
±
25Pa
±
125Pa
±
312Pa
±
937Pa
