INSTALLATION
Prerequisites
Installing a HART daughterboard into an M2000 has two requirements:
•
Firmware v1 10 or later
•
M2000 PCB serial number must indicate that the board was manufactured week 19 of Year 2011 or later
The PCB serial number is listed in the menus at Main Menu > Info/Help > Serial Number
The PCB serial number is of the following format: WWYYSSSS, where WW = Week, YY = Year
A label on the main board also indicates the week and year

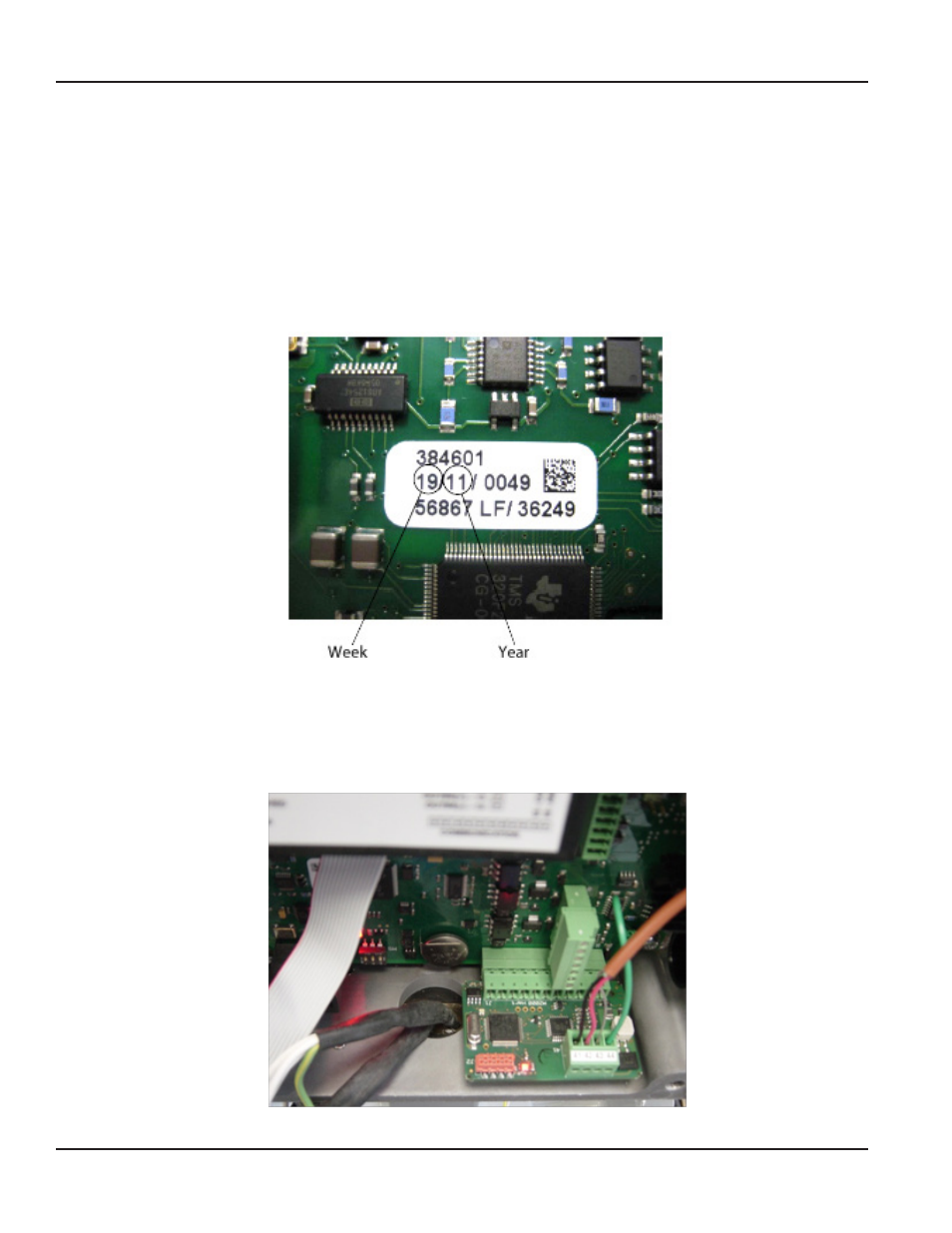

Figure 2: Main Board Label
Installing the Daughterboard
The daughterboard connects to the 11-pin connector labeled as COMMUNICATION on the main amplifier
Figure 3: Daughterboard Connection
M-Series® M2000 HART® Bi-Directional Communication Protocol Data Access
Page 6
December 2012
