Ba c – KEPCO RMW 300W Series Quick Start Guide User Manual
Page 2
2
228-1690
072710
KEPCO, INC. 131-38 SANFORD AVENUE FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000 FAX (718) 767-1102
http://www.kepcopower.com email: [email protected]

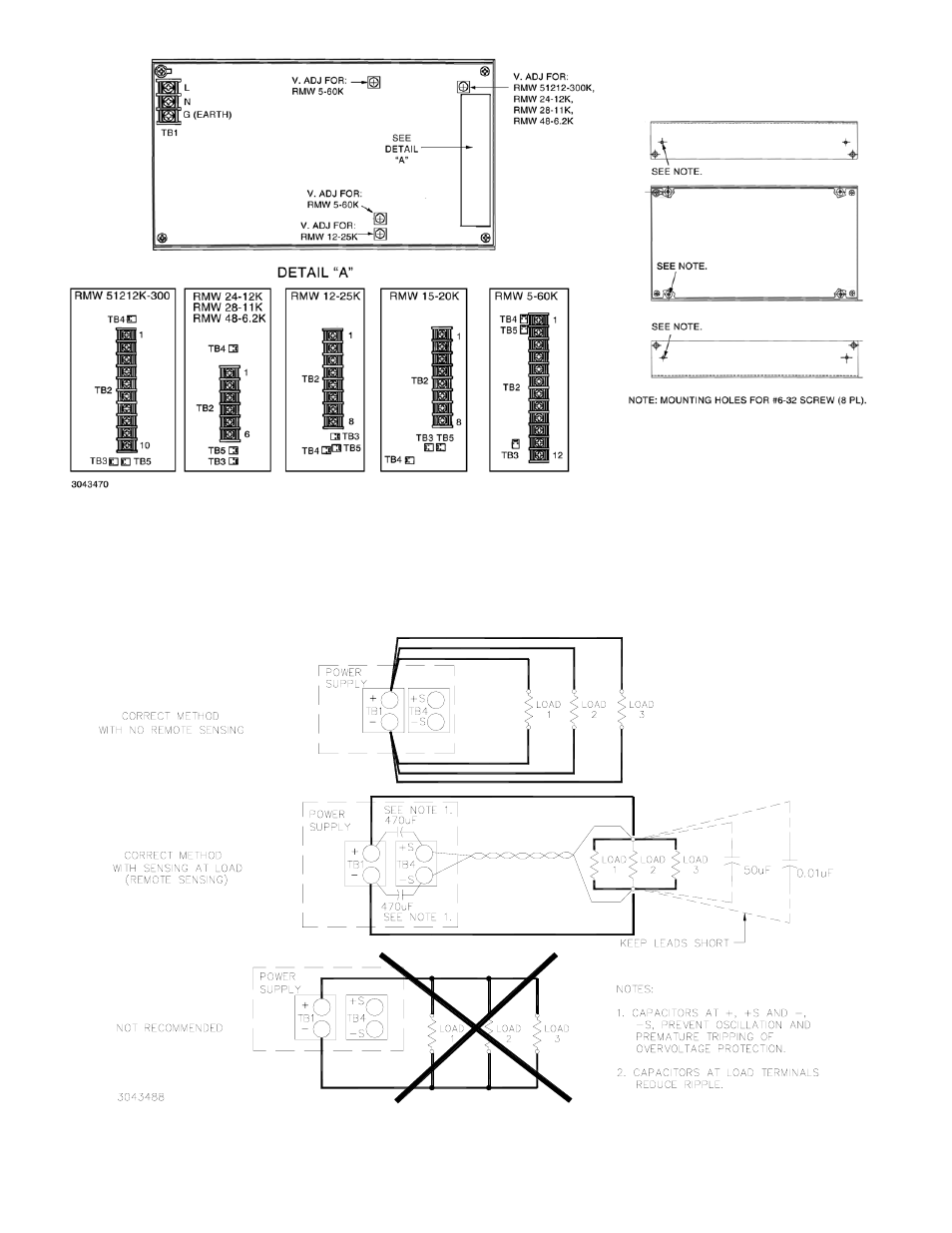

FIGURE 2. COMPONENT LOCATIONS
III — OPERATION
When output voltage is available, the output at TB5 is
available to drive an external LED and the +12V output at
TB3 is available to power an external cooling fan. The
Output Voltage Adjust trimmer (see Figure 2) allows
adjustment of the primary output voltage.
FIGURE 3. LOAD CONNECTIONS
B
A
C
