KEPCO KDN 24V Series Quick Start Guide User Manual
Series, Kepco, Single output 24v din rail power supplies

©2010, KEPCO, INC
1
Data subject to change without notice
228-1673 REV 1
KEPCO, INC. 131-38 SANFORD AVENUE FLUSHING, NY. 11355 U.S.A. TEL (718) 461-7000 FAX (718) 767-1102
http://www.kepcopower.com email: [email protected]
Q U I C K S T A R T G U I D E
KEPCO
An ISO 9001 Company.
KDN
Series
SINGLE OUTPUT
24V DIN RAIL POWER SUPPLIES
I — INTRODUCTION
SCOPE OF MANUAL.
This manual contains
instructions for installation and operation of the Kepco
KDN Series of RoHS (Reduction of Hazardous Sub-
stances) compliant 24V DIN Rail Power Supplies. All
power supply features plus full specifications are
listed in the KDN Series Operator Manual that can be
downloaded from the Kepco web site at
www.kepcopower.com/support/opmanls.htm#kdn
DESCRIPTION.
The Kepco KDN Series of 24V DIN
Rail Power Supplies come in three sizes rated at 5A,
10A and 20A (see Figure 1). Power Factor Correction
(PFC) is included in all models.
Units may be operated with a nominal 100V a-c to
240V a-c (input voltage range 90 to 264 Va-c), 50-60
Hz (input frequency range 47-63Hz). Overvoltage and
overcurrent protection is provided. Current limiting
with automatic recovery from short circuit is featured.
Units are convection cooled.

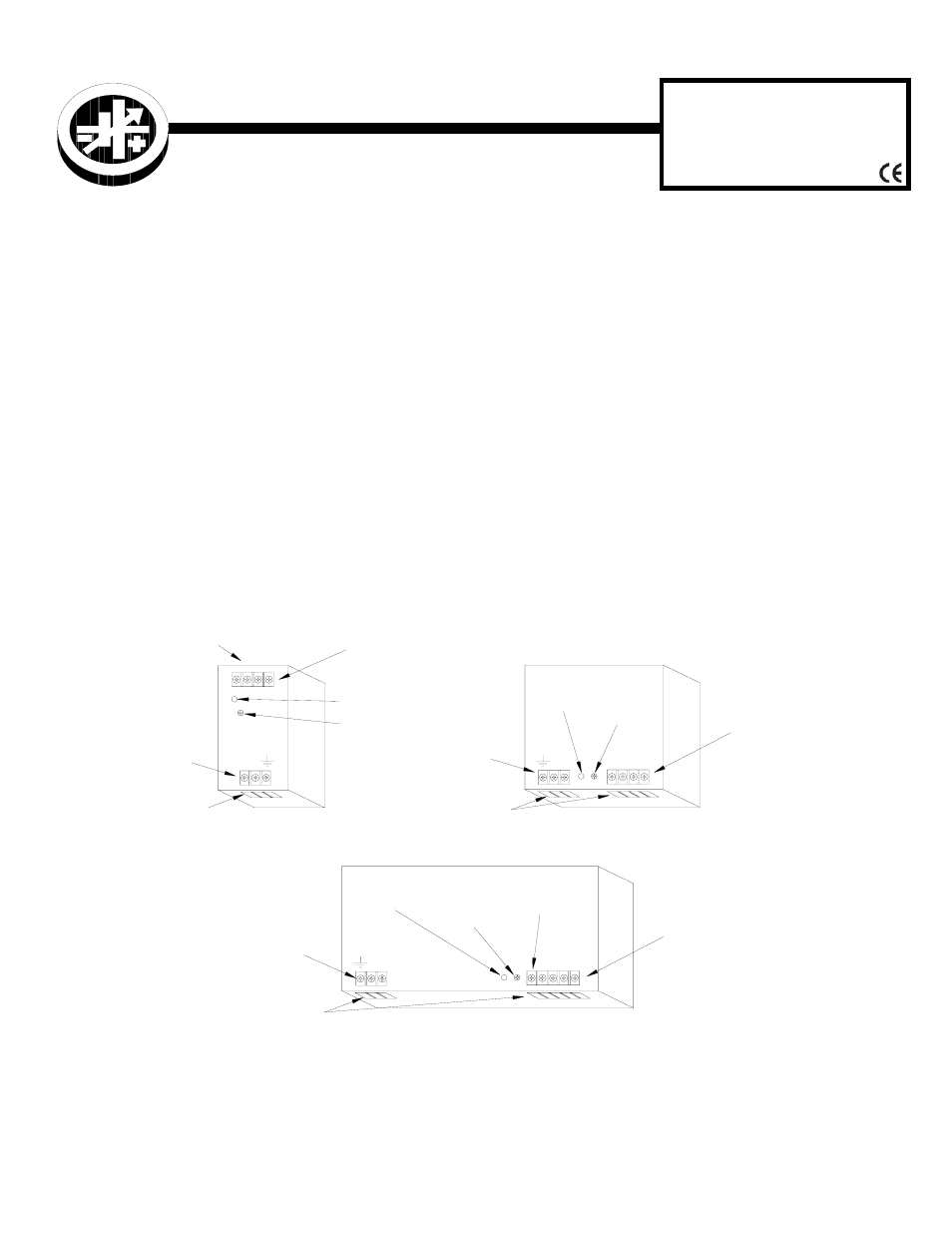

FIGURE 1. COMPONENT LOCATIONS
OUTPUT
VOLTAGE
ADJUST
PWR
OK
INSERT
WIRES
+
+
AC
INPUT
-
-
INSERT
WIRES
- -
+ +
PWR
OK
OUTPUT
VOLTAGE
ADJUST
AC
INPUT
POWER
SHARE
AC
INPUT
- -
+ +
PWR OK
OUTPUT
VOLTAGE
ADJUST
INSERT
WIRES
INSERT
WIRES
DC
OUTPUT
DC
OUTPUT
DC
OUTPUT
3043403
N L
L N
L
N
KDN 24-5
KDN 24-10
KDN 24-20
