INSTALLATION
Screen Size

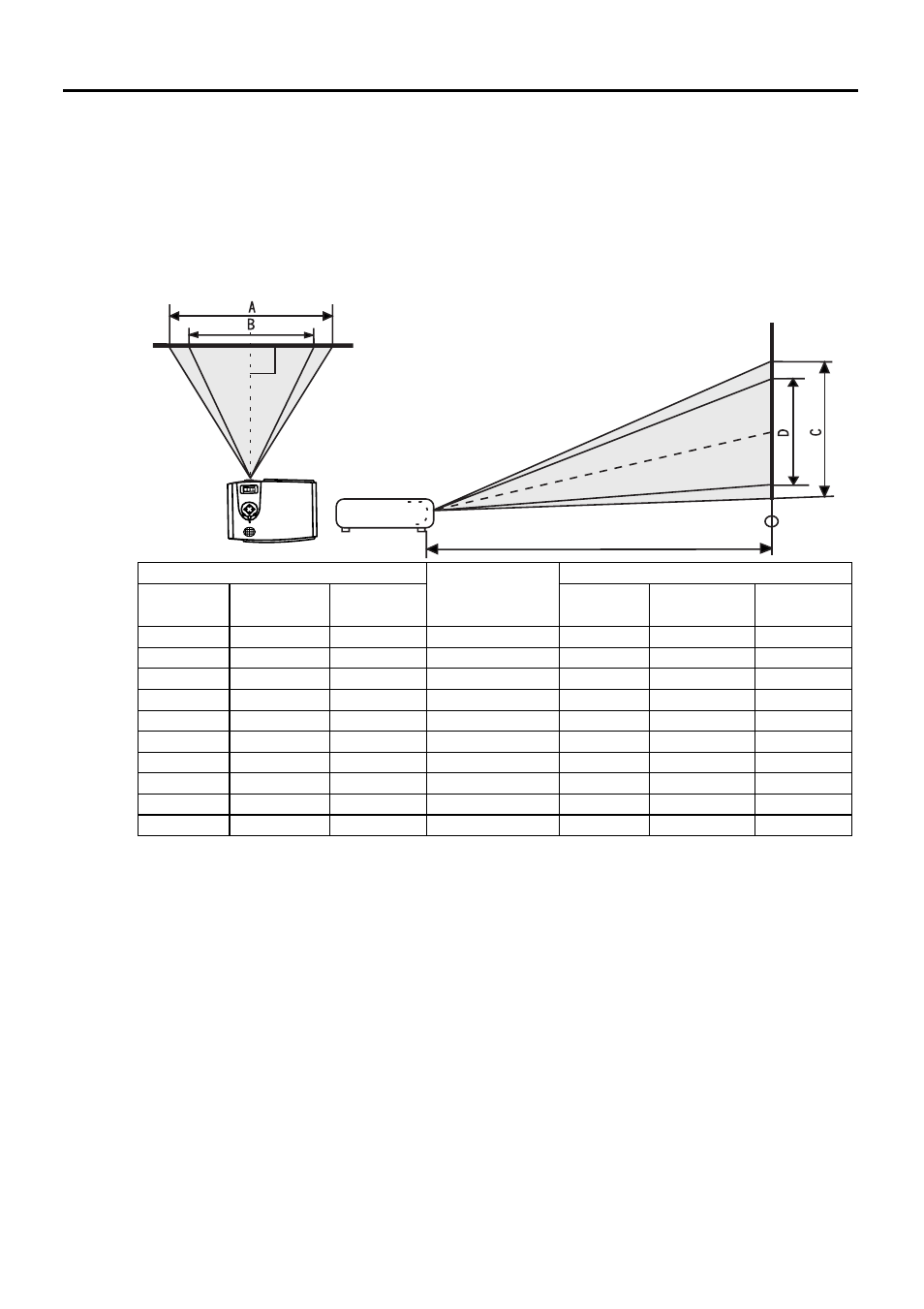

Place the projector at the required distance from the screen according to the desired
picture size (see the table below).
Connecting to Various Equipment
HDTV description
The projector is capable of displaying various High Definition TV display modes. Some
of these sources are:
Most of these sources will provide an analog component video output, a standard VGA
output, or a YPBPR (default) format.
The projector is capable of accepting HDTV data through a YP B P R connector. Use a
HDTV cable that came with your projector to display HDTV images.
Screen Size (Max.)
L. Projection
distance (cm)
Screen Size (Min.)
Diagonal
(in)
A. Width
(cm)
C. Height
(cm)
Diagonal
(in)
B. Width
(cm)
D. Height
(cm)
30.4 61.8 46.3 100 24.9 50.7 38.0
60.8 123.65 92.7 200 49.9 101.3 76.0
91.2 185.3 138.9 300 74.7 151.9 113.9
121.5 247.0 185.2 400 99.7 202.5 151.9
151.9 308.7 231.6 500 124.6 253.2 189.9
182.3 370.5 277.9 600 149.5 303.8 227.9
213.1 432.2 324.18 700 174.6 354.4 266.2
243.1 494.0 370.5 800 199.4 405.1 303.8
273.5 555.7 416.7 900 224.3 455.7 341.8
303.9 617.5 463.11 1000 249.2 506.3 379.8
L Projection Distance
• Digital-VHS (D-VHS) player • DVD player
• Satellite Dish HDTV receiver • DTV tuners
