FURIOUS

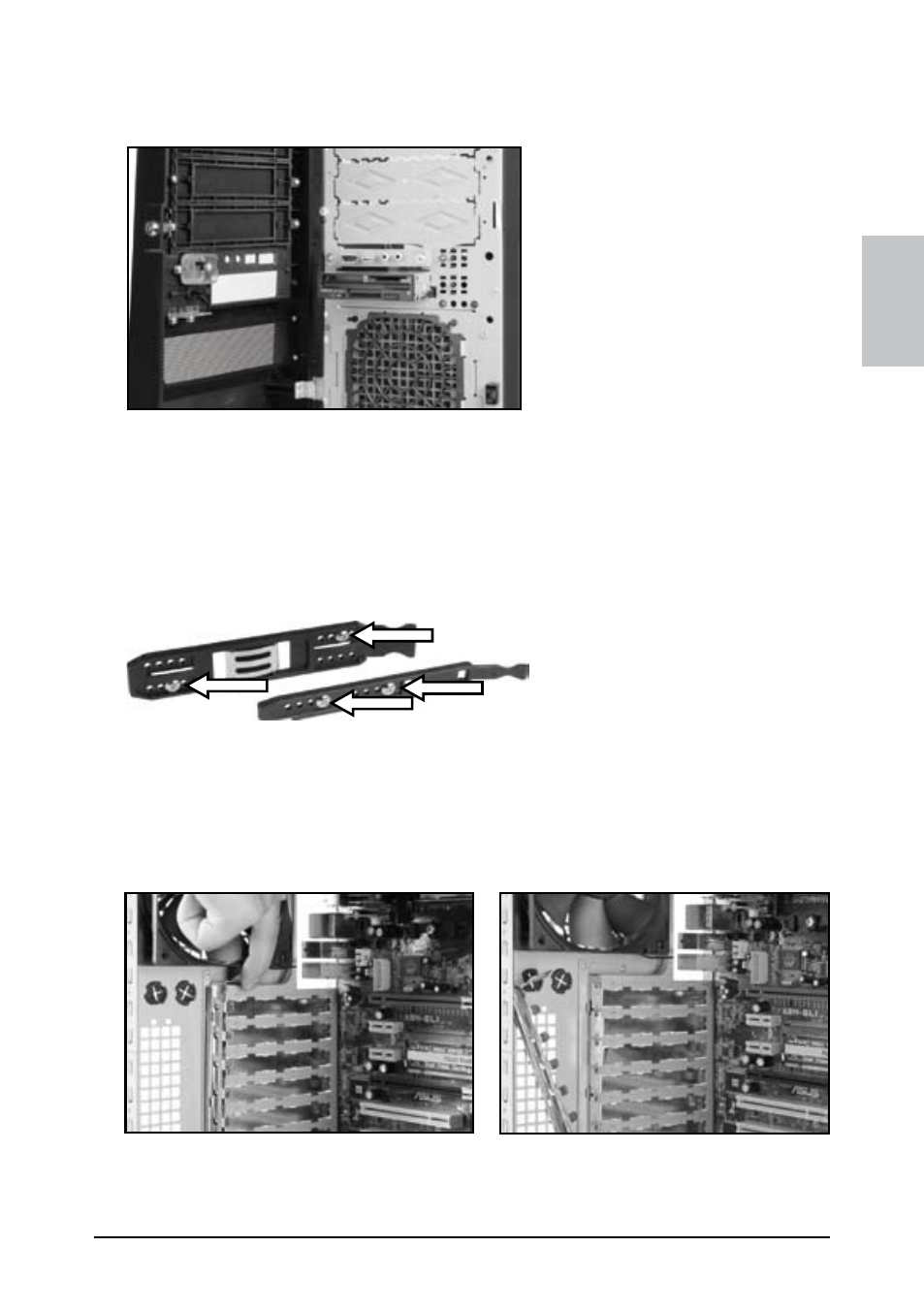

5. Slide the 3.5" device with attached mounting rails into the case’s drive bay until they
lock (fig. 18).

fig. 18

6. Connect the 3.5" device to the power supply and the mainboard and close the case’s
front bezel.

Note:
In case the installed device is not flush with the front bezel, you can adjust the
mounting rail’s retaining pins.

9. Installation of an add-on card

1. Unlock the fixation clip (pull upwards), take it away and remove the slot bezel (fig. 19
and 20).



fig. 19

fig. 20

ENGLISH

30
