Brocade Access Gateway Administrator's Guide (Supporting Fabric OS v7.3.0) User Manual
Page 71
Ports F_1 and F_2 are mapped to N_1 and continue routing to N_3. Ports F_3 and F_4, which were
originally mapped to N_2, are disabled and rerouted to N_2, and then enabled.

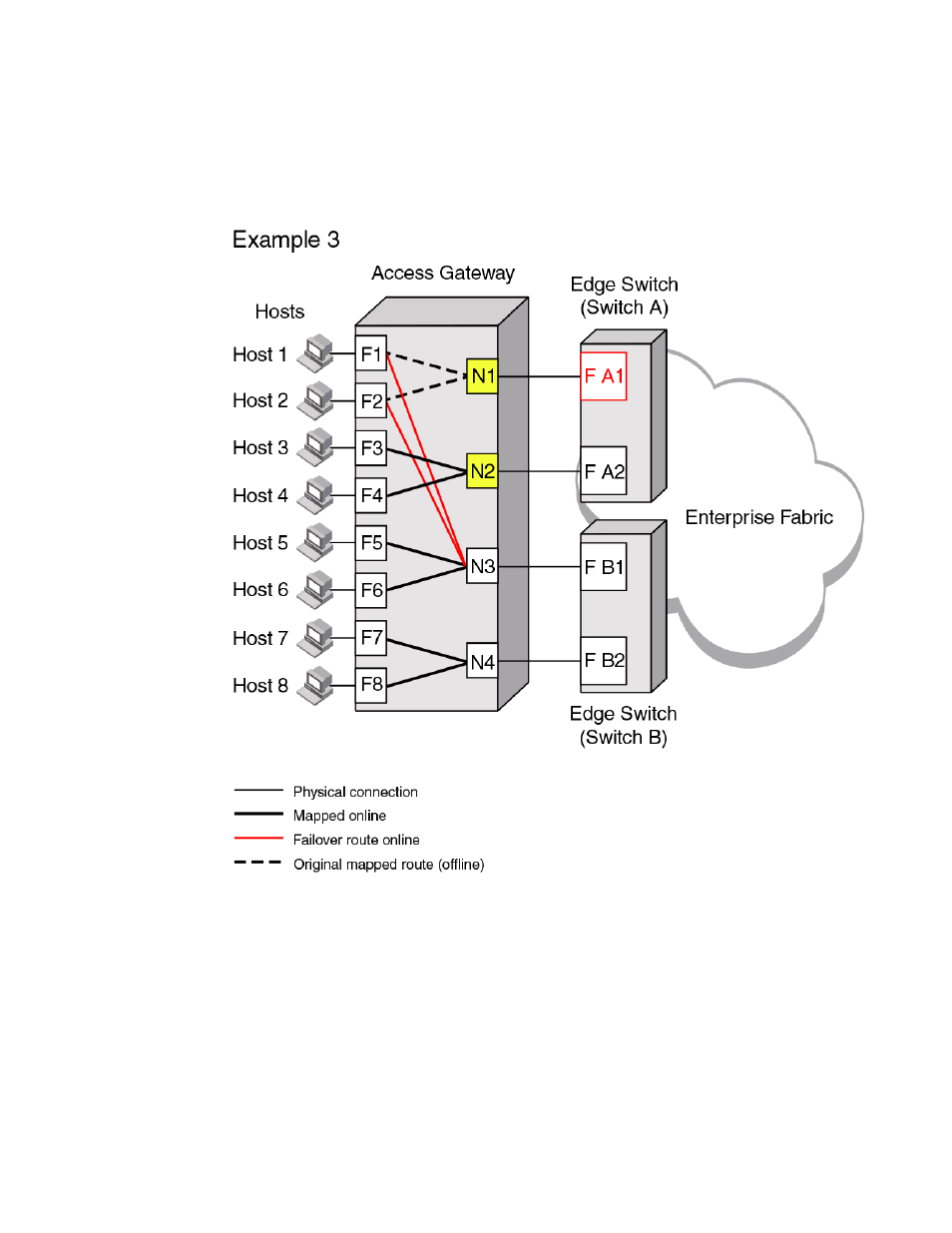

FIGURE 12 Failback behavior
Enabling and disabling the Failback policy on an N_Port
Use the following steps to enable or disable the Failback policy on N_Ports.
1.
Connect to the switch and log in using an account assigned to the admin role.
2.
Enter the ag --failbackshow n_portnumber command to display the failback setting.
switch:admin> ag --failbackshow 13
Failback on N_Port 13 is not supported
3.
Use the following commands to enable or disable the Failback policy:
Enabling and disabling the Failback policy on an N_Port
Access Gateway Administrator's Guide
69
53-1003126-01
